PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
250R080UPTC RESET FUSE 60V 80MA RADIAL |
181 | 0.85 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Active | Polymeric | 60V (250V Int) | 80 mA | 160 mA | 3 A | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.228" Dia x 0.181" T (5.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.201" (5.10mm) |
|
PTSLR12106V350PTC RESET FUSE 6V 3.5A 1210 |
2,325 | 0.66 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 7 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
PTR030V0400-TRPTC RESET FUSE 30V 4A RADIAL |
973 | 0.75 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.197" (5.00mm) |
|
16R500GUPTC RESET FUSE 16V 5A RADIAL |
624 | 0.70 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|

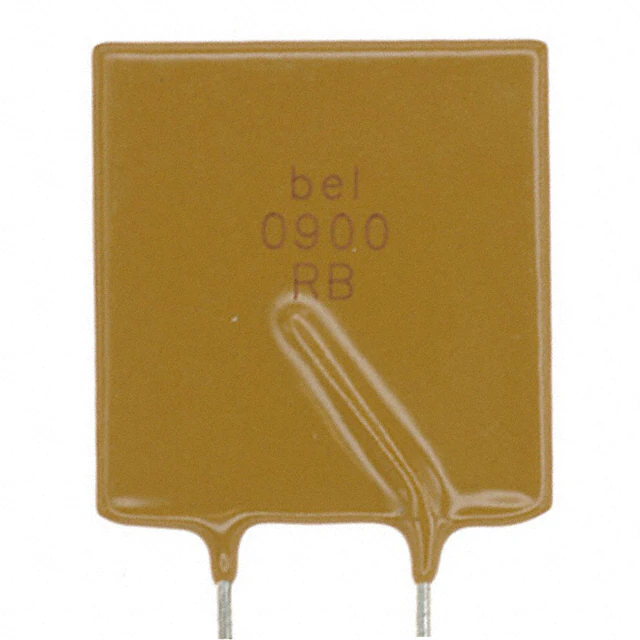

0ZRB0900FF1APTC RESET FUSE 30V 9A RADIAL |
1,000 | 0.80 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 9 A | 18 A | 40 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.169" (29.70mm) | - | 0.402" (10.20mm) |
|

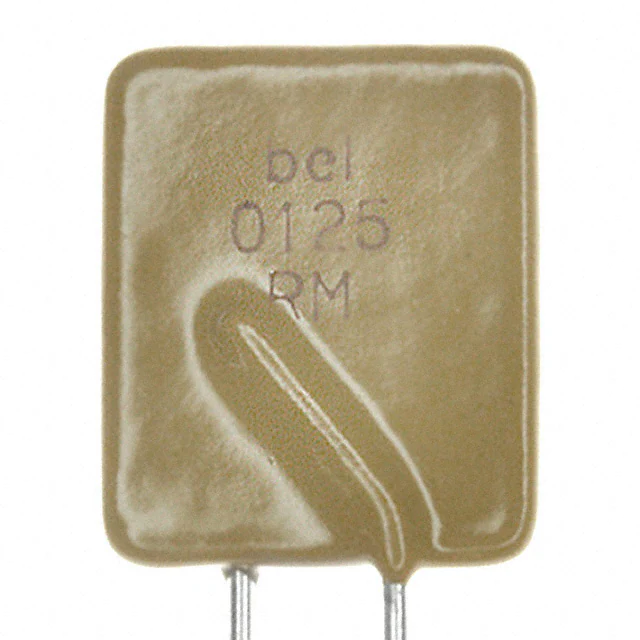

0ZRM0125FF1APTC RESET FUSE 120V 1.25A RADIAL |
913 | 0.83 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.25 A | 2.5 A | 12.5 A | 20 s | 110 mOhms | 330 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
MF-LR450PTC RESET FUSE 16V 4.5A STRAP |
729 | 0.87 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 16V | 4.5 A | 8.9 A | 100 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.402" W (25.00mm x 10.21mm) | - | 0.039" (1.00mm) | - |
|
CMF-RL55A-10-0PTC RESET FUSE 220V 50MA RADIAL |
513 | 0.81 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 50 mA | 100 mA | 3 A | 100 ms | - | - | 55 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
|
RGEF800KPTC RESET FUSE 16V 8A RADIAL |
362 | 0.91 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.823" (20.90mm) | - | 0.199" (5.05mm) |
|
RUEF600KPTC RESET FUSE 30V 6A RADIAL |
225 | 0.85 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.032" (26.20mm) | - | 0.400" (10.15mm) |
|
TRF600-150-RBPTC RESET FUSE 250V 150MA RADIAL |
123 | 1.27 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
MF-RHT600-0PTC RESET FUSE 16V 6A RADIAL |
748 | 0.90 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 21.5 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|
RXEF250KPTC RESET FUSE 72V 2.5A RADIAL |
722 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.785" Dia x 0.118" T (19.93mm x 3.00mm) | 1.032" (26.20mm) | - | 0.400" (10.15mm) |
|
PTCCL05H760HBEPTC RESET FUSE 265V 76MA RADIAL |
610 | 1.37 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 76 mA | 115 mA | 550 mA | - | - | - | 85 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.217" T (5.00mm x 5.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
0ZRP0400FF1APTC RESET FUSE 60V 4A RADIAL |
338 | 0.84 |
|
Datasheet |
Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 4 A | 8 A | 40 A | 24 s | 14 mOhms | 60 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.142" W (21.00mm x 3.60mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
AHRF650PTC RESET FUSE 16V 6.5A RADIAL |
153 | 1.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 6.5 A | 7 A | 100 A | 7 s | 9 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|

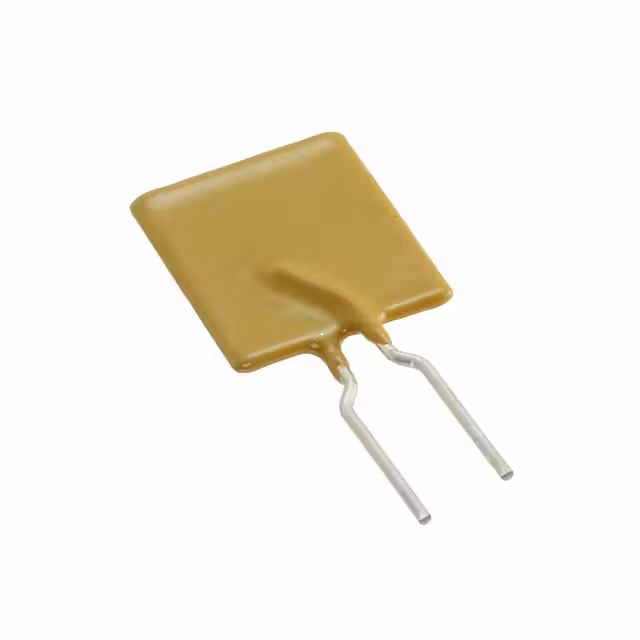

RHEF700PTC RESET FUSE 16V 7A RADIAL |
280 | 0.93 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 7 A | 13 A | 100 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.199" (5.05mm) |
|
PTSLR08056V075PTC RESET FUSE 6V 750MA 0805 |
726 | 0.78 |
|
Datasheet |
0805 (2012 Metric), Concave | PTSLR0805 | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 50 A | 200 ms | 40 mOhms | 160 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.028" (0.70mm) | - |
|

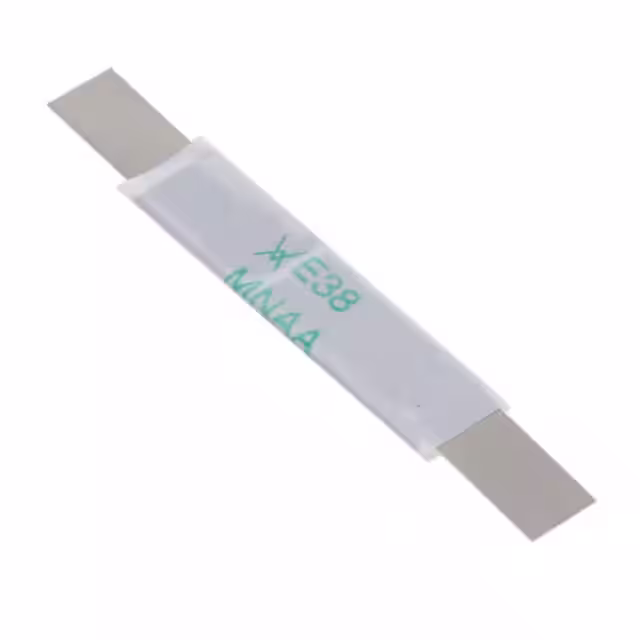

LR4-380XFPTC RESET FUSE 15V 3.8A STRAP |
598 | 1.05 |
|
Datasheet |
Strap | PolySwitch®, LR4 | Bulk | Active | Polymeric | 15V | 3.8 A | 8.3 A | 100 A | 5 s | 13 mOhms | 37 mOhms | - | - | - | - | - | User Defined | 1.339" L x 0.205" W (34.00mm x 5.20mm) | - | 0.039" (1.00mm) | - |
|
RHEF750PTC RESET FUSE 16V 7.5A RADIAL |
500 | 0.96 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.199" (5.05mm) |
