PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FRG400-16FRESETTABLE FUSE - PPTC RADIAL LE |
600 | 0.30 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 4 A | 6.8 A | 100 A | 3.5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
FRU250-30FRESETTABLE FUSE - PPTC RADIAL LE |
300 | 0.30 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 2.5 A | 5 A | 100 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
FRU300-30FRESETTABLE FUSE - PPTC RADIAL LE |
340 | 0.31 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 3 A | 6 A | 100 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.681" (17.30mm) | - | 0.201" (5.10mm) |
|
FRV012-240FRESETTABLE FUSE - PPTC RADIAL LE |
990 | 0.33 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 120 mA | 300 mA | 1.2 A | 15 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia (8.30mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
FSMD100-60-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
1,000 | 0.34 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 60V | 1.1 A | 2.2 A | 100 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
FSMD330-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
900 | 0.34 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 24V | 3.3 A | 5.5 A | 100 A | 20 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
MF-USML230-2PTC RESET FUSE 6V 2.3A 1210 |
4,074 | 0.39 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.3 A | 4.6 A | 50 A | 3.5 s | 4.5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
MF-RX110-0-99PTC RESET FUSE 60V 1.1A RADIAL |
6,304 | 0.38 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Bulk | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.662" (16.84mm) | - | 0.201" (5.10mm) |
|

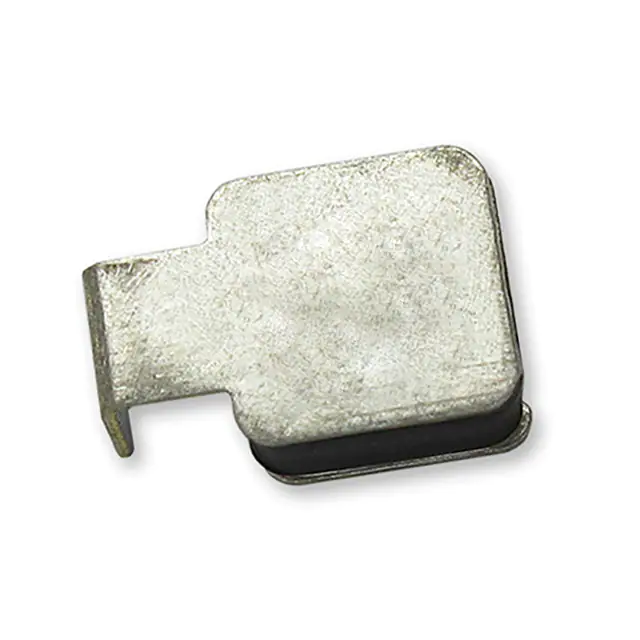

TSL250-080F-B-0.5-2PTC RESET FUSE 80V 80MA 2SMD |
743 | 1.00 |
|
Datasheet |
2-SMD | PolySwitch®, TSL250 | Tape & Reel (TR) | Obsolete | Polymeric | 80V (250V Int) | 80 mA | 240 mA | 3 A | 1.6 s | 5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.287" L x 0.199" W (7.30mm x 5.05mm) | - | 0.146" (3.70mm) | - |
|
|
FRV025-240FRESETTABLE FUSE - PPTC RADIAL LE |
490 | 0.41 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
|
|
FRG800-16FRESETTABLE FUSE - PPTC RADIAL LE |
380 | 0.43 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 8 A | 13.6 A | 100 A | 9 s | 5 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
|
FRX250-90FRESETTABLE FUSE - PPTC RADIAL LE |
290 | 0.43 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" Dia (21.30mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
FRU500-30FRESETTABLE FUSE - PPTC RADIAL LE |
380 | 0.44 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
FRU600-30FRESETTABLE FUSE - PPTC RADIAL LE |
300 | 0.46 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
RXEF017-APPTC RESET FUSE 60V 170MA RADIAL |
250 | 0.45 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|

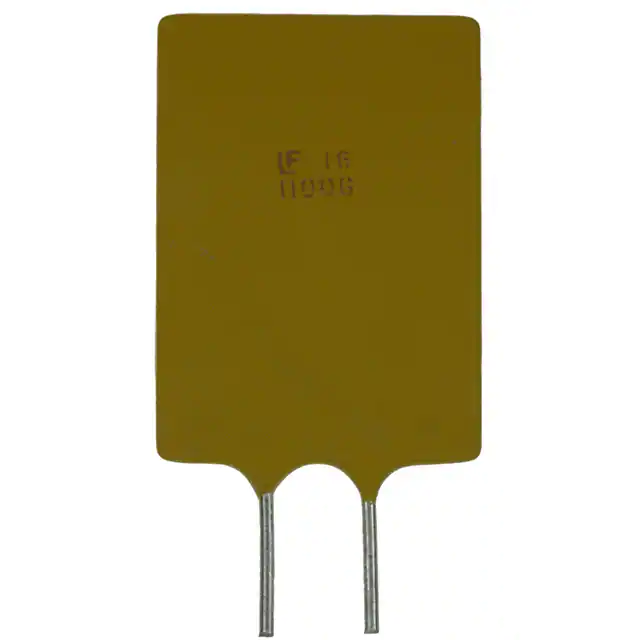

16R1100GFPTC RESET FUSE 16V 11A RADIAL |
400 | 0.48 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Obsolete | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
|
FRG900-16FRESETTABLE FUSE - PPTC RADIAL LE |
400 | 0.50 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 9 A | 15.3 A | 100 A | 12 s | 4 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
FRG1000-16FRESETTABLE FUSE - PPTC RADIAL LE |
280 | 0.50 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 10 A | 17 A | 100 A | 12.5 s | 3 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
RXEF010-APPTC RESET FUSE 60V 100MA RADIAL |
1,132 | 0.45 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
PTR016V1200-TRPTC RESET FUSE 16V 12A RADIAL |
9,300 | 0.46 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.102" (28.00mm) | - | 0.394" (10.00mm) |
