PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVR025S-2PTC RESET FUSE 240V 250MA RADIAL |
6,489 | 0.84 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.200" (5.08mm) |
|
MF-RX375/72-0PTC RESET FUSE 72V 3.75A RADIAL |
8,824 | 0.81 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.926" L x 0.122" W (23.51mm x 3.10mm) | 1.161" (29.50mm) | - | 0.402" (10.20mm) |
|
B59985C0120A070PTC RESET FUSE 30V 250MA RADIAL |
6,655 | 1.33 |
|
Datasheet |
Radial, Disc | B59985 | Bulk | Active | Ceramic | 30V | 250 mA | 500 mA | 1 A | - | - | - | 4.6 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
0805L020/24YRPOLYSWITCH RESETTABLE PPTC |
4,803 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 24V | 200 mA | 500 mA | 100 A | 500 ms | 500 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
B59890C0080A070PTC RESET FUSE 265V 15MA RADIAL |
2,052 | 1.00 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 15 mA | 40 mA | 200 mA | - | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.197" T (4.00mm x 5.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
MF-NSML200/12-2PTC RESET FUSE 12V 2A 1206 |
9,850 | 0.94 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 2 A | 4 A | 50 A | 5 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
RGEF1000-2PTC RESET FUSE 16V 10A RADIAL |
9,095 | 1.10 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.098" W (16.50mm x 2.50mm) | 0.992" (25.20mm) | - | 0.199" (5.05mm) |
|
LVR055K-2PTC RESET FUSE 240V 550MA RADIAL |
4,541 | 1.34 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 550 mA | 1.25 A | 7 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.882" (22.40mm) | - | 0.200" (5.08mm) |
|
PTCCL13H321HBEPTC RESET FUSE 265V 320MA RADIAL |
5,925 | 2.16 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 320 mA | 480 mA | 2.2 A | - | - | - | 8.4 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.492" Dia x 0.217" T (12.50mm x 5.50mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
RKEF500-1PTC RESET FUSE 60V 5A RADIAL |
8,340 | 1.41 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
0ZRS0500FF1APTC RESET FUSE 32V 5A RADIAL |
5,926 | 1.32 |
|
Datasheet |
Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 5 A | 10 A | 100 A | 9 s | 15 mOhms | 40 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.150" W (14.00mm x 3.80mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
LR4-730FPTC RESET FUSE 20V 7.3A STRAP |
2,609 | 1.53 |
|
Datasheet |
Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 7.3 A | 14.1 A | 100 A | 5 s | 6 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.106" L x 0.559" W (28.10mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
YQS5745PTOPTC RESET FUSE 25V RADIAL DISC |
9,270 | 1.81 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Active | Ceramic | 25V | - | - | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

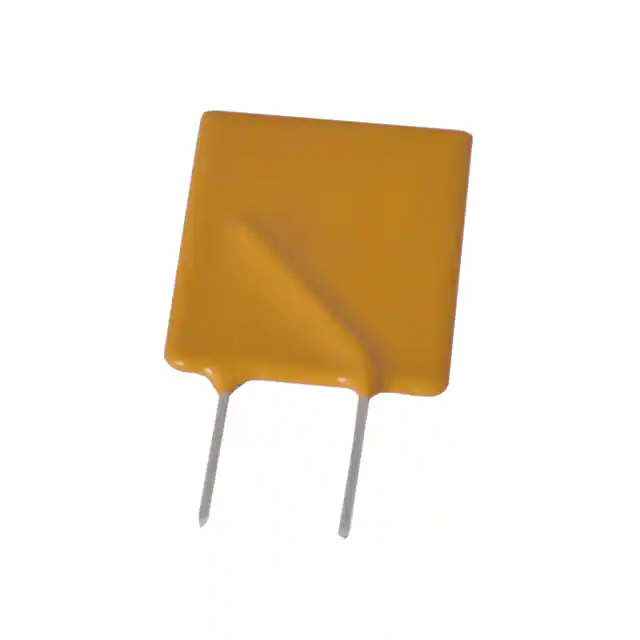

0ZRS1000FF1APTC RESET FUSE 32V 10A RADIAL |
4,521 | 2.08 |
|
Datasheet |
Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 10 A | 20 A | 100 A | 15 s | 6 mOhms | 16 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.157" W (23.50mm x 4.00mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|
TS600-170F-2PTC RESET FUSE 60V 170MA 2SMD |
8,798 | 2.50 |
|
Datasheet |
2-SMD | PolySwitch®, TS600 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 170 mA | 400 mA | 3 A | 10 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.742" L x 0.305" W (18.85mm x 7.75mm) | - | 0.485" (12.32mm) | - |
|
B59910C0130A070PTC RESET FUSE 80V 1A RADIAL |
3,464 | 5.45 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 80V | 1 A | 1.5 A | 10 A | - | - | - | 1.2 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.866" Dia x 0.138" T (22.00mm x 3.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
SMD1206B150TFTPTC RESET FUSE 8V 1.5A 1206 |
4,425 | 0.11 |
|
Datasheet |
1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 8V | 1.5 A | 3 A | 100 A | 300 ms | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.063" (1.60mm) | - |
|
|
0ZCJ0110AF2CPTC RESET FUSE |
9,731 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | 0ZCJ | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
PTS12066V110PTC RESET FUSE 6V 1.1A 1206 |
2,124 | 0.20 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 100 ms | 70 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.035" (0.88mm) | - |
|
RGEF300-1PTC RESET FUSE 16V 3A RADIAL |
1,054 | 0.64 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.260" L x 0.098" W (6.60mm x 2.50mm) | 0.433" (11.00mm) | - | 0.199" (5.05mm) |
