PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FRU185-30FRESETTABLE FUSE - PPTC RADIAL LE |
600 | 0.27 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 1.85 A | 3.7 A | 100 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
FRX110-90FRESETTABLE FUSE - PPTC RADIAL LE |
600 | 0.24 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia (13.00mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
|
FRG300-16FRESETTABLE FUSE - PPTC RADIAL LE |
1,000 | 0.00 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 3 A | 5.1 A | 100 A | 2 s | 34 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
FRX135-90FRESETTABLE FUSE - PPTC RADIAL LE |
400 | 0.29 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia (14.50mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|

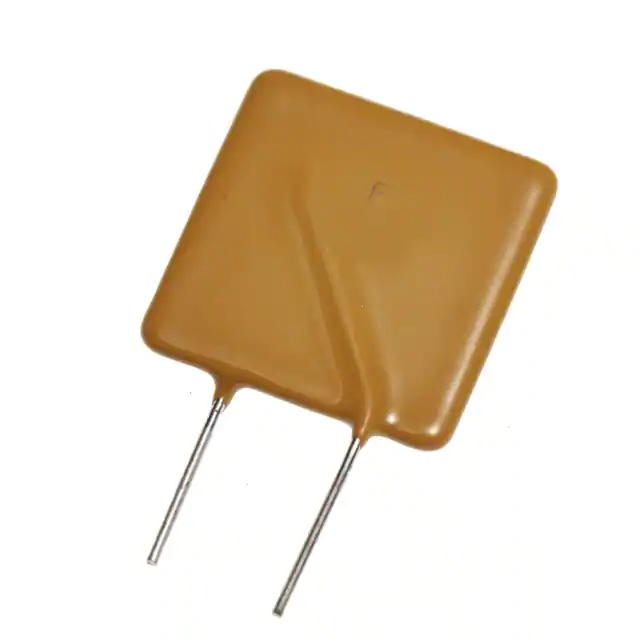

FRV008-240FRESETTABLE FUSE - PPTC RADIAL LE |
1,000 | 0.31 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 15 s | 7.4 Ohms | 26 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia (8.30mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|

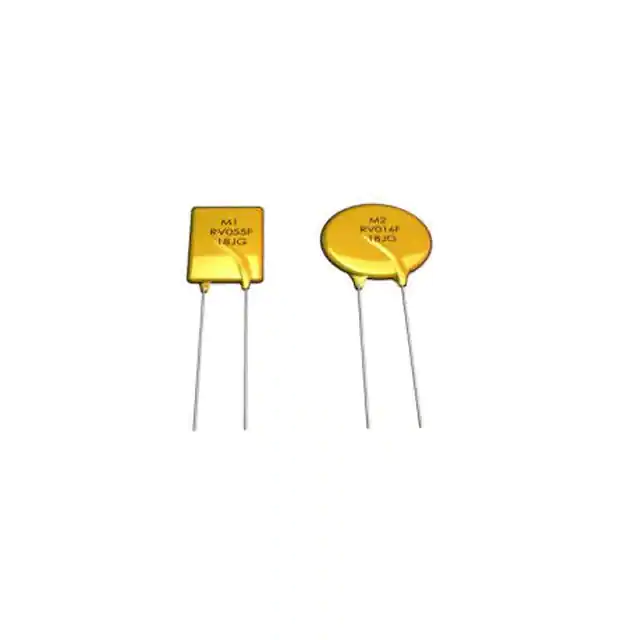

MPRV240V040PTC RESET FUSE 240V 0.4A RADIAL |
1,000 | 0.31 |
|
Datasheet |
Radial, Disc | MPRV | Bulk | Active | Polymeric | 240V | 400 mA | 900 mA | 5.5 A | 24 s | 600 mOhms | 1.9 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.150" T (11.50mm x 3.80mm) | 0.768" (16.50mm) | - | 0.201" (5.10mm) |
|
|
FRV005-240FRESETTABLE FUSE - PPTC RADIAL LE |
1,000 | 0.33 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 50 mA | 120 mA | 1 A | 15 s | 18.5 Ohms | 65 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia (8.30mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
|
FRX160-90FRESETTABLE FUSE - PPTC RADIAL LE |
400 | 0.33 |
|
Datasheet |
Radial, Disc | FRX60 | Bulk | Active | - | 72V (90V Int) | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia (16.30mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
MPTR30V500PTC RESET FUSE 30V 5A RADIAL |
1,000 | 0.34 |
|
Datasheet |
Radial, Disc | MPTR | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
FRG500-16FRESETTABLE FUSE - PPTC RADIAL LE |
600 | 0.35 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 5 A | 8.5 A | 100 A | 3.6 s | 14 mOhms | 44 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
|
FRV016-240FRESETTABLE FUSE - PPTC RADIAL LE |
1,000 | 0.37 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia (9.90mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
|
|
FRX185-90FRESETTABLE FUSE - PPTC RADIAL LE |
400 | 0.37 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" Dia (17.80mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
|
FRG700-16FRESETTABLE FUSE - PPTC RADIAL LE |
400 | 0.40 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 7 A | 11.9 A | 100 A | 8 s | 6 mOhms | 21 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
FSMD400-16-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
1,000 | 0.45 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 16V | 4 A | 8 A | 100 A | 4 s | 10 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.059" (1.50mm) | - |
|
|
FRV033-240FRESETTABLE FUSE - PPTC RADIAL LE |
400 | 0.46 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 830 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.650" (16.50mm) | - | 0.201" (5.10mm) |
|
|
FRX300-90FRESETTABLE FUSE - PPTC RADIAL LE |
300 | 0.47 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia (24.90mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
|
FRX375-90FRESETTABLE FUSE - PPTC RADIAL LE |
300 | 0.51 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.122" Dia (28.50mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
|
FRV040-240FRESETTABLE FUSE - PPTC RADIAL LE |
400 | 0.53 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 400 mA | 900 mA | 5.5 A | 24 s | 600 mOhms | 1.9 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.453" L x 0.150" W (11.50mm x 3.80mm) | 0.768" (19.50mm) | - | 0.201" (5.10mm) |
|
|
FRG1200-16FRESETTABLE FUSE - PPTC RADIAL LE |
300 | 0.54 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 12 A | 20.4 A | 100 A | 16 s | 2 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.142" W (17.50mm x 3.60mm) | 1.102" (28.00mm) | - | 0.402" (10.20mm) |
|
|
FRG1100-16FRESETTABLE FUSE - PPTC RADIAL LE |
300 | 0.00 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 11 A | 18.7 A | 100 A | 13.5 s | 3 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
