PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS90-135PTC RESET FUSE 72V 1.35A RADIAL |
489 | 0.48 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia x 0.122" T (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
RXEF250-APPTC RESET FUSE 72V 2.5A RADIAL |
1,000 | 0.96 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.819" Dia x 0.118" T (20.80mm x 3.00mm) | 1.000" (25.40mm) | - | 0.400" (10.15mm) |
|

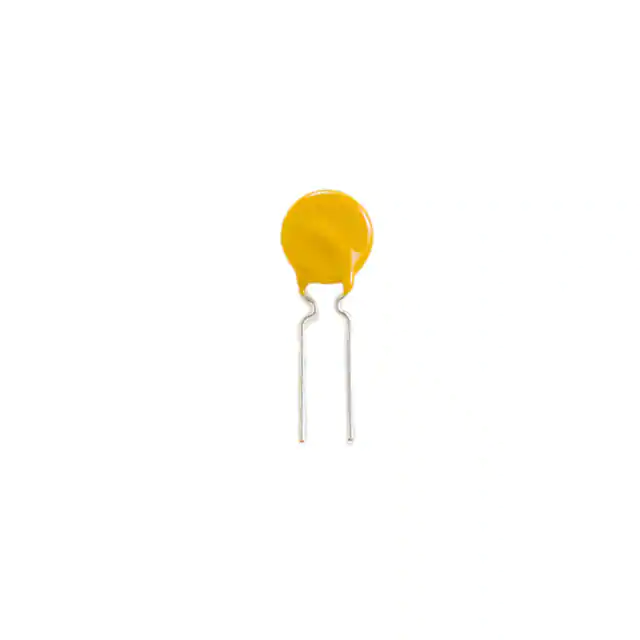

RS120-050PTC RESET FUSE 120V 500MA RADIAL |
209 | 0.79 |
|
Datasheet |
Radial, Disc | RS120 | Bulk | Active | Polymeric | 120V (135V Int) | 500 mA | 1 A | 3 A | 6 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.362" Dia x 0.150" T (9.20mm x 3.80mm) | 0.587" (14.90mm) | - | 0.201" (5.10mm) |
|
RUEF600K-APPTC RESET FUSE 30V 6A RADIAL |
984 | 0.89 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.032" (26.20mm) | - | 0.400" (10.15mm) |
|
PTCCL05H150HTEPTC RESET FUSE 265V 15MA RADIAL |
962 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 15 mA | 23 mA | 110 mA | - | - | - | 1.9 kOhms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.217" T (5.00mm x 5.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
RUEF600-APPTC RESET FUSE 30V 6A RADIAL |
255 | 0.89 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.400" (10.15mm) |
|
FRV200-240FRESETTABLE FUSE - PPTC RADIAL LE |
100 | 1.00 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 2 A | 4 A | 20 A | 28 s | 90 mOhms | 220 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.240" W (24.90mm x 6.10mm) | 1.331" (33.80mm) | - | 0.402" (10.20mm) |
|
|
PTCCL05H181DTEPTC RESET FUSE 30V 180MA RADIAL |
4,025 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 180 mA | 270 mA | 1.7 A | - | - | - | 13 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.197" Dia x 0.157" T (5.00mm x 4.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
TRF250-120T-RF-B-0.5-2PTC RESET FUSE 60V 120MA RADIAL |
778 | 1.15 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 900 ms | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
AGRF1200-2PTC RESET FUSE 16V 12A RADIAL |
875 | 1.25 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 12 A | 22.1 A | 100 A | 8 s | 3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.138" W (17.50mm x 3.50mm) | 1.134" (28.80mm) | - | 0.400" (10.15mm) |
|
TS250-130F-RC-B-0.5-2PTC RESET FUSE 60V 130MA 2SMD |
143 | 1.05 |
|
Datasheet |
2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 2 s | 7 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|
250R120-R2ZRPTC RESET FUSE 60V 120MA RADIAL |
576 | 0.88 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Cut Tape (CT) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 8 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
1812L260/16MR-APTC 16V POLYFUSE SMT 1812 2.60A |
973 | 1.69 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 16V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.079" (2.00mm) | - |
|
MPTR60V030PTC RESET FUSE 60V 0.3A RADIAL |
1,000 | 0.20 |
|
Datasheet |
Radial, Disc | MPTR | Bulk | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
|
MPTR90V110PTC RESET FUSE 90V 1.1A RADIAL |
900 | 0.20 |
|
Datasheet |
Radial, Disc | MPTR | Bulk | Active | Polymeric | 90V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
FRX035-90FRESETTABLE FUSE - PPTC RADIAL LE |
1,000 | 0.21 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 350 mA | 750 mA | 40 A | 10 s | 700 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia (7.40mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
FRX065-90FRESETTABLE FUSE - PPTC RADIAL LE |
1,000 | 0.23 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia (9.70mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
|
FRX055-90FRESETTABLE FUSE - PPTC RADIAL LE |
1,000 | 0.23 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 550 mA | 1.2 A | 40 A | 10 s | 400 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia (9.70mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|
|
MPTR30V160PTC RESET FUSE 30V 1.6A RADIAL |
600 | 0.23 |
|
Datasheet |
Radial, Disc | MPTR | Bulk | Active | Polymeric | 30V | 1.6 A | 3.2 A | 100 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
FSMD110-24RRESETTABLE FUSE - SMD, 1812 SIZE |
1,000 | 0.25 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 24V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
