PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZCC0160FF2CPTC RESET FUSE 8V 1.6A 1812 |
2,711 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.6 A | 3.2 A | 100 A | 500 ms | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
LVR005SPTC RESET FUSE 240V 50MA RADIAL |
2,301 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.430" (10.70mm) | - | 0.200" (5.08mm) |
|
|
LVR008SPTC RESET FUSE 240V 80MA RADIAL |
9,371 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.430" (10.70mm) | - | 0.200" (5.08mm) |
|
RTEF190PTC RESET FUSE 33V 1.9A RADIAL |
5,951 | 0.00 |
|
- |
Radial, Disc | PolySwitch® | Bag | Obsolete | Polymeric | 33V | 1.9 A | 3 A | 40 A | 3.5 s | 45 mOhms | 92 mOhms | - | - | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
|
LVR005KPTC RESET FUSE 240V 50MA RADIAL |
7,644 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.200" (5.08mm) |
|
|
LVR008KPTC RESET FUSE 240V 80MA RADIAL |
2,366 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.200" (5.08mm) |
|
|
RTEF190SPTC RESET FUSE 33V 1.9A RADIAL |
2,900 | 0.00 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 33V | 1.9 A | 3 A | 40 A | 3.5 s | 45 mOhms | 92 mOhms | - | - | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
RUE250U-2PTC RESET FUSE 30V 2.5A RADIAL |
5,402 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
PTR016V0155-TR1PTC RESET FUSE 16V 1.55A RADIAL |
8,312 | 0.00 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.55 A | 3.1 A | 40 A | 600 ms | 43 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - |
|
|
BK250-400-SIPTC RESET FUSE 250V 400MA RAD |
7,353 | 0.00 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 400 mA | 800 mA | 10 A | 9 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.181" W (11.20mm x 4.60mm) | 0.768" (19.50mm) | - | 0.201" (5.10mm) |
|
RUEF160-1PTC RESET FUSE 30V 1.6A RADIAL |
9,831 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Obsolete | Polymeric | 30V | 1.6 A | 3.2 A | 100 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|
PTR060V0020-TRPTC RESET FUSE 60V 200MA RADIAL |
9,096 | 0.20 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.197" (5.00mm) |
|
RUSBF250-APPTC RESET FUSE 16V 2.5A RADIAL |
5,989 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Tape & Box (TB) | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 40 A | 40 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.199" (5.05mm) |
|

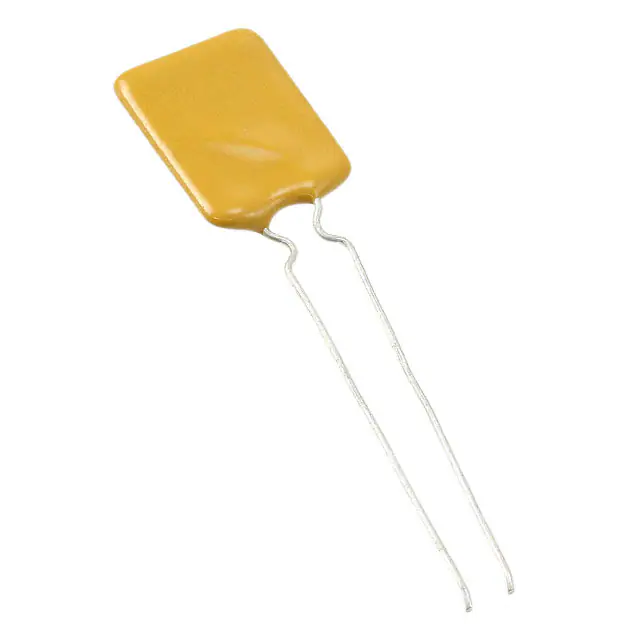

16R250BPRPTC RESET FUSE 16V 2.5A RADIAL |
8,655 | 0.74 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Tape & Box (TB) | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 40 A | 40 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
0ZRC0185FF2BPTC RESET FUSE 90V 1.85A RADIAL |
7,309 | 0.23 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
RHEF070U-2PTC RESET FUSE 30V 700MA RADIAL |
8,582 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.199" (5.05mm) |
|

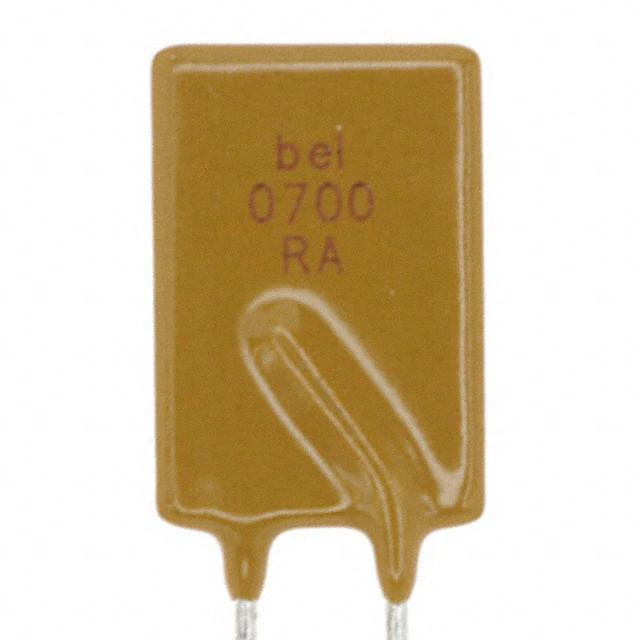

0ZRA0700FF1APTC RESET FUSE 16V 7A RADIAL |
2,984 | 0.23 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 8 s | 6 mOhms | 21 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
|
PTR060V0017-TRPTC RESET FUSE 60V 170MA RADIAL |
3,172 | 0.21 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.197" (5.00mm) |
|
|
RTEF190-2PTC RESET FUSE 33V 1.9A RADIAL |
4,909 | 0.00 |
|
- |
Radial, Disc | PolySwitch® | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.9 A | 3 A | 40 A | 3.5 s | 45 mOhms | 92 mOhms | - | - | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
|
MF-R017-0-17PTC RESETTABLE 0.17A 60V RADIAL |
5,031 | 0.25 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
