PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BK30-700-SZPTC RESET FUSE 30V 7A RAD |
7,770 | 0.29 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.083" (27.50mm) | - | 0.413" (10.50mm) |
|
PTGL09AR1R8H2B51B0PTC RESET FUSE 30V 510MA RADIAL |
6,937 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 510 mA | 970 mA | 3 A | - | - | - | 1.8 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
SMD0805P050TSAPTC RESET FUSE 6V 500MA 0805 |
9,378 | 0.00 |
|
- |
0805 (2012 Metric), Concave | POLY-FUSE®, SMD0805 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 500 mA | 1 A | 40 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
PTCTL4MR250GTE043PTC RESET FUSE 245V 70MA RADIAL |
8,078 | 0.48 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 245V | 70 mA | 200 mA | 4 A | 2.5 s | - | - | 25 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.197" T (8.50mm x 5.00mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|
|
MF-RG400-0-14PTC RESETTABLE 4A 16V RADIAL LEA |
2,258 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.390" L x 0.118" W (9.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
PTGL07AS5R6K4N51B0PTC RESET FUSE 60V 186MA RADIAL |
9,056 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR® PTGL | Bulk | Obsolete | Ceramic | 60V | 186 mA | 368 mA | 2.2 A | - | - | - | 5.6 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.287" Dia x 0.138" W (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
0ZRN0550FF1EPTC RESET FUSE 16V 5.5A RADIAL |
4,505 | 0.41 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|

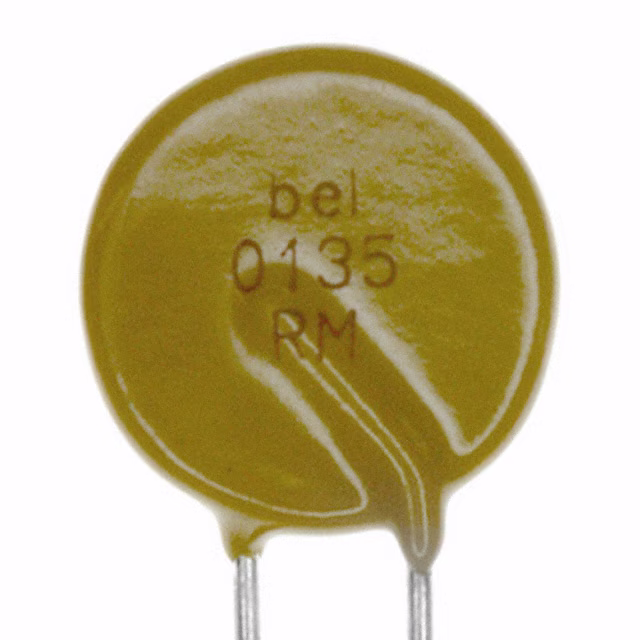

0ZRM0135FF1APTC RESET FUSE 120V 1.35A RADIAL |
9,358 | 0.39 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.35 A | 2.7 A | 10 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.610" Dia x 0.161" T (15.50mm x 4.10mm) | 0.811" (20.60mm) | - | 0.201" (5.10mm) |
|

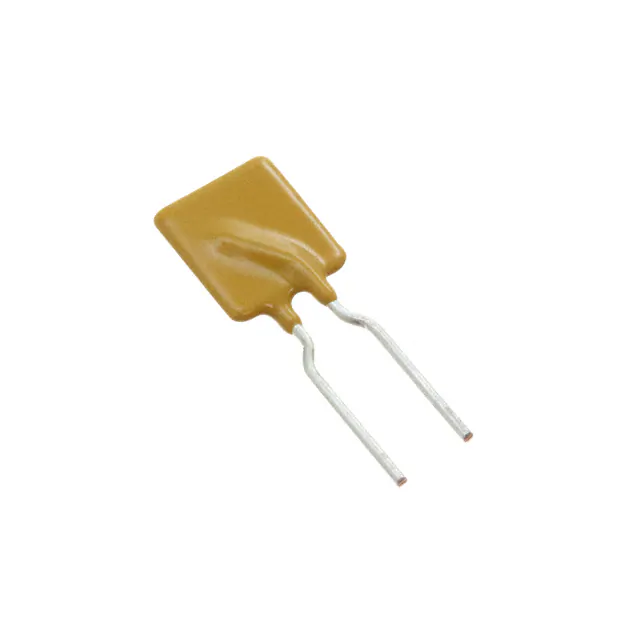

0ZRN0400FF2DPTC RESET FUSE 16V 4A RADIAL |
7,275 | 0.41 |
|
Datasheet |
Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 7 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|

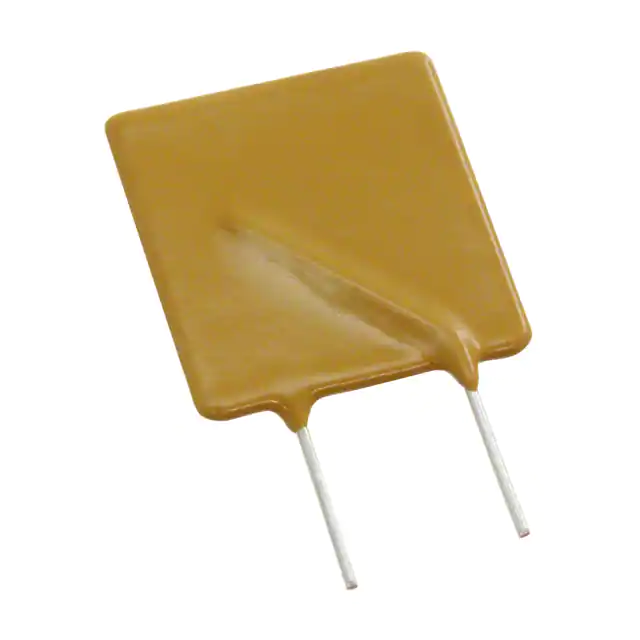

0ZRP0400FF2APTC RESET FUSE 60V 4A RADIAL |
6,304 | 0.39 |
|
Datasheet |
Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 4 A | 8 A | 40 A | 24 s | 14 mOhms | 60 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|

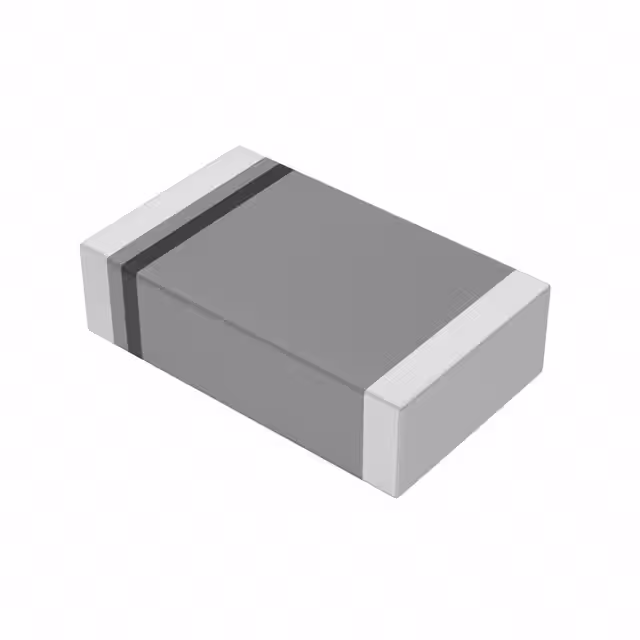

0ZCE0100FF2EPTC RESET FUSE 6V 1A 0805 |
7,692 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1 A | 1.95 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.071" (1.80mm) | - |
|
MINISMDC100F-2PTC RESET FUSE 8V 1.1A 1812 |
9,550 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
|
SMD1812P010TFAPTC RESET FUSE 30V 100MA 1812 |
6,676 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 100 mA | 300 mA | 10 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
MF-RX375/72-0-14FUSE PTC RESETTABLE |
2,731 | 0.42 |
|
Datasheet |
Radial, Disc | MF-RX/72 | Bulk | Active | - | 72V | 3.75 A | 7.5 A | 40 A | 24 s | - | - | - | - | - | - | - | Through Hole | 1.118" L x 0.122" W (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
|
MF-RX375/72-APPTC RESET FUSE 72V 3.75A RADIAL |
7,628 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.926" L x 0.122" W (23.51mm x 3.10mm) | 1.161" (29.50mm) | - | 0.402" (10.20mm) |
|
|
MF-R800-APPTC RESET FUSE 30V 8A RADIAL |
3,947 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
MF-RG650-APPTC RESET FUSE 16V 6.5A RADIAL |
2,849 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 6.5 A | 11.1 A | 100 A | 3.5 s | 8.8 mOhms | 24 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R600-AP-14PTC RESETTABLE 6.0A 30V RADIAL L |
8,408 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.760" L x 0.118" W (19.30mm x 3.00mm) | 1.256" (31.90mm) | - | 0.402" (10.20mm) |
|
|
MF-RG400-2-14PTC RESETTABLE 4A 16V RADIAL LEA |
7,490 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.390" L x 0.118" W (9.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT650-AP-14PTC 6.5A 16V RADIAL LEADED HI-TE |
2,230 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.201" (5.10mm) |
