PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFUF.005.2PTC RESET FUSE 30V 50MA 1210 |
4,223 | 0.38 |
|
Datasheet |
1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 10 A | 1.5 s | 2.8 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.093" W (3.22mm x 2.35mm) | - | 0.037" (0.95mm) | - |
|
MINISMDC110F-2PTC RESET FUSE 8V 1.1A 1812 |
65,655 | 0.39 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
MICROSMD175F-2PTC RESET FUSE 6V 1.75A 1210 |
57,769 | 0.56 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 40 A | 800 ms | 25 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.030" (0.76mm) | - |
,-Concave.jpg)
|
0ZCG0260AF2BPTC RESET FUSE 13.2V 2.6A 1812 |
30,287 | 0.34 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 13.2V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
1210L035YRPTC RESET FUSE 6V 350MA 1210 |
12,362 | 0.56 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 700 mA | 100 A | 200 ms | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
MF-FSML050/8-2PTC RESET FUSE 8V 500MA 0603 |
10,055 | 1.29 |
|
Datasheet |
0603 (1608 Metric), Concave | Multifuse®, MF-FSML | Tape & Reel (TR) | Active | Polymeric | 8V | 500 mA | 1 A | 50 A | 60 ms | 60 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.028" (0.70mm) | - |
|
|
MF-FSML075/8-2PTC RESET FUSE 8V 750MA 0603 |
4,470 | 1.29 |
|
Datasheet |
0603 (1608 Metric), Concave | Multifuse®, MF-FSML | Tape & Reel (TR) | Active | Polymeric | 8V | 750 mA | 1.5 A | 50 A | 1 s | 50 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.028" (0.70mm) | - |
|
0ZCK0050AF2EPTC RESET FUSE 9V 500MA 0805 |
3,534 | 0.33 |
|
Datasheet |
0805 (2012 Metric), Concave | 0ZCK | Tape & Reel (TR) | Active | Polymeric | 9V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.087" L x 0.053" W (2.20mm x 1.35mm) | - | 0.035" (0.90mm) | - |
|
1206L010/30WRPTC RESET FUSE 30V 100MA 1206 |
65,616 | 0.57 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 250 mA | 10 A | 1.5 s | 1.5 Ohms | 10 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | - | - |
|
MF-R010-2PTC RESET FUSE 60V 100MA RADIAL |
11,738 | 0.36 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
RXEF017-2PTC RESET FUSE 60V 170MA RADIAL |
3,307 | 0.45 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) |
|
PTS12066V200PTC RESET FUSE 6V 2A 1206 |
3,233 | 0.31 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 3.5 A | 100 A | 1.5 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.045" (1.15mm) | - |
|
MF-MSMF075/30-2PTC RESET FUSE 30V 750MA 1812 |
16,061 | 0.74 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 30V | 750 mA | 1.5 A | - | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|

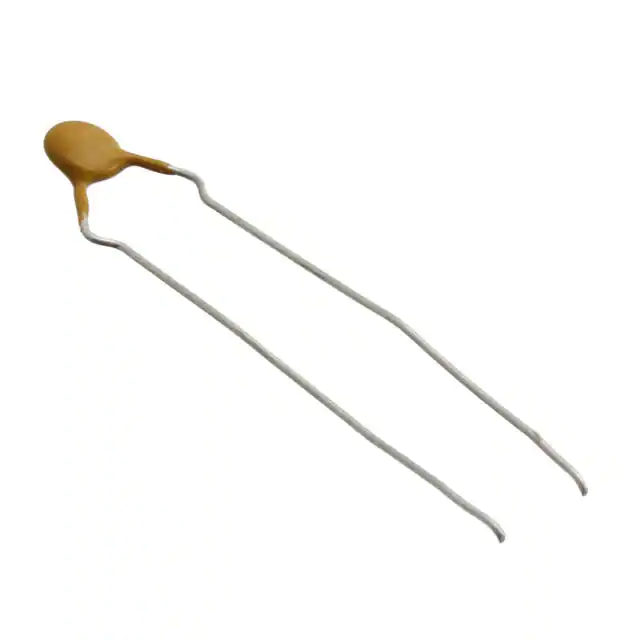

MF-R005-2PTC RESET FUSE 60V 50MA RADIAL |
13,785 | 0.61 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.315" Dia x 0.122" T (8.00mm x 3.10mm) | 0.327" (8.30mm) | - | 0.201" (5.10mm) |
|

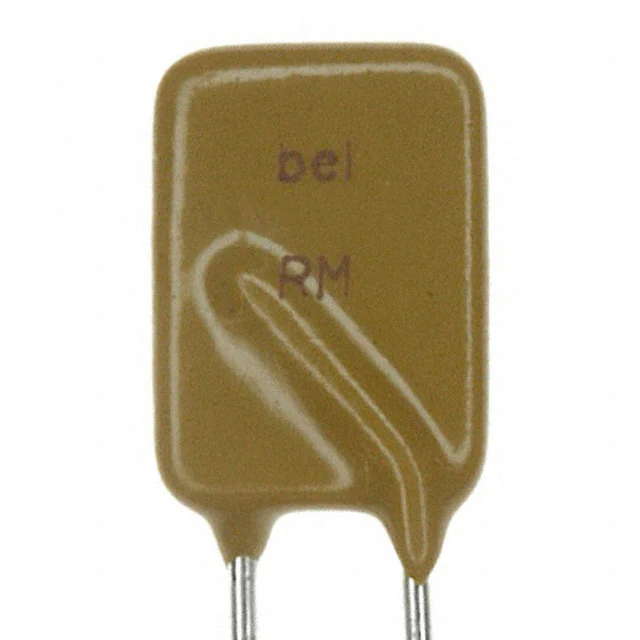

0ZRG0075FF1EPTC RESET FUSE 30V 750MA RADIAL |
7,263 | 0.44 |
|
Datasheet |
Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 750 mA | 1.3 A | 40 A | 400 ms | 80 mOhms | 230 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|
|
MF-R025PTC RESET FUSE 60V 250MA RADIAL |
5,849 | 0.61 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-R065-2PTC RESET FUSE 60V 650MA RADIAL |
13,172 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
RUEF090PTC RESET FUSE 30V 900MA RADIAL |
12,704 | 0.46 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
1812L110PRPTC RESET FUSE 8V 1.1A 1812 |
6,524 | 0.42 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.71mm) | - |
|
MINISMDC160F-2PTC RESET FUSE 9V 1.6A 1812 |
5,270 | 0.47 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 9V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.019" (0.48mm) | - |
