PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-RHT1300-AP-14PTC 13.0A 16V RADIAL LEADED HI-T |
5,895 | 0.79 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT1300-2-14PTC 13.0A 16V RADIAL LEADED HI-T |
5,966 | 0.79 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
PTGL9SAS7R6K6B51B0PTC RESET FUSE 140V 287MA RADIAL |
2,144 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 287 mA | 382 mA | 2.2 A | - | - | - | 7.6 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.366" Dia x 0.177" T (9.30mm x 4.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|

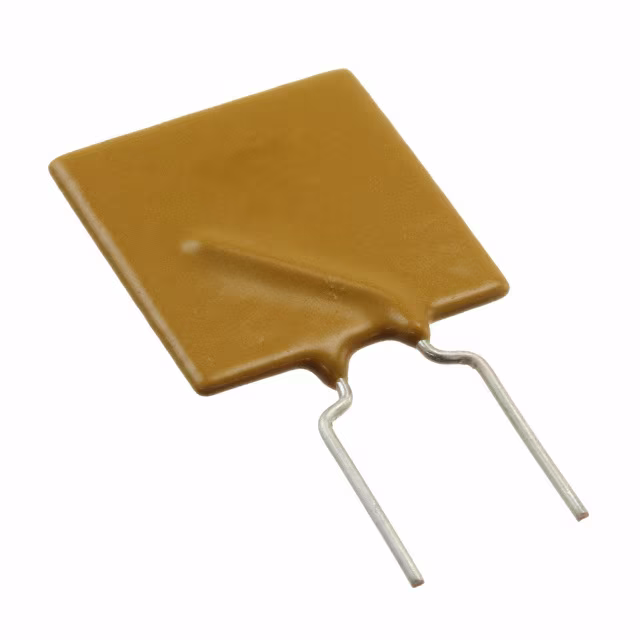

0ZRN1100FF1APTC RESET FUSE 16V 11A RADIAL |
6,826 | 0.77 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 11 A | 20 A | 100 A | 11 s | 5.5 mOhms | 13 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 1.028" (26.10mm) | - | 0.402" (10.20mm) |
|
0ZRN1300FF1APTC RESET FUSE 16V 13A RADIAL |
9,695 | 0.77 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
MF-NSML380/6-2PTC RESET FUSE 6V 3.8A 1206 |
2,001 | 0.37 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 3.8 A | 7.6 A | 50 A | 5 s | 2 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.055" (1.40mm) | - |
|
PTR016V1500-TR1PTC RESET FUSE 16V 15A RADIAL |
2,917 | 0.68 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 15 A | 25.5 A | 100 A | 10 s | 2 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.989" L x 0.122" W (25.10mm x 3.10mm) | 1.260" (32.00mm) | - | 0.394" (10.00mm) |
|
|
2322 662 93074PTC RESET FUSE 245V 140MA RADIAL |
6,586 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 245V | 140 mA | 270 mA | - | 8 s | - | - | 10 Ohms | - | - | - | - | Through Hole | 0.433" Dia x 0.177" T (11.00mm x 4.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
PTCCL13H921DTEPTC RESET FUSE 30V 920MA RADIAL |
6,176 | 2.06 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 920 mA | 1.38 A | 11 A | - | - | - | 900 mOhms | -40°C ~ 85°C | - | - | - | Through Hole | 0.492" Dia x 0.157" T (12.50mm x 4.00mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
|
PTR016V0400-TRPTC RESET FUSE 16V 4A RADIAL |
9,124 | 0.28 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.122" W (8.90mm x 3.10mm) | 0.504" (12.80mm) | - | 0.197" (5.00mm) |
|
MF-RG1100-0-14PTC RESETTABLE 11A 16V RADIAL LE |
9,091 | 0.80 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
|
PTGLCSAS4R7K6B51A0PTC RESET FUSE 140V 393MA RADIAL |
8,086 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 393 mA | 523 mA | 3.5 A | - | - | - | 4.7 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.453" Dia x 0.177" T (11.50mm x 4.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
RL3810-100-110-50-PTFPTC RESET FUSE 50V 80MA RADIAL |
3,156 | 0.00 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 50V | 80 mA | 120 mA | - | - | - | - | 100 Ohms | - | - | - | - | Through Hole | 0.421" Dia x 0.201" T (10.70mm x 5.10mm) | 0.421" (10.70mm) | - | 0.252" (6.40mm) |
|
|
RL3510-100-110-120-PTFPTC RESET FUSE 120V 80MA RADIAL |
5,523 | 0.00 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 120V | 80 mA | 110 mA | - | - | - | - | 100 Ohms | - | - | - | - | Through Hole | 0.402" Dia x 0.201" T (10.20mm x 5.10mm) | 0.402" (10.20mm) | - | 0.252" (6.40mm) |
|
MF-SM030-2-99PTC RESET FUSE 60V 300MA 2SMD |
8,149 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 900 mOhms | 4.8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.289" L x 0.214" W (7.36mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|

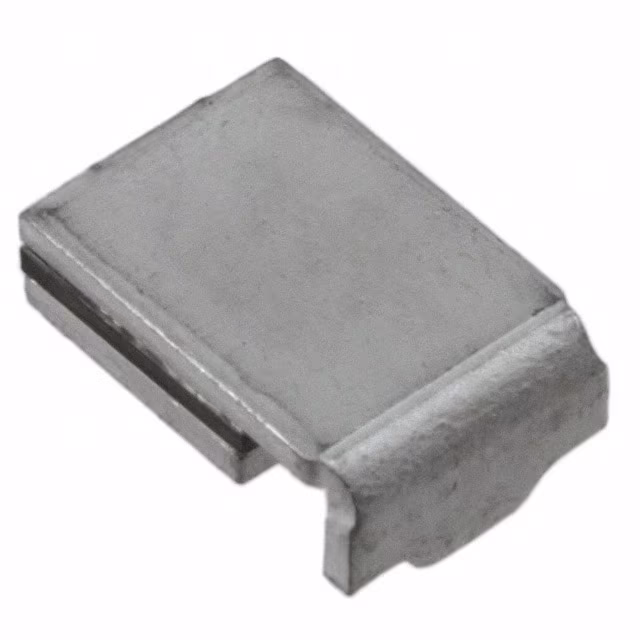

MF-SM050-2-99PTC RESET FUSE 60V 500MA 2SMD |
6,177 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|
|
MF-SM075-2-99PTC RESET FUSE 30V 750MA 2SMD |
4,439 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 750 mA | 1.5 A | 80 A | 300 ms | 230 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|
|
MF-SM100-2-99PTC RESET FUSE 30V 1.1A 2SMD |
9,666 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 1.1 A | 2.2 A | 80 A | 500 ms | 120 mOhms | 480 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
|
MF-SM125-2-99PTC RESET FUSE 15V 1.25A 2SMD |
9,010 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 1.25 A | 2.5 A | 100 A | 2 s | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
MF-SM150-2-99PTC RESET FUSE 15V 1.5A 2SMD |
6,052 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 1.5 A | 3 A | 100 A | 5 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.344" L x 0.264" W (8.75mm x 6.71mm) | - | 0.118" (3.00mm) | - |
