PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-NSML175-2PTC RESET FUSE 6V 1.75A 1206 |
8,444 | 0.43 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 500 ms | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.024" (0.60mm) | - |
|
|
MF-NSML300-2PTC RESET FUSE 6V 3A 1206 |
2,632 | 0.00 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 6 A | 50 A | 4 s | 2.5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.024" (0.60mm) | - |
|
|
MF-NSML400-2PTC RESET FUSE 6V 4A 1206 |
9,826 | 0.45 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4 A | 8 A | 50 A | 5 s | 1.5 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.024" (0.60mm) | - |
|
|
MF-NSML500-2PTC RESET FUSE 6V 5A 1206 |
7,233 | 0.43 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.047" (1.20mm) | - |
|
|
MF-NSML550-2PTC RESET FUSE 6V 5.5A 1206 |
4,691 | 0.00 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 5.5 A | 11 A | 50 A | 2 s | 1 mOhms | 11 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.047" (1.20mm) | - |
|
|
MF-NSML600-2PTC RESET FUSE 6V 6A 1206 |
7,753 | 0.00 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 6 A | 12 A | 50 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.047" (1.20mm) | - |
, Concave.jpg)
|
FEMTOSMDC016F-02PTC RESET FUSE 9V 160MA 0603 |
6,696 | 0.63 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, femtoSMD | Tape & Reel (TR) | Active | Polymeric | 9V | 160 mA | 400 mA | 40 A | 100 ms | 1 Ohms | 4.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
MF-RX012/250U-2PTC RESET FUSE 60V 120MA RADIAL |
8,220 | 0.37 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 120 mA | - | 3 A | - | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.201" (5.10mm) |
|
0603L002/60YR-APTC 60V POLYFUSE SURF MOUNT 0603 |
3,012 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0603L001/60YR-APTC 60V POLYFUSE SURF MOUNT 0603 |
4,399 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

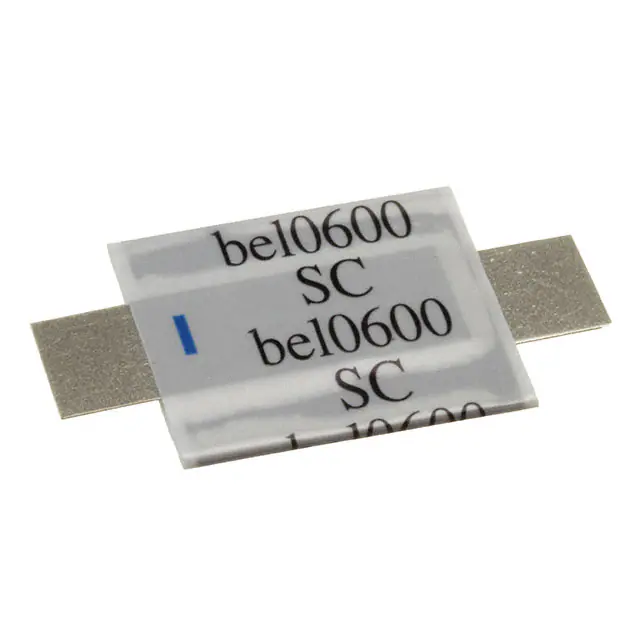

0ZSC0600FF1EPTC RESET FUSE 20V 6A STRAP |
1,409 | 1.12 |
|
Datasheet |
Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 6 A | 11.7 A | 100 A | 5 s | 7 mOhms | 19 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.559" W (25.00mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
250S130VMRPTC RESET FUSE 60V 130MA 2SMD |
2,960 | 0.00 |
|
- |
2-SMD | POLY-FUSE®, 250S | Tape & Reel (TR) | Obsolete | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.240" L x 0.272" W (6.10mm x 6.90mm) | - | 0.126" (3.20mm) | - |
|
PTR016V0600-TRPTC RESET FUSE 16V 6A RADIAL |
7,604 | 0.34 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 6 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.122" W (10.70mm x 3.10mm) | 0.673" (17.10mm) | - | 0.197" (5.00mm) |
|
RL6010-20-110-120-PTFPTC RESET FUSE 120V 220MA RADIAL |
3,138 | 0.00 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 120V | 220 mA | 330 mA | - | - | - | - | 20 Ohms | - | - | - | - | Through Hole | 0.650" Dia x 0.228" T (16.50mm x 5.80mm) | 0.650" (16.50mm) | - | 0.331" (8.40mm) |
|
|
2322 661 93056PTC RESET FUSE 600V 70MA RADIAL |
6,882 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 600V | 70 mA | 600 mA | 1 A | 3 s | - | - | 35 Ohms | - | - | - | - | Through Hole | 0.315" Dia x 0.197" T (8.00mm x 5.00mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
|
2322 662 93129PTC RESET FUSE 600V 70MA RADIAL |
6,997 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 600V | 70 mA | 170 mA | - | 8 s | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.413" Dia x 0.197" T (10.50mm x 5.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|

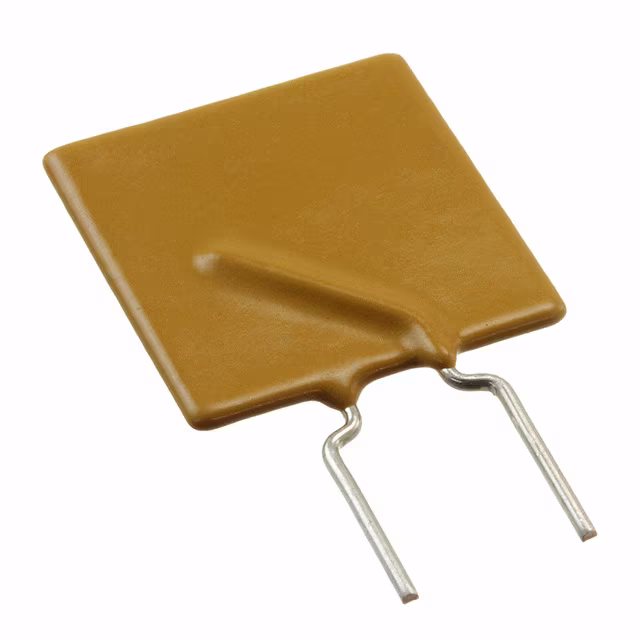

0ZRN1400FF1APTC RESET FUSE 16V 14A RADIAL |
4,337 | 0.92 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 14 A | 27 A | 100 A | 13 s | 3 mOhms | 9 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
TSV250-184F-2PTC RESET FUSE 100V 184MA 2SMD |
6,697 | 0.00 |
|
Datasheet |
2-SMD | PolySwitch®, TSV250 | Tape & Reel (TR) | Obsolete | Polymeric | 100V (250V Int) | 184 mA | 690 mA | 10 A | 500 ms | 1.2 Ohms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.240" L x 0.272" W (6.10mm x 6.90mm) | - | 0.126" (3.20mm) | - |
|
MF-RG400-2PTC RESET FUSE 16V 4A RADIAL |
2,473 | 0.94 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.390" L x 0.118" W (9.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
MF-USHT150KX-2PTC RESET FUSE 12V 1.5A 1210 |
6,274 | 0.94 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USHT | Tape & Reel (TR) | Obsolete | Polymeric | 12V | 1.5 A | 4.5 A | 40 A | 5 s | 25 mOhms | 250 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.063" (1.60mm) | - |
