PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YPBJ9.40TPTC RESET FUSE 80V 90MA RADIAL |
8,066 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 90 mA | 190 mA | 3 A | - | - | - | 9.4 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
MF-USML500/6-2PTC RESET FUSE 6V 5A 1210 |
5,441 | 0.34 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
PTGL12AS1R2K3B51B0PTC RESET FUSE 51V 749MA RADIAL |
9,009 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 749 mA | 996 mA | 5 A | - | - | - | 1.2 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
MF-SM075/60-2-99PTC RESET FUSE 60V 750MA 2SMD |
2,721 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 750 mA | 1.5 A | 10 A | 300 ms | 230 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|
|
MF-SM100/33-2-99PTC RESET FUSE 33V 1.1A 2SMD |
8,578 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 120 mOhms | 410 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
MF-SM150/33-2-99PTC RESET FUSE 33V 1.5A 2SMD |
8,730 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.5 A | 3 A | 40 A | 5 s | 60 mOhms | 230 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.344" L x 0.264" W (8.75mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|

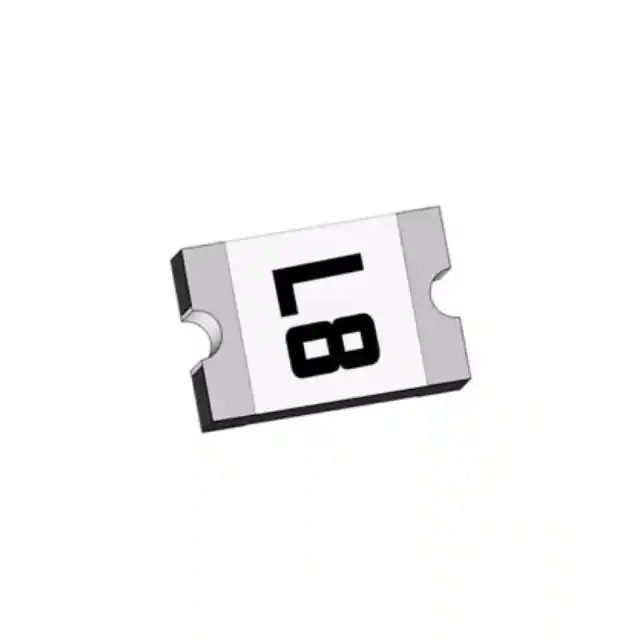

PTSLR12066V175PTC RESET FUSE 6V 1.75A 1206 |
7,913 | 0.31 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 400 ms | 5 mOhms | 45 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
|
PTGL12AS0R8K2B51B0PTC RESET FUSE 30V 867MA RADIAL |
3,377 | 1.90 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 867 mA | 1.153 A | 7 A | - | - | - | 800 mOhms | -30°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
1812L150/24HMRPTC RESET FUSE 24V 1.5A 1812 |
7,147 | 0.00 |
|
- |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 1.5 A | 3 A | 20 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.071" (1.80mm) | - |
|
1206L400SL-SYRPTC RESET FUSE 6V 4A 1206 |
7,606 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | LoRho Surface Mount | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4 A | 8 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
|
YQD080N0025PTC RESET FUSE 265V 85MA RADIAL |
6,588 | 0.79 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 85 mA | 170 mA | 800 mA | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
B59930C0130A070PTC RESET FUSE 80V 700MA RADIAL |
8,121 | 0.92 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 80V | 700 mA | 1.1 A | 8 A | - | - | - | 2.2 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|

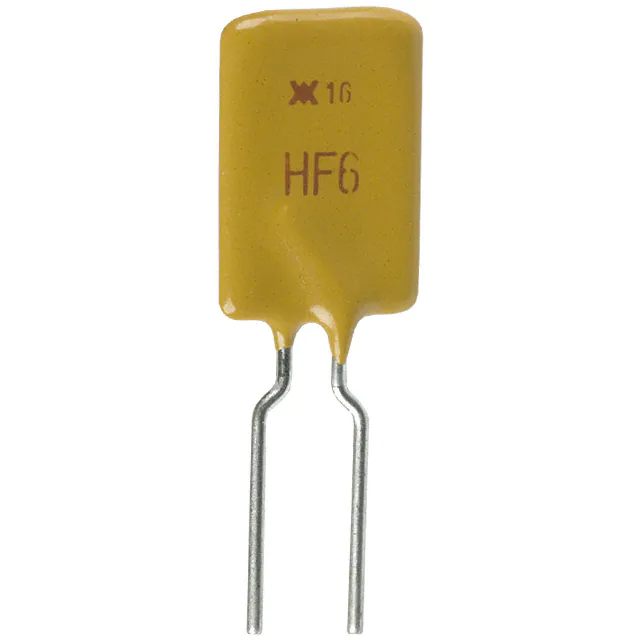

RHEF600-2PTC RESET FUSE 16V 6A RADIAL |
2,844 | 0.86 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.441" L x 0.122" W (11.20mm x 3.10mm) | 0.827" (21.00mm) | - | 0.199" (5.05mm) |
|
YQZ120N0013PTC RESET FUSE 18V 140MA RADIAL |
3,855 | 0.00 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 18V | 140 mA | 280 mA | 700 mA | - | - | - | 13 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.177" Dia x 0.157" T (4.50mm x 4.00mm) | - | - | 0.236" (6.00mm) |
|
|
YS5678PTC RESET FUSE RADIAL DISC |
8,746 | 0.79 |
|
- |
Radial, Disc | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | - | - | - | - |
|
YQD100N0600PTC RESET FUSE 265V 20MA RADIAL |
6,166 | 0.79 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 20 mA | 40 mA | 200 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
|
YS5631PTC RESET FUSE RADIAL DISC |
2,591 | 0.79 |
|
- |
Radial, Disc | YS | Bulk | Active | Ceramic | - | - | - | - | - | - | - | 100 Ohms | - | - | - | - | Through Hole | - | - | - | - |
|
|
2322 661 93048PTC RESET FUSE 220V 70MA RADIAL |
8,457 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 220V | 70 mA | 200 mA | 4 A | 2.5 s | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.335" Dia x 0.197" T (8.50mm x 5.00mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|
|
2322 661 93043PTC RESET FUSE 245V 70MA RADIAL |
8,514 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 245V | 70 mA | 200 mA | - | 20 s | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.327" Dia x 0.157" T (8.30mm x 4.00mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
MF-NSML150-2PTC RESET FUSE 6V 1.5A 1206 |
7,197 | 0.45 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 50 A | 500 ms | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.024" (0.60mm) | - |
