PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

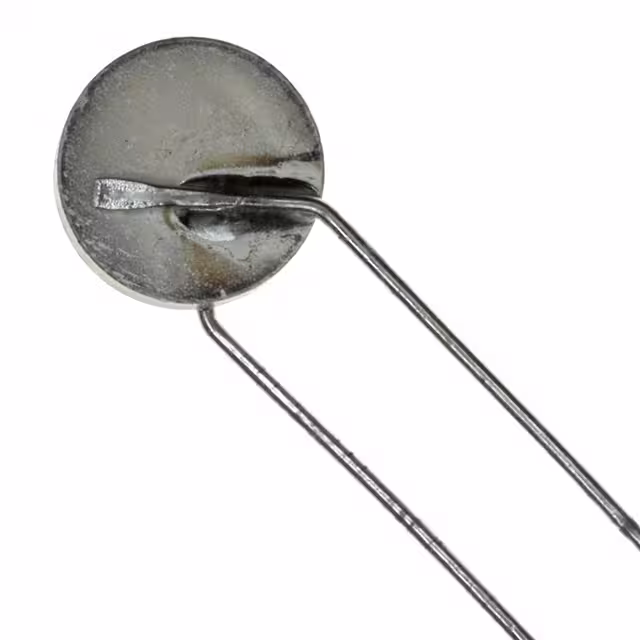

RL5020-2K-100-480-PTOPTC RESET FUSE 480V RADIAL DISC |
4,355 | 0.00 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 480V | - | - | - | 80 s | - | - | 2 kOhms | - | - | - | - | Through Hole | 0.550" Dia x 0.320" T (13.97mm x 8.13mm) | 0.550" (13.97mm) | - | 0.330" (8.38mm) |
|
PTCCL13H321HTEPTC RESET FUSE 265V 320MA RADIAL |
2,149 | 2.06 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 320 mA | 480 mA | 2.2 A | - | - | - | 8.4 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.492" Dia x 0.217" T (12.50mm x 5.50mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL11H611DTEPTC RESET FUSE 30V 610MA RADIAL |
3,884 | 1.37 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 610 mA | 915 mA | 7 A | - | - | - | 1.7 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL13H831DTEPTC RESET FUSE 30V 830MA RADIAL |
4,357 | 1.48 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 830 mA | 1.245 A | 10 A | - | - | - | 1.1 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.492" Dia x 0.157" T (12.50mm x 4.00mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL13H281HTEPTC RESET FUSE 265V 280MA RADIAL |
8,130 | 2.06 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 280 mA | 420 mA | 1.8 A | - | - | - | 11 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.492" Dia x 0.217" T (12.50mm x 5.50mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
PFRA.185.2PTC RESET FUSE 30V 1.85A RADIAL |
9,582 | 0.45 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" Dia x 0.118" T (12.00mm x 3.00mm) | 0.724" (18.40mm) | - | 0.201" (5.10mm) |
|
RL5515-50-65-240-PTOPTC RESET FUSE 240V RADIAL DISC |
5,521 | 0.00 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 240V | - | - | - | 80 s | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.600" Dia x 0.270" T (15.24mm x 6.86mm) | 0.600" (15.24mm) | - | 0.330" (8.38mm) |
|

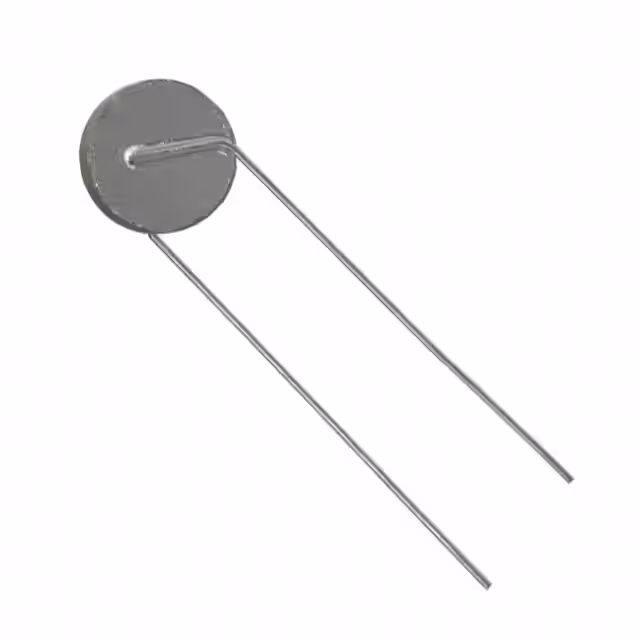

RL6315-50-110-240-PTOPTC RESET FUSE 240V RADIAL DISC |
4,859 | 0.00 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 240V | - | - | - | 90 s | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.650" Dia x 0.270" T (16.51mm x 6.86mm) | 0.650" (16.51mm) | - | 0.330" (8.38mm) |
|
RL6015-100-120-240-PTOPTC RESET FUSE 240V RADIAL DISC |
5,732 | 0.00 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 240V | - | - | - | 90 s | - | - | 100 Ohms | - | - | - | - | Through Hole | 0.650" Dia x 0.270" T (16.51mm x 6.86mm) | 0.650" (16.51mm) | - | 0.330" (8.38mm) |
|
PTGL20AS330H0D02BZPTC RESET FUSE 280V RADIAL DISC |
4,083 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 280V | - | - | 39 A | - | - | - | 33 Ohms | -20°C ~ 85°C | - | - | - | Through Hole | 0.866" Dia x 0.256" T (22.00mm x 6.50mm) | 1.102" (28.00mm) | - | 0.394" (10.00mm) |
|
YPCJ0010TPTC RESET FUSE 265V 110MA RADIAL |
9,218 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 110 mA | 230 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.591" (15.00mm) | - | 0.200" (5.08mm) |
|
|
YPAL045TPTC RESET FUSE 30V 1.3A RADIAL |
7,843 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
MF-PSML175-2PTC RESET FUSE 6V 1.75A 0805 |
9,561 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | - | - | - | - | - | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.024" (0.60mm) | - |
|

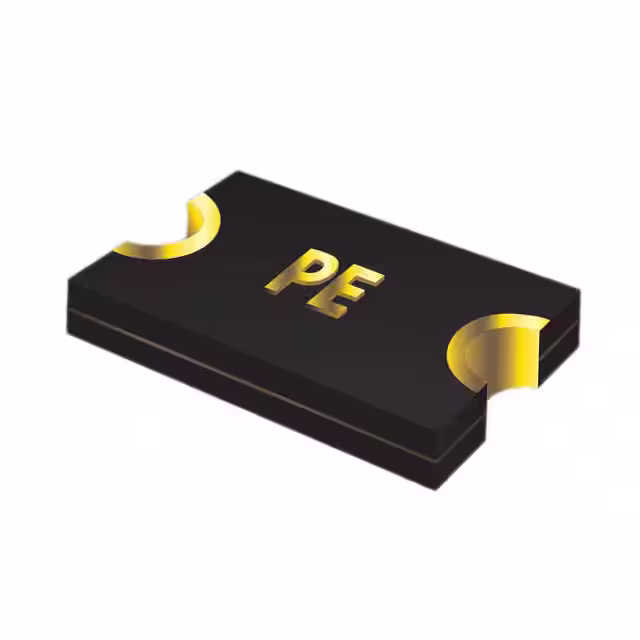

MF-PSML075-2PTC 0.75A 6V SMD 0805 LOW-OHMIC |
6,277 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 750 mA | 1.5 A | 50 A | 300 ms | 20 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.024" (0.60mm) | - |
.jpg)
|
RS30-500PTC RESET FUSE 30V 5A RADIAL |
3,604 | 0.73 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|

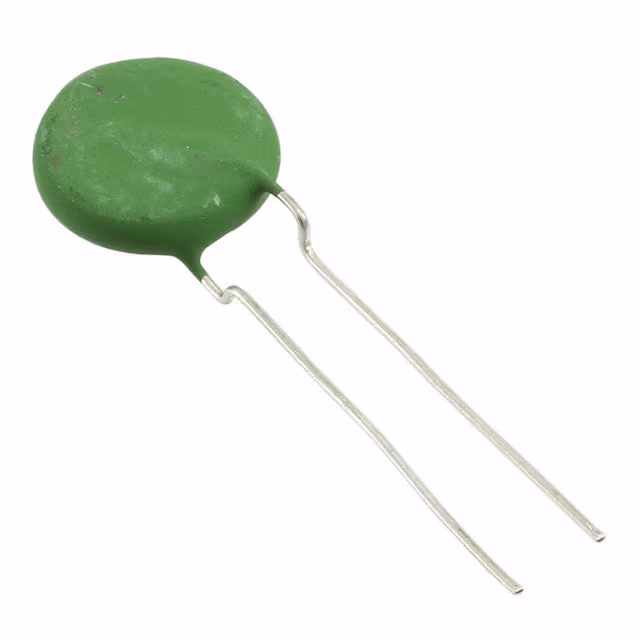

YQD120N0010PTC RESET FUSE 265V 250MA RADIAL |
8,702 | 1.42 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 250 mA | 500 mA | 1.8 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
|
COM-08357RESETTABLE FUSE PTC |
6,680 | 0.00 |
|
- |
Radial, Disc | - | Bulk | Active | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | 1.95 Ohms | - | - | - | - | Through Hole | 0.291" Dia (7.40mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

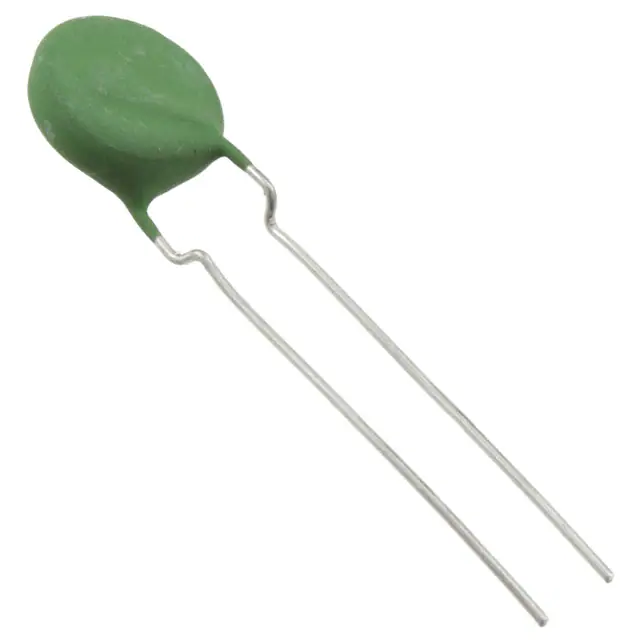

YQD120N0015PTC RESET FUSE 265V 180MA RADIAL |
5,296 | 1.42 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 180 mA | 350 mA | 1.2 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
YQS5917PTOPTC RESET FUSE 120V RADIAL DISC |
4,440 | 1.42 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Active | Ceramic | 120V | - | - | - | - | - | - | 20 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.650" Dia x 0.230" T (16.51mm x 5.84mm) | 0.728" (18.50mm) | - | 0.330" (8.38mm) |
|
|
PFRA.300.2PTC RESET FUSE 30V 3A RADIAL |
4,313 | 0.49 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
