PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402L035SLYRPTC RESET FUSE 6V 350MA 0402 |
9,115 | 0.00 |
|
Datasheet |
0402 (1005 Metric), Concave | LoRho Surface Mount | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 350 mA | 700 mA | 50 A | 100 ms | 50 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
YQS5920POCPTC RESET FUSE COATED 100 120V |
4,581 | 1.04 |
|
- |
- | YQ | Bulk | Active | Ceramic | - | - | - | - | - | - | - | 100 Ohms | - | - | - | - | - | - | - | - | - |
|
PTGL12AR100M6C01B0PTC RESET FUSE 140V 290MA RADIAL |
9,560 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 290 mA | 440 mA | 1 A | - | - | - | 10 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.512" Dia x 0.236" W (13.00mm x 6.00mm) | 0.748" (19.00mm) | - | 0.394" (10.00mm) |
|

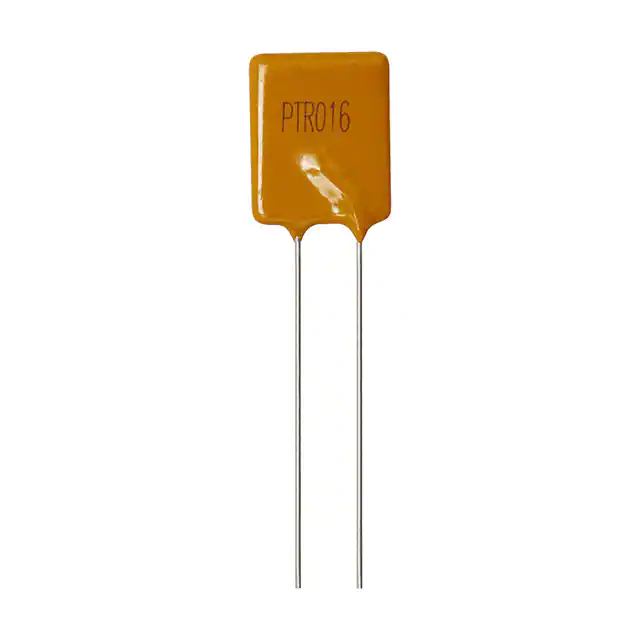

PTR016V1100-TRPTC RESET FUSE 16V 11A RADIAL |
8,055 | 0.42 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.024" (26.00mm) | - | 0.197" (5.00mm) |
|
MF-MSHT175KX-21812 HIGH TEMP SMD POLYMER PTC 1 |
9,597 | 1.13 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 9V | 1.75 A | 7 A | 40 A | 5 s | 18 mOhms | 170 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
|
|
MF-MSHT150KX-21812 HIGH TEMP SMD POLYMER PTC 1 |
5,823 | 1.13 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 9V | 1.5 A | 6 A | 40 A | 5 s | 22 mOhms | 200 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
|
|
MF-MSHT125KX-21812 HIGH TEMP SMD POLYMER PTC 1 |
6,321 | 1.13 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 9V | 1.25 A | 6.25 A | 40 A | 5 s | 30 mOhms | 300 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
|
YPCL0010TPTC RESET FUSE 265V 200MA RADIAL |
4,136 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 200 mA | 400 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.591" (15.00mm) | - | 0.200" (5.08mm) |
|
PTGL16AS101H0B02BZPTC RESET FUSE |
7,720 | 0.00 |
|
- |
- | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

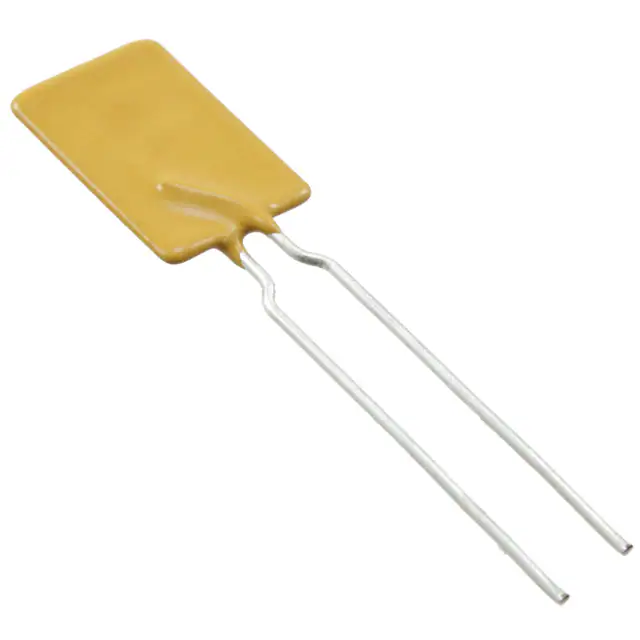

AHRF650-2PTC RESET FUSE 16V 6.5A RADIAL |
8,190 | 1.03 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Tape & Reel (TR) | Active | Polymeric | 16V | 6.5 A | 13.7 A | 100 A | 7 s | 9 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.200" (5.08mm) |
|
|
YPBJ3.70TPTC RESET FUSE 80V 170MA RADIAL |
7,792 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 170 mA | 350 mA | 5.5 A | - | - | - | 3.7 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) | 0.591" (15.00mm) | - | 0.200" (5.08mm) |
|
|
YQD120N0050PTC RESET FUSE 265V RADIAL DISC |
4,389 | 0.00 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | - | - | - | - | - | - | - | 0°C ~ 60°C | - | - | - | Through Hole | - | - | - | - |
|
|
YQD120N0055PTC RESET FUSE 265V 90MA RADIAL |
4,572 | 1.09 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 90 mA | 180 mA | 800 mA | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
TS250-130F-RA-2PTC RESET FUSE 60V 130MA 2SMD |
7,694 | 0.50 |
|
Datasheet |
2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 2.5 s | 6.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|
PTCCL07H411DTEPTC RESET FUSE 30V 410MA RADIAL |
6,755 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 410 mA | 615 mA | 4.5 A | - | - | - | 3 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.276" Dia x 0.157" T (7.00mm x 4.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL07H111HTEPTC RESET FUSE 265V 110MA RADIAL |
8,694 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 110 mA | 165 mA | 650 mA | - | - | - | 48 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.276" Dia x 0.217" T (7.00mm x 5.50mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL09H171HTEPTC RESET FUSE 265V 170MA RADIAL |
5,202 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 170 mA | 255 mA | 900 mA | - | - | - | 22 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.217" T (8.50mm x 5.50mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
.jpg)
|
RS30-400PTC RESET FUSE 30V 4A RADIAL |
4,004 | 0.59 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 4 A | 8 A | 100 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|

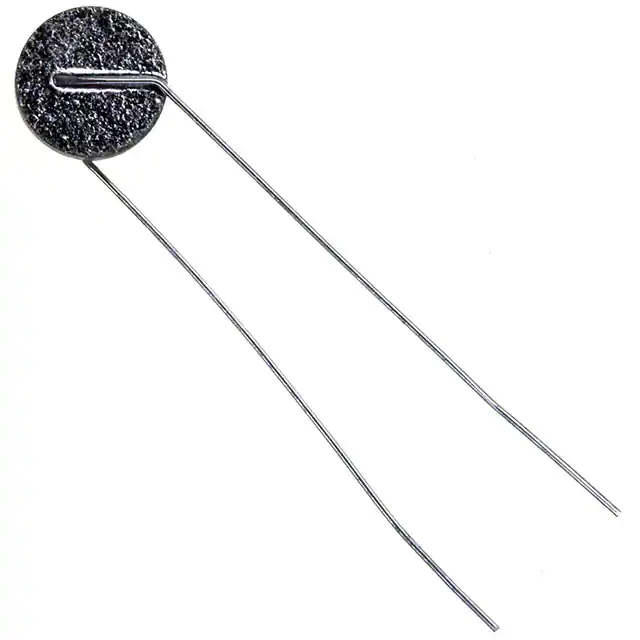

RL4510-50-120-120-PTOPTC RESET FUSE 120V RADIAL DISC |
5,931 | 0.00 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 120V | - | - | - | 70 s | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.500" Dia x 0.200" T (12.70mm x 5.08mm) | 0.500" (12.70mm) | - | 0.330" (8.38mm) |
|
|
YS5656PTC RESET FUSE RADIAL DISC |
4,051 | 1.11 |
|
- |
Radial, Disc | YS | Bulk | Active | Ceramic | - | - | - | - | - | - | - | 100 Ohms | - | - | - | - | Through Hole | - | - | - | - |
