PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YQS5679PTC RESET FUSE |
4,287 | 0.91 |
|
- |
- | YQ | Bulk | Active | Ceramic | - | - | - | - | - | - | - | 50 Ohms | - | - | - | - | - | - | - | - | - |
|
PTR060V0185-TRPTC RESET FUSE 60V 1.85A RADIAL |
2,315 | 0.38 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" Dia x 0.118" T (17.80mm x 3.00mm) | 0.902" (22.90mm) | - | 0.197" (5.00mm) |
|
|
TS600-200-RA-B-0.5-2PTC RESET FUSE 60V 200MA 2SMD |
4,715 | 0.00 |
|
Datasheet |
2-SMD | PolySwitch®, TS600 | Tape & Reel (TR) | Obsolete | Polymeric | 60V (600V Int) | 200 mA | 400 mA | 3 A | 12 s | 4 Ohms | 13.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.742" L x 0.297" W (18.85mm x 7.55mm) | - | 0.484" (12.30mm) | - |
|
RL3006-50-60-25-PT4PTC RESET FUSE 25V RADIAL DISC |
6,630 | 0.00 |
|
- |
Radial, Disc | - | Bulk | Obsolete | - | 25V | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|
PTCCL05H111FTEPTC RESET FUSE 145V 110MA RADIAL |
9,005 | 1.31 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Cut Tape (CT) | Active | Ceramic | 145V | 110 mA | 165 mA | 500 mA | - | - | - | 40 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
YQB120N9.40PTC RESET FUSE 80V 180MA RADIAL |
7,134 | 0.00 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 80V | 180 mA | 360 mA | 3 A | - | - | - | 9.4 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | - | - | - | 0.201" (5.10mm) |
|
|
PTCCL05H940ETEPTC RESET FUSE 60V 94MA RADIAL |
6,657 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 60V | Tape & Reel (TR) | Active | Ceramic | 60V | 94 mA | 145 mA | 800 mA | - | - | - | 50 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.197" Dia x 0.157" T (5.00mm x 4.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H131ETEPTC RESET FUSE 60V 130MA RADIAL |
9,882 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 60V | Tape & Reel (TR) | Active | Ceramic | 60V | 130 mA | 195 mA | 1.2 A | - | - | - | 25 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.197" Dia x 0.157" T (5.00mm x 4.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H930FTEPTC RESET FUSE 145V 93MA RADIAL |
3,441 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Tape & Reel (TR) | Active | Ceramic | 145V | 93 mA | 140 mA | 450 mA | - | - | - | 55 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H950HTEPTC RESET FUSE 265V 95MA RADIAL |
9,559 | 1.40 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 95 mA | 143 mA | 600 mA | - | - | - | 56 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.217" T (5.00mm x 5.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

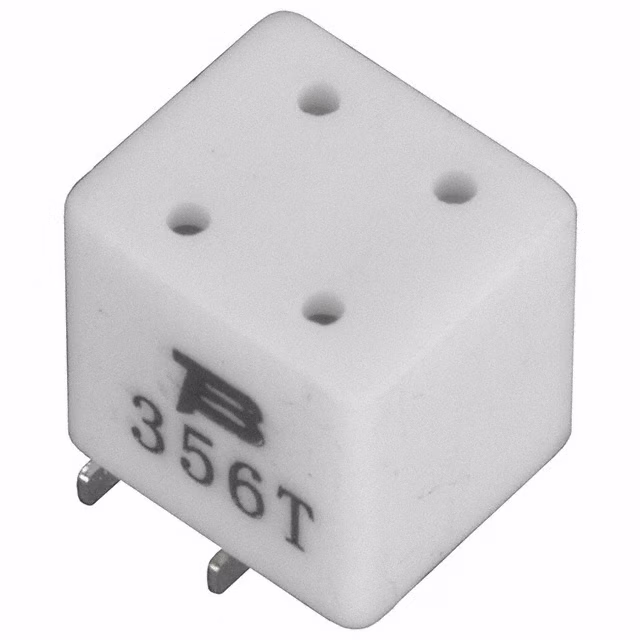

CMF-SD35A-2PTC RESET FUSE 230V 100MA 4SMD |
3,472 | 0.00 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 100 mA | 200 mA | 2.5 A | 200 ms | - | - | 35 Ohms | - | - | - | - | Surface Mount | 0.319" L x 0.282" W (8.10mm x 7.15mm) | - | 0.335" (8.50mm) | - |
|

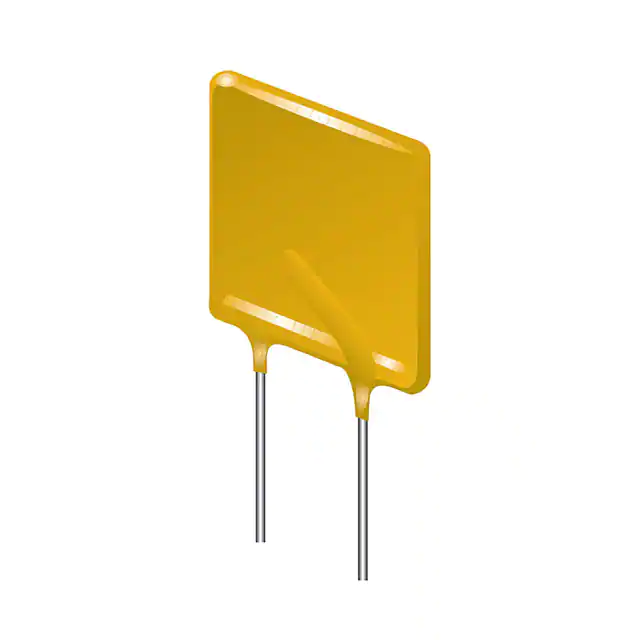

MF-RG650-2PTC RESET FUSE 16V 6.5A RADIAL |
2,684 | 1.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 6.5 A | 11.1 A | 100 A | 3.5 s | 8.8 mOhms | 24 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
1210L600SL-VYRPTC RESET FUSE 6V 6A 1210 |
9,005 | 1.02 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 6 A | 12 A | 50 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
1210L700SLWRPTC RESET FUSE 6V 7A 1210 |
2,973 | 1.02 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 7 A | 14 A | 50 A | - | - | - | - | 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | - | - |
|

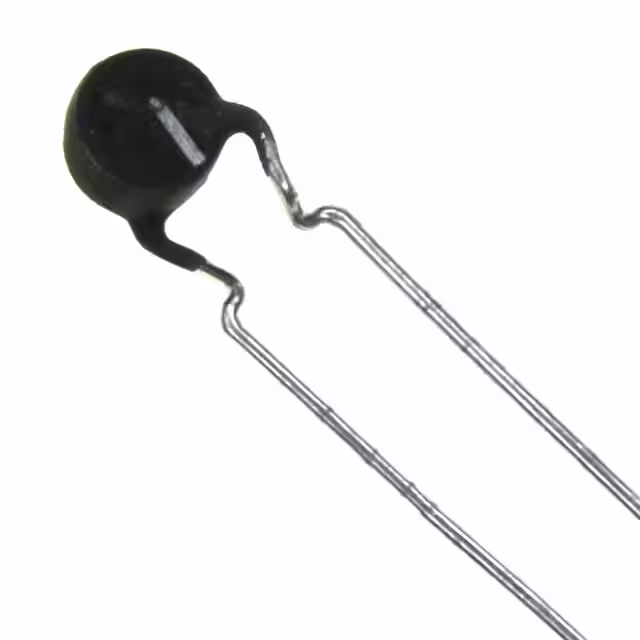

YM120C80N101PTC RESET FUSE 265V 65MA RADIAL |
9,852 | 0.00 |
|
Datasheet |
Radial, Disc | YM | Bulk | Obsolete | Ceramic | 265V | 65 mA | 98 mA | 400 mA | - | - | - | 100 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.177" Dia x 0.177" T (4.50mm x 4.50mm) | 0.256" (6.50mm) | - | 0.200" (5.08mm) |
|
YM120D105N600PTC RESET FUSE 265V 93MA RADIAL |
6,339 | 0.00 |
|
Datasheet |
Radial, Disc | YM | Bulk | Obsolete | Ceramic | 265V | 93 mA | 131 mA | 600 mA | - | - | - | 60 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.236" Dia x 0.177" T (6.00mm x 4.50mm) | 0.335" (8.50mm) | - | 0.200" (5.08mm) |
|
|
LVR075K-1PTC RESET FUSE 240V 750MA RADIAL |
8,142 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Obsolete | Polymeric | 240V (265V Int) | 750 mA | 1.5 A | 7.5 A | 18 s | 316 mOhms | 839 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.450" L x 0.189" W (11.43mm x 4.80mm) | 1.000" (25.40mm) | - | 0.200" (5.08mm) |
|
|
1812L750/12SLDRPTC 12V POLYFUSE SURF MOUNT 1812 |
3,692 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2322 661 93148PTC RESET FUSE 250V 70MA RADIAL |
8,034 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 250V | 70 mA | 175 mA | 3.2 A | 1.3 s | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.276" Dia x 0.157" T (7.00mm x 4.00mm) | 0.386" (9.80mm) | - | 0.197" (5.00mm) |
|
|
PFRA.017.2PTC RESET FUSE 60V 170MA RADIAL |
3,096 | 0.32 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
