PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUE110PTC RESET FUSE 30V 1.1A RADIAL |
8,749 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
RUE500PTC RESET FUSE 30V 5A RADIAL |
7,219 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.120" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
RUE300PTC RESET FUSE 30V 3A RADIAL |
7,850 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.681" (17.30mm) | - | 0.201" (5.10mm) |
|
RUE090PTC RESET FUSE 30V 900MA RADIAL |
7,592 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
RXE160PTC RESET FUSE 60V 1.6A RADIAL |
4,412 | 0.00 |
|
- |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.819" (20.80mm) | - | 0.199" (5.05mm) |
|
RXE110PTC RESET FUSE 72V 1.1A RADIAL |
5,283 | 0.00 |
|
- |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | - | - | - | - | Through Hole | 0.504" Dia x 0.118" T (12.80mm x 3.00mm) | 0.689" (17.50mm) | - | 0.199" (5.05mm) |
|
RXE017PTC RESET FUSE 60V 170MA RADIAL |
3,178 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
|
RUE250PTC RESET FUSE 30V 2.5A RADIAL |
6,043 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
RXE375PTC RESET FUSE 72V 3.75A RADIAL |
2,682 | 0.00 |
|
- |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | - | - | - | - | Through Hole | 1.071" Dia x 0.118" T (27.20mm x 3.00mm) | 1.252" (31.80mm) | - | 0.400" (10.15mm) |
|
RXE185PTC RESET FUSE 72V 1.85A RADIAL |
9,281 | 0.00 |
|
- |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | - | - | - | - | Through Hole | 0.689" Dia x 0.118" T (17.50mm x 3.00mm) | 0.882" (22.40mm) | - | 0.199" (5.05mm) |
|

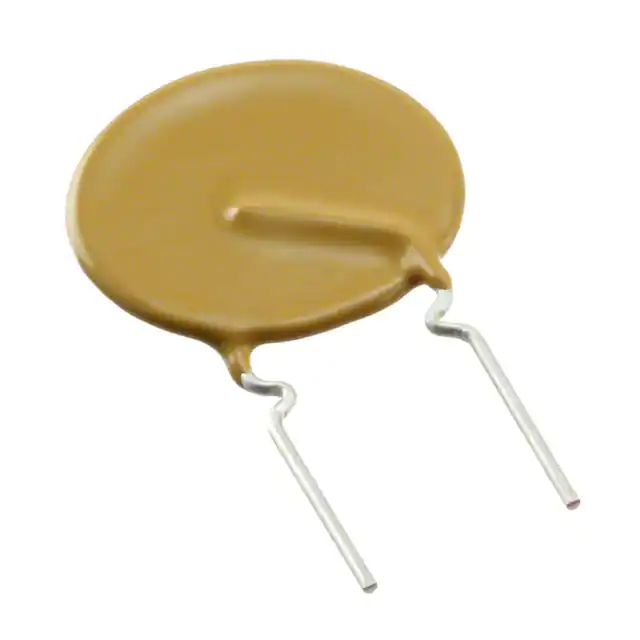

RXE250PTC RESET FUSE 72V 2.5A RADIAL |
4,358 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | - | - | - | - | Through Hole | 0.819" Dia x 0.118" T (20.80mm x 3.00mm) | 1.000" (25.40mm) | - | 0.400" (10.15mm) |
|
|
RUE135PTC RESET FUSE 30V 1.35A RADIAL |
7,947 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
RXE010PTC RESET FUSE 60V 100MA RADIAL |
8,661 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
|
RUE900PTC RESET FUSE 30V 9A RADIAL |
9,464 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 9 A | 18 A | 40 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.120" W (24.10mm x 3.00mm) | 1.169" (29.70mm) | - | 0.402" (10.20mm) |
|
|
RUE600PTC RESET FUSE 30V 6A RADIAL |
3,340 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
RUE700PTC RESET FUSE 30V 7A RADIAL |
2,306 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.051" (26.70mm) | - | 0.402" (10.20mm) |
|

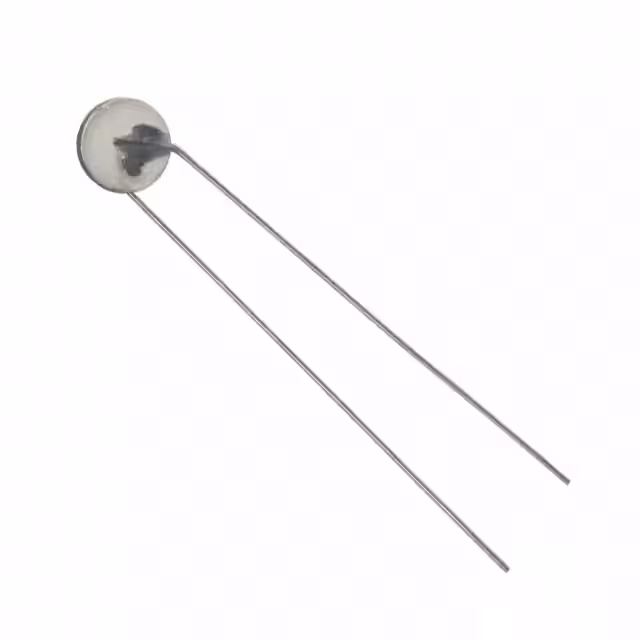

RL3020-1500-100-240-PTOPTC RESET FUSE 240V RADIAL DISC |
7,511 | 0.00 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 240V | - | - | - | 60 s | - | - | 1.5 kOhms | - | - | - | - | Through Hole | 0.350" Dia x 0.310" T (8.89mm x 7.87mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|
30R700UFPTC RESET FUSE 30V 7A RADIAL |
4,637 | 0.74 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Bulk | Obsolete | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.126" (28.60mm) | - | 0.402" (10.20mm) |
|
MF-R090-0-009PTC RESET FUSE 30V 900MA RADIAL |
6,655 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
|
MF-R250-0-010PTC RESET FUSE 30V 2.5A RADIAL |
9,364 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
