PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YPAL0.45NPTC RESET FUSE 30V 8A RADIAL |
8,055 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPAL1.20NPTC RESET FUSE 30V 600MA RADIAL |
7,542 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
|
YPAL4.60NPTC RESET FUSE 30V 250MA RADIAL |
3,544 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 250 mA | 500 mA | 1 A | - | - | - | 4.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0025NPTC RESET FUSE 265V 100MA RADIAL |
9,094 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0035NPTC RESET FUSE 265V 80MA RADIAL |
8,840 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 80 mA | 160 mA | 1 A | - | - | - | 35 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0055NPTC RESET FUSE 265V 60MA RADIAL |
6,917 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 60 mA | 125 mA | 1 A | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0065NPTC RESET FUSE 265V 55MA RADIAL |
6,067 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 55 mA | 110 mA | 1 A | - | - | - | 65 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
RUE400-1PTC RESET FUSE 30V 4A RADIAL |
7,585 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.120" W (14.00mm x 3.00mm) | 0.831" (21.10mm) | - | 0.201" (5.10mm) |
|
RXE050-1PTC RESET FUSE 72V 500MA RADIAL |
9,724 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
|
RXE010SPTC RESET FUSE 60V 100MA RADIAL |
7,866 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
|
RXE050SPTC RESET FUSE 72V 500MA RADIAL |
8,159 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|

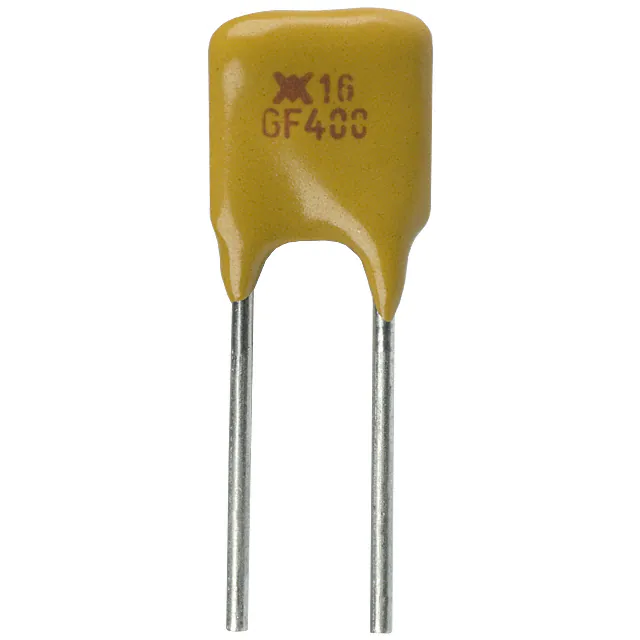

RGE400PTC RESET FUSE 16V 4A RADIAL |
7,198 | 0.00 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | - | - | - | - | Through Hole | 0.331" L x 0.098" W (8.40mm x 2.50mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
RGE600PTC RESET FUSE 16V 6A RADIAL |
9,513 | 0.00 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | - | - | - | - | Through Hole | 0.402" L x 0.098" W (10.20mm x 2.50mm) | 0.673" (17.10mm) | - | 0.199" (5.05mm) |
|

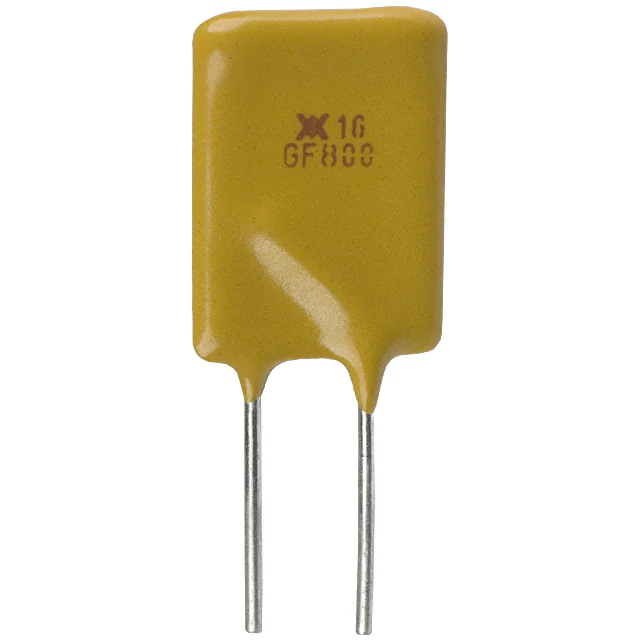

RGE800PTC RESET FUSE 16V 8A RADIAL |
7,972 | 0.00 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 6 mOhms | 18 mOhms | - | - | - | - | - | Through Hole | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.823" (20.90mm) | - | 0.199" (5.05mm) |
|

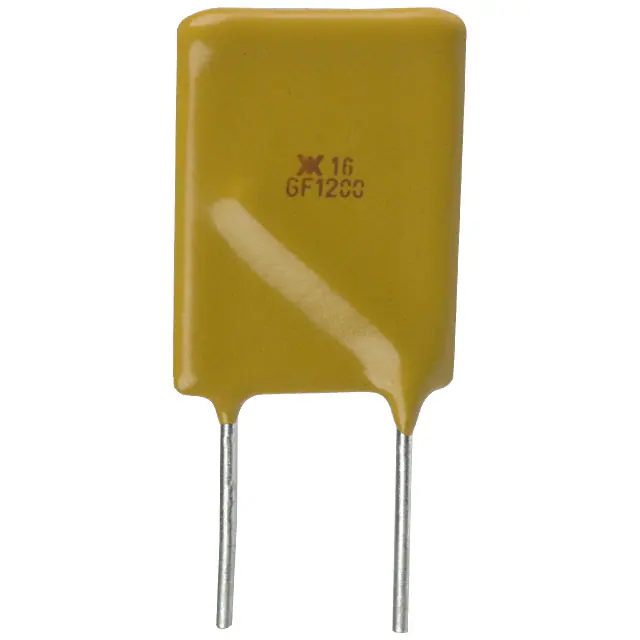

RGE1200PTC RESET FUSE 16V 12A RADIAL |
9,322 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | - | - | - | - | - | - | Through Hole | 0.670" L x 0.115" W (16.95mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|

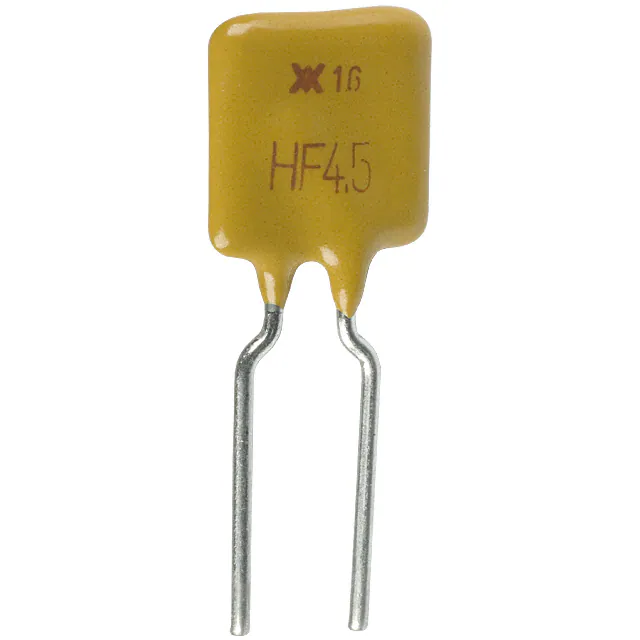

RHE450PTC RESET FUSE 16V 4.5A RADIAL |
4,693 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 3.6 Ohms | - | - | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.199" (5.05mm) |
|
|
RHE600PTC RESET FUSE 16V 6A RADIAL |
9,500 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 4.1 Ohms | - | - | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.199" (5.05mm) |
|

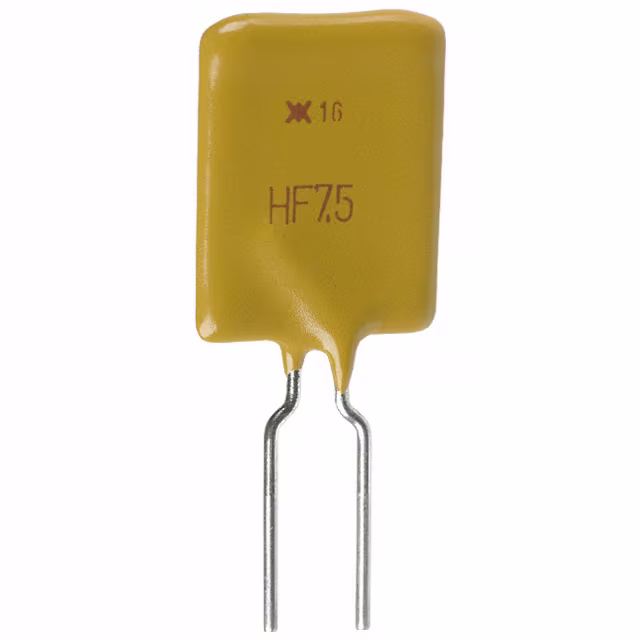

RHE750PTC RESET FUSE 16V 7.5A RADIAL |
7,423 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 4.5 Ohms | - | - | - | - | - | Through Hole | 0.551" L x 0.120" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.199" (5.05mm) |
|

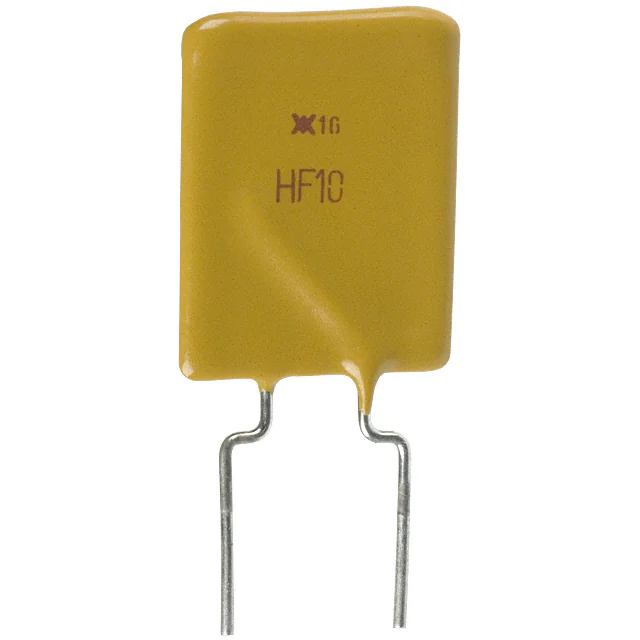

RHE1000PTC RESET FUSE 16V 10A RADIAL |
6,616 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | - | - | - | - | - | - | Through Hole | 0.689" L x 0.120" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|

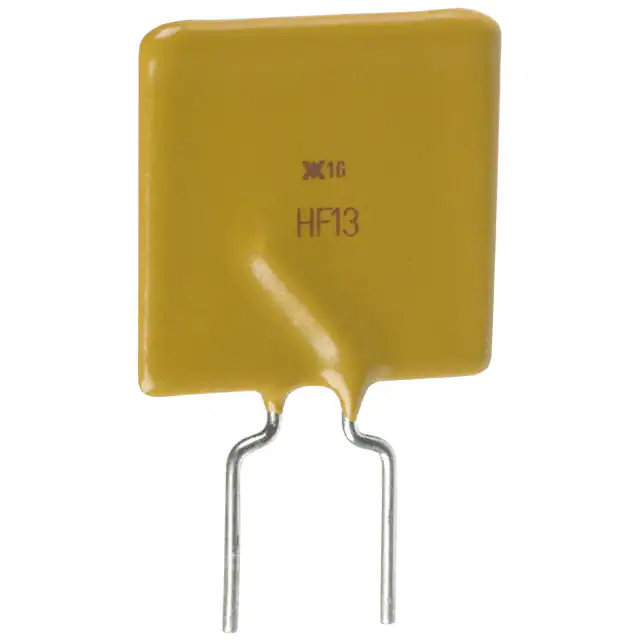

RHE1300PTC RESET FUSE 16V 13A RADIAL |
8,811 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | - | - | - | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
