PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUSB110PTC RESET FUSE 16V 1.1A RADIAL |
6,207 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | - | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.199" (5.05mm) |
|
|
RUSB160PTC RESET FUSE 16V 1.6A RADIAL |
2,602 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 1.6 A | 3.2 A | 40 A | 9 s | 300 mOhms | 110 mOhms | - | - | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|
|
RUSB185PTC RESET FUSE 16V 1.85A RADIAL |
8,391 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | - | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.199" (5.05mm) |
|
TR250-145-RA-C-0.5PTC RESET FUSE 60V 145MA RADIAL |
8,150 | 0.00 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | - | 60V | 145 mA | - | 3 A | 2.5 s | - | - | - | - | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
RXE005PTC RESET FUSE 60V 50MA RADIAL |
5,577 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 20 Ohms | - | - | - | - | - | Through Hole | 0.315" Dia x 0.118" T (8.00mm x 3.00mm) | 0.327" (8.30mm) | - | 0.199" (5.05mm) |
|
|
PTSB-R100-V12PTC RESET FUSE 12V 170MA 2SMD |
9,437 | 0.00 |
|
Datasheet |
2-SMD | PTSM | Bulk | Active | Ceramic | 12V | 170 mA | 340 mA | - | - | - | - | 10 Ohms | - | - | - | - | Surface Mount | 0.300" L x 0.300" W (7.62mm x 7.62mm) | - | 0.185" (4.70mm) | - |
|

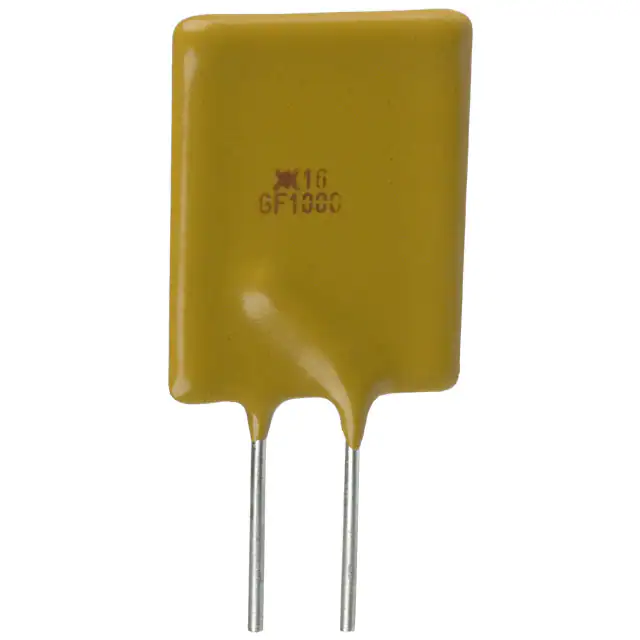

RGE1000PTC RESET FUSE 16V 10A RADIAL |
4,453 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | - | - | - | - | - | - | Through Hole | 0.630" L x 0.098" W (16.00mm x 2.50mm) | 0.992" (25.20mm) | - | 0.199" (5.05mm) |
|

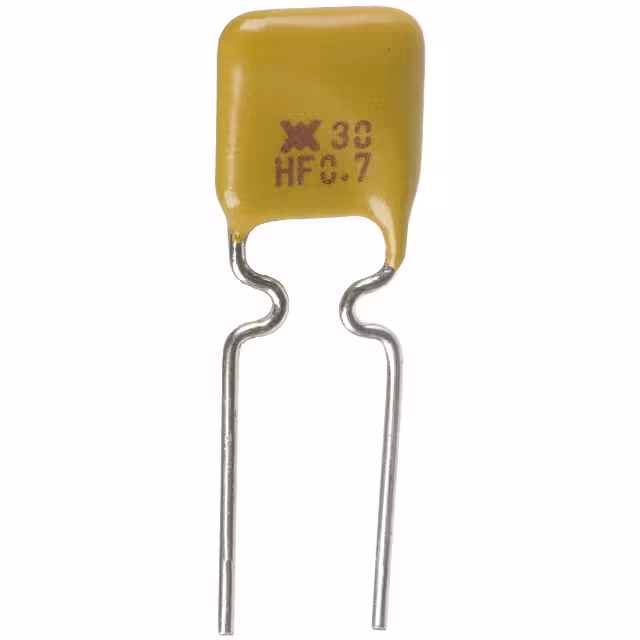

RHE070PTC RESET FUSE 16V 700MA RADIAL |
7,956 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 700 mA | 1.4 A | 40 A | 4 s | 300 mOhms | 1.4 Ohms | - | - | - | - | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.199" (5.05mm) |
|

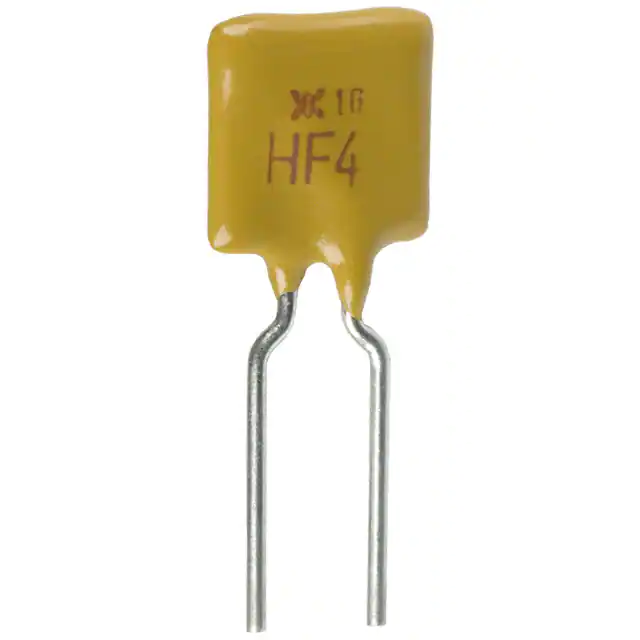

RHE400PTC RESET FUSE 16V 4A RADIAL |
8,419 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 4 A | 7 A | 100 A | 8 s | 18 mOhms | 44 mOhms | - | - | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.709" (18.00mm) | - | 0.199" (5.05mm) |
|
|
RHE650PTC RESET FUSE 16V 6.5A RADIAL |
8,230 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 4.3 Ohms | - | - | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|

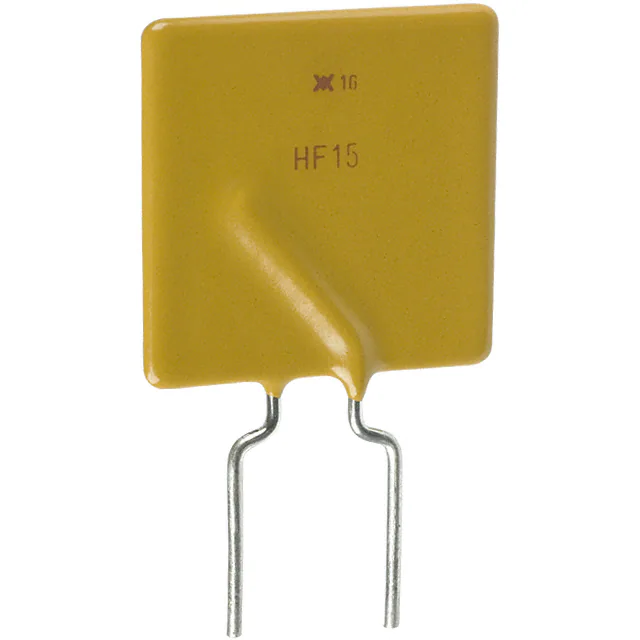

RHE1500PTC RESET FUSE 16V 15A RADIAL |
5,893 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 15 A | 28 A | 100 A | 20 s | 3.2 mOhms | - | - | - | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
|
RLD30P090UFPTC RESET FUSE 30V 900MA RADIAL |
2,775 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
|
RLD30P110UFPTC RESET FUSE 30V 1.1A RADIAL |
2,197 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
|
RLD30P135UFPTC RESET FUSE 30V 1.35A RADIAL |
8,659 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
RLD30P160UFPTC RESET FUSE 30V 1.6A RADIAL |
2,705 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
RLD30P185UFPTC RESET FUSE 30V 1.85A RADIAL |
9,550 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
|
RLD30P250UFPTC RESET FUSE 30V 2.5A RADIAL |
5,635 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
RLD30P300UFPTC RESET FUSE 30V 3A RADIAL |
5,526 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.681" (17.30mm) | - | 0.201" (5.10mm) |
|
|
RLD30P400UFPTC RESET FUSE 30V 4A RADIAL |
8,725 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
|
RLD30P500UFPTC RESET FUSE 30V 5A RADIAL |
9,050 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD30 | Tape & Box (TB) | Obsolete | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
