PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

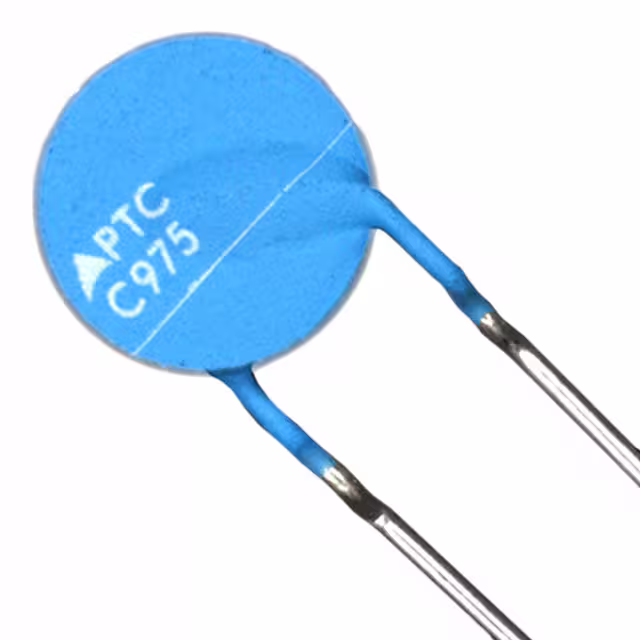

B59975C160A51PTC RESET FUSE 20V 550MA RADIAL |
2,292 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 20V | 550 mA | 1.1 A | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59975C0160A054PTC RESET FUSE 20V 550MA RADIAL |
2,235 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 20V | 550 mA | 1.1 A | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|

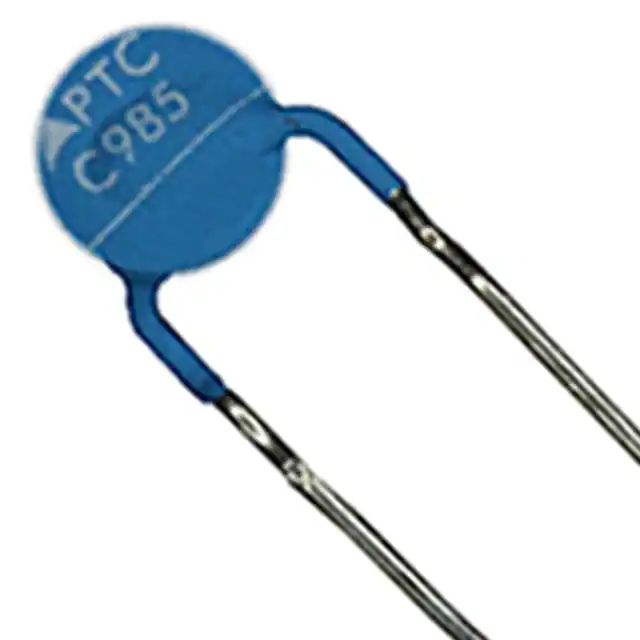

B59985C0160A051PTC RESET FUSE 20V 300MA RADIAL |
2,300 | 0.41 |
|
Datasheet |
Radial, Disc | B59985 | Tape & Reel (TR) | Obsolete | Ceramic | 20V | 300 mA | 600 mA | 1 A | - | - | - | 4.6 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

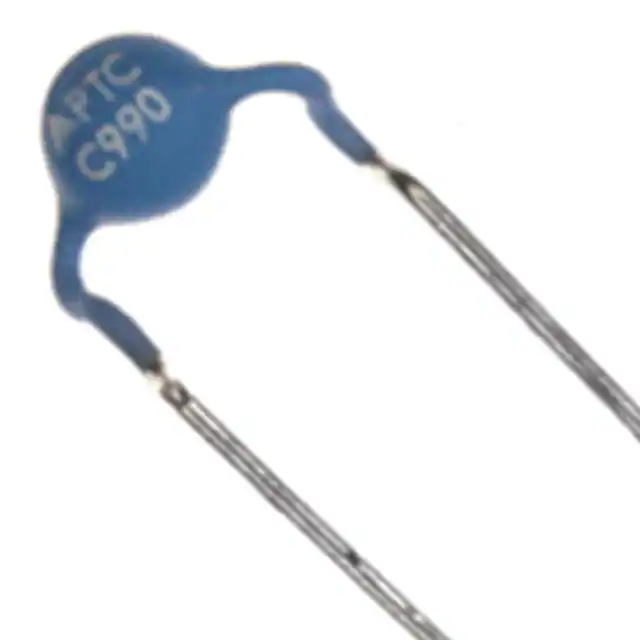

B59990C0120A050PTC RESET FUSE 80V 50MA RADIAL |
2,797 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 50 mA | 100 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|

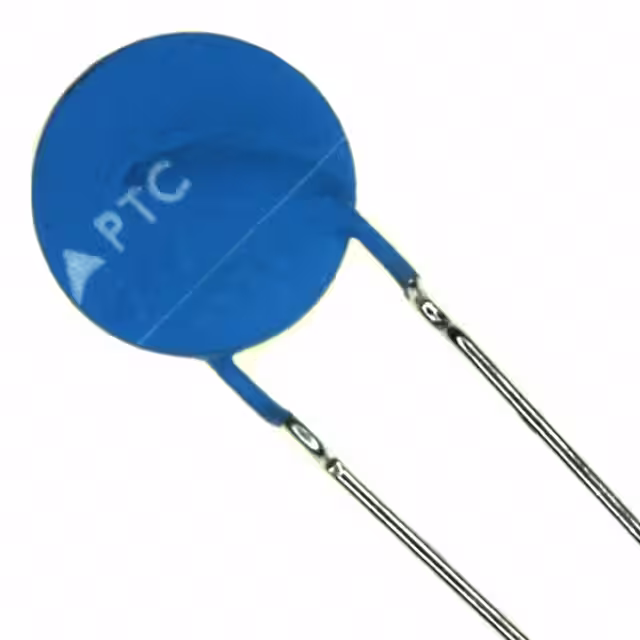

B59965C0120A054PTC RESET FUSE 30V 600MA RADIAL |
5,083 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
B59870C130A51PTC RESET FUSE 265V 100MA RADIAL |
7,027 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 100 mA | 150 mA | 400 mA | - | - | - | 50 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

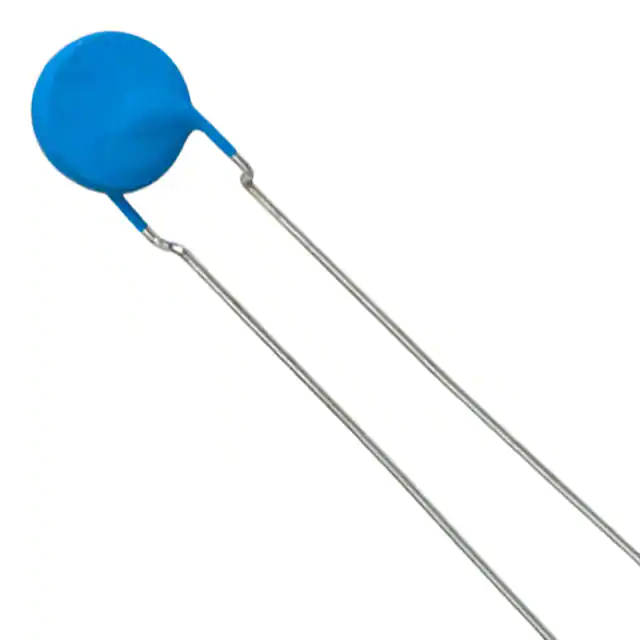

B59890C80A51PTC RESET FUSE 265V 15MA RADIAL |
9,885 | 0.00 |
|
- |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 15 mA | 40 mA | 200 mA | - | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.197" T (4.00mm x 5.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
|
B59890C0080A053PTC RESET FUSE 265V 15MA RADIAL |
2,344 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 15 mA | 40 mA | 200 mA | - | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.197" T (4.00mm x 5.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|

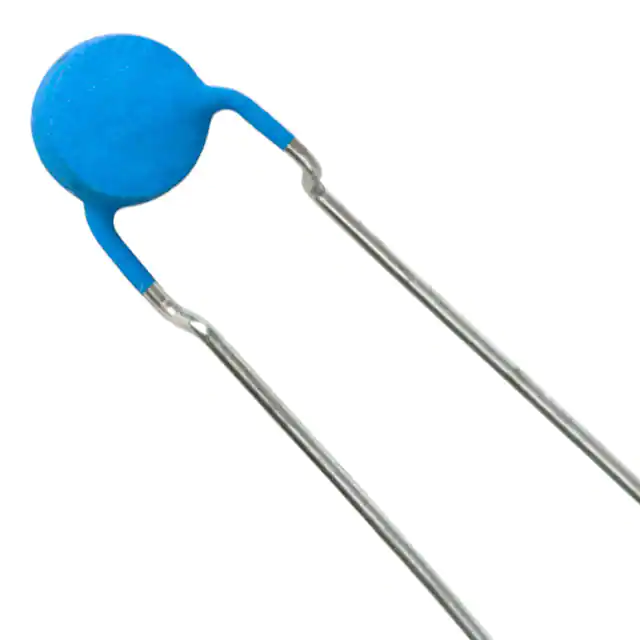

B59884C0120A051PTC RESET FUSE 420V 21MA RADIAL |
4,066 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 420V | 21 mA | 39 mA | 200 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
B59880C80A51PTC RESET FUSE 265V 30MA RADIAL |
3,299 | 0.00 |
|
- |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 30 mA | 70 mA | 400 mA | - | - | - | 70 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
B59960C0080A051PTC RESET FUSE 80V 130MA RADIAL |
2,297 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 130 mA | 265 mA | 4.3 A | - | - | - | 5.6 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
B59965C0160A054PTC RESET FUSE 20V 700MA RADIAL |
7,588 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 20V | 700 mA | 1.45 A | 4.3 A | - | - | - | 1.2 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
B59965C120A51PTC RESET FUSE 30V 600MA RADIAL |
5,051 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
B59960C0120A054PTC RESET FUSE 80V 250MA RADIAL |
8,491 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 250 mA | 500 mA | 4.3 A | - | - | - | 5.6 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
HVR250P145CFPTC RESET FUSE 60V 145MA RADIAL |
9,302 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, HVR250 | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" Dia x 0.201" T (6.00mm x 5.10mm) | 0.492" (12.50mm) | - | 0.217" (5.50mm) |
|
|
HVR250P120UFPTC RESET FUSE 60V 120MA RADIAL |
3,040 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, HVR250 | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" Dia x 0.201" T (6.00mm x 5.10mm) | 0.394" (10.00mm) | - | 0.217" (5.50mm) |
|
|
HVR250P120CRCFPTC RESET FUSE 60V 120MA RADIAL |
9,292 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, HVR250 | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 850 ms | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.268" Dia x 0.201" T (6.80mm x 5.10mm) | 0.492" (12.50mm) | - | 0.217" (5.50mm) |
|
|
HVR250P180UFPTC RESET FUSE 60V 180MA RADIAL |
3,340 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, HVR250 | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 180 mA | 650 mA | 10 A | 15 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.201" W (10.40mm x 5.10mm) | 0.520" (13.20mm) | - | 0.217" (5.50mm) |
|
|
HVR250P180CFPTC RESET FUSE 60V 180MA RADIAL |
2,826 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, HVR250 | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 180 mA | 650 mA | 3 A | 21 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.201" W (12.00mm x 5.10mm) | 0.520" (13.20mm) | - | 0.217" (5.50mm) |
|
|
HVR250P120CR2FPTC RESET FUSE 60V 120MA RADIAL |
2,110 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, HVR250 | Tape & Box (TB) | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 700 ms | 8 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.268" Dia x 0.201" T (6.80mm x 5.10mm) | 0.492" (12.50mm) | - | 0.217" (5.50mm) |
