PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFLR.600PTC RESET FUSE 10V 6A STRAP |
4,073 | 0.00 |
|
Datasheet |
Strap | PFLR | Bulk | Obsolete | Polymeric | 10V | 6 A | 11.7 A | 100 A | 5 s | 7 mOhms | 16 mOhms | - | -45°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.559" W (25.00mm x 14.20mm) | - | - | - |
|
|
PFVS.170PTC RESET FUSE 16V 1.7A STRAP |
5,149 | 0.00 |
|
Datasheet |
Strap | PFVS | Bulk | Obsolete | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 3 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.679" L x 0.201" W (17.25mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|
|
PFRX.300PTC RESET FUSE 60V 3A RADIAL |
3,525 | 0.00 |
|
Datasheet |
Radial, Disc | PFRX | Bulk | Obsolete | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia x 0.122" T (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
|
PFLR.730PTC RESET FUSE 10V 7.3A STRAP |
8,180 | 0.00 |
|
Datasheet |
Strap | PFLR | Bulk | Obsolete | Polymeric | 10V | 7.3 A | 14.1 A | 100 A | 5 s | 6 mOhms | 15 mOhms | - | -45°C ~ 85°C | - | - | - | User Defined | 1.085" L x 0.559" W (27.55mm x 14.20mm) | - | - | - |
|
|
PFRX.375PTC RESET FUSE 60V 3.75A RADIAL |
4,327 | 0.00 |
|
Datasheet |
Radial, Disc | PFRX | Bulk | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" Dia x 0.122" T (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
|
PFRT.018.250.UPTC RESET FUSE 60V 180MA RADIAL |
3,094 | 0.00 |
|
Datasheet |
Radial, Disc | PFRT | Bulk | Obsolete | Polymeric | 60V (250V Int) | 180 mA | - | 10 A | - | 800 mOhms | 4 Ohms | - | -45°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.201" (5.10mm) |
|
B59830C80A70PTC RESET FUSE 265V 250MA RADIAL |
8,489 | 0.00 |
|
- |
Radial, Disc | - | Bulk | Obsolete | Ceramic | 265V | 250 mA | 510 mA | 7 A | - | - | - | - | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
|
B59940C80A70PTC RESET FUSE 80V 245MA RADIAL |
7,165 | 0.00 |
|
Datasheet |
Radial, Disc | - | Bulk | Obsolete | Ceramic | 80V | 245 mA | 500 mA | 8 A | - | - | - | 2.3 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.866" Dia x 0.138" T (22.00mm x 3.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
|
B59935C0160A070PTC RESET FUSE 20V 2.1A RADIAL |
8,356 | 0.00 |
|
Datasheet |
Radial, Disc | - | Bulk | Obsolete | Ceramic | 20V | 2.1 A | 4.15 A | 10 A | - | - | - | 300 mOhms | -40°C ~ 85°C | - | - | - | Through Hole | 0.866" Dia x 0.138" T (22.00mm x 3.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
B59860C120A54PTC RESET FUSE 265V 140MA RADIAL |
2,286 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 140 mA | 280 mA | 1.5 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
B59955C0120A051PTC RESET FUSE 30V 850MA RADIAL |
8,361 | 0.74 |
|
Datasheet |
Radial, Disc | B59955 | Tape & Reel (TR) | Obsolete | Ceramic | 30V | 850 mA | 1.7 A | 5.5 A | - | - | - | 800 mOhms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|

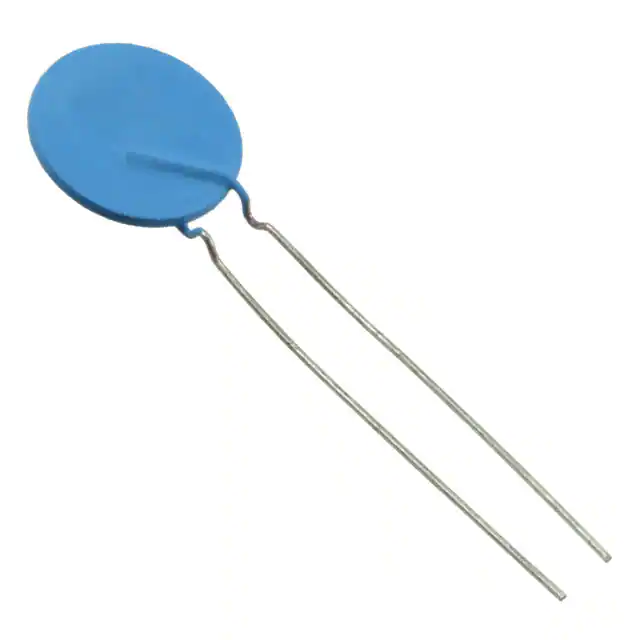

B59945C0120A051PTC RESET FUSE 30V 1.3A RADIAL |
8,950 | 0.93 |
|
Datasheet |
Radial, Disc | B59945 | Tape & Reel (TR) | Obsolete | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
|
B59860C160A51PTC RESET FUSE 160V 180MA RADIAL |
9,668 | 0.00 |
|
- |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 160V | 180 mA | 360 mA | 1.5 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
B59880C0120A054PTC RESET FUSE 265V 55MA RADIAL |
3,489 | 0.53 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 55 mA | 110 mA | 400 mA | - | - | - | 70 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
B59874C0120A051PTC RESET FUSE 265V 60MA RADIAL |
2,441 | 0.69 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 60 mA | 125 mA | 1 A | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59875C0120A051PTC RESET FUSE 265V 55MA RADIAL |
7,739 | 0.66 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 55 mA | 110 mA | 1 A | - | - | - | 65 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
B59890C0080A054PTC RESET FUSE 265V 15MA RADIAL |
5,374 | 0.43 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 15 mA | 40 mA | 200 mA | - | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.197" T (4.00mm x 5.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
|
B59870C160A51PTC RESET FUSE 160V 125MA RADIAL |
9,652 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 160V | 125 mA | 250 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|

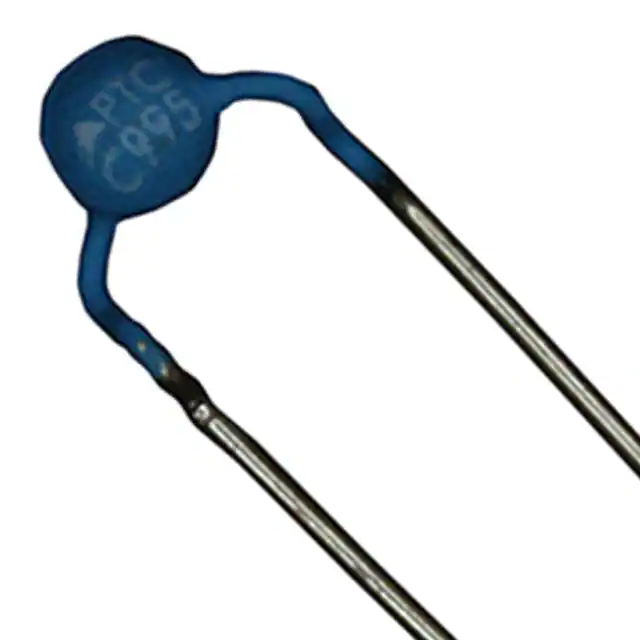

B59995C0160A051PTC RESET FUSE 20V 150MA RADIAL |
6,140 | 0.33 |
|
Datasheet |
Radial, Disc | B59995 | Tape & Reel (TR) | Obsolete | Ceramic | 20V | 150 mA | 300 mA | 700 mA | - | - | - | 13 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|

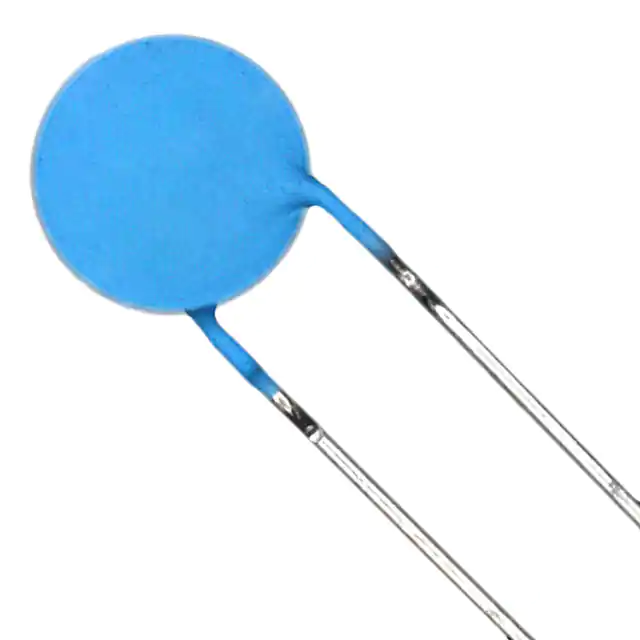

B59970C0080A051PTC RESET FUSE 80V 90MA RADIAL |
7,742 | 0.54 |
|
Datasheet |
Radial, Disc | B59970 | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 90 mA | 190 mA | 3 A | - | - | - | 9.4 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
