PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLD60P375XFPTC RESET FUSE 60V 3.75A RADIAL |
9,017 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" Dia x 0.122" T (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|

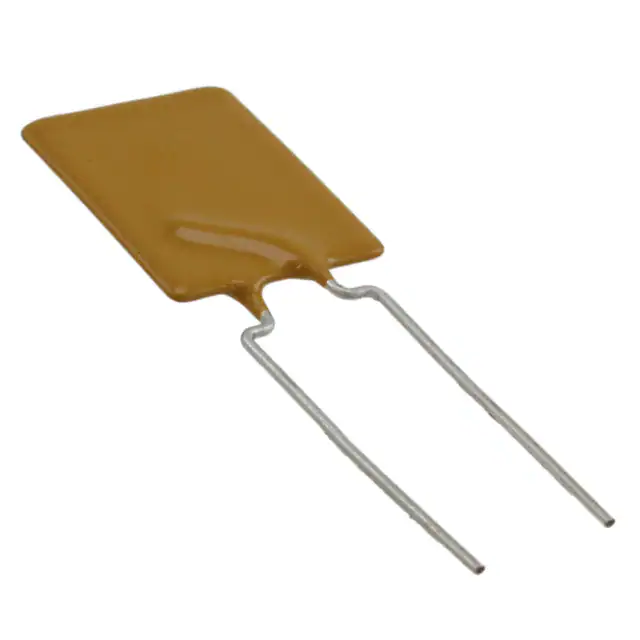

AHR1000PTC RESET FUSE 16V 10A RADIAL |
3,609 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHR | Bulk | Obsolete | Polymeric | 16V | 10 A | 20.5 A | 100 A | 10.5 s | 5.1 mOhms | 10.5 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
RUSB155PTC RESET FUSE 6V 1.55A RADIAL |
4,996 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 6V | 1.55 A | 2.65 A | 40 A | 2.2 s | 40 mOhms | 100 mOhms | - | - | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
|

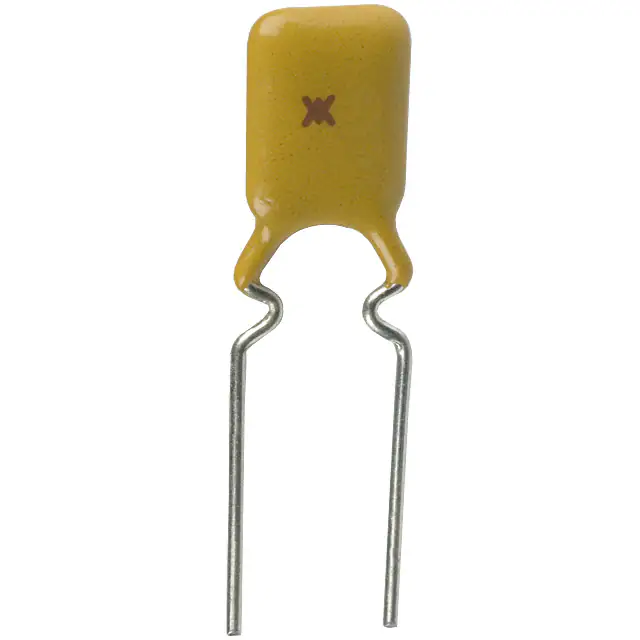

RTE120PTC RESET FUSE 33V 1.2A RADIAL |
4,154 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 33V | 1.2 A | 2.3 A | 40 A | 3.5 s | 74 mOhms | 180 mOhms | - | - | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
|
RTE135PTC RESET FUSE 33V 1.35A RADIAL |
3,782 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 33V | 1.35 A | 2.5 A | 40 A | 4.5 s | 59 mOhms | 143 mOhms | - | - | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.199" (5.05mm) |
|
|
RTE190PTC RESET FUSE 33V 1.9A RADIAL |
4,450 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 33V | 1.9 A | 3 A | 40 A | 3.5 s | 45 mOhms | 92 mOhms | - | - | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
MF-R055/90-0PTC RESET FUSE 90V 550MA RADIAL |
8,905 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R/90 | Bulk | Obsolete | Polymeric | 90V | 550 mA | 1.1 A | 10 A | 60 s | 450 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.429" Dia x 0.142" T (10.90mm x 3.60mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R055/90U-0PTC RESET FUSE 90V 550MA RADIAL |
5,176 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R/90 | Bulk | Obsolete | Polymeric | 90V | 550 mA | 1.1 A | 10 A | 28 s | 450 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.429" Dia x 0.142" T (10.90mm x 3.60mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
|
PFRA.017.3PTC RESET FUSE 60V 170MA RADIAL |
5,162 | 0.00 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Box (TB) | Obsolete | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
PFRA.025.3PTC RESET FUSE 60V 250MA RADIAL |
8,286 | 0.00 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Box (TB) | Obsolete | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
PFRA.010.3PTC RESET FUSE 60V 100MA RADIAL |
7,943 | 0.00 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Box (TB) | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
PFRA.090.3.009PTC RESET FUSE 30V 900MA RADIAL |
4,857 | 0.00 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Box (TB) | Obsolete | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
|
PFRA.040.3PTC RESET FUSE 60V 400MA RADIAL |
6,457 | 0.00 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Box (TB) | Obsolete | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
|
PFRA.065.3PTC RESET FUSE 60V 650MA RADIAL |
7,715 | 0.00 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Box (TB) | Obsolete | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
PFRA.050.3PTC RESET FUSE 60V 500MA RADIAL |
9,206 | 0.00 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Box (TB) | Obsolete | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
|
PFST.200PTC RESET FUSE 30V 2A STRAP |
4,885 | 0.00 |
|
Datasheet |
Strap | PFST | Bulk | Obsolete | Polymeric | 30V | 2 A | 4.4 A | 100 A | 4 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
|
PFLT.180PTC RESET FUSE 24V 1.8A STRAP |
2,806 | 0.00 |
|
Datasheet |
Strap | PFLT | Bulk | Obsolete | Polymeric | 24V | 1.8 A | 3.8 A | 100 A | 2.9 s | 40 mOhms | 120 mOhms | - | -45°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.199" W (25.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
|
PFLT.190PTC RESET FUSE 24V 1.9A STRAP |
5,378 | 0.00 |
|
Datasheet |
Strap | PFLT | Bulk | Obsolete | Polymeric | 24V | 1.9 A | 4.2 A | 100 A | 3 s | 30 mOhms | 100 mOhms | - | -45°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
|
PFLT.070PTC RESET FUSE 24V 700MA STRAP |
8,470 | 0.00 |
|
- |
Strap | PFLT | Bulk | Obsolete | Polymeric | 24V | 700 mA | - | 100 A | - | - | - | - | -45°C ~ 85°C | - | - | - | User Defined | - | - | - | - |
|
|
PFRA.135.3PTC RESET FUSE 30V 1.35A RADIAL |
8,219 | 0.00 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Box (TB) | Obsolete | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 65 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
