PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

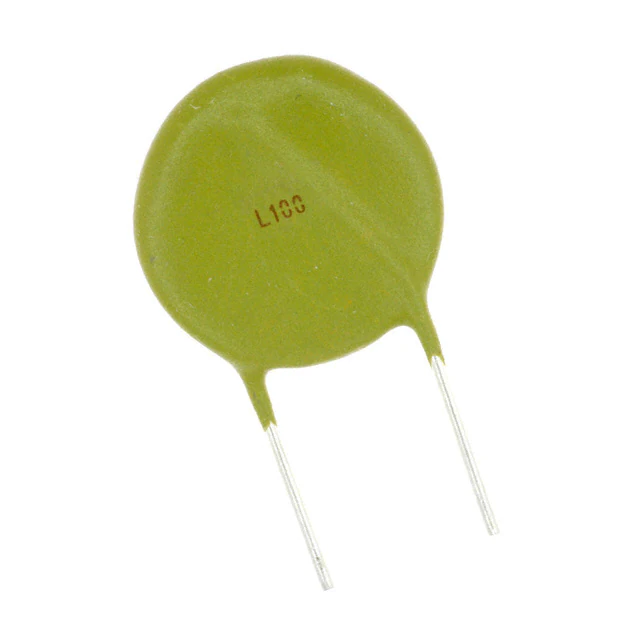

LVR100SPTC RESET FUSE 240V 1A RADIAL |
2,661 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.400" (10.15mm) |
|

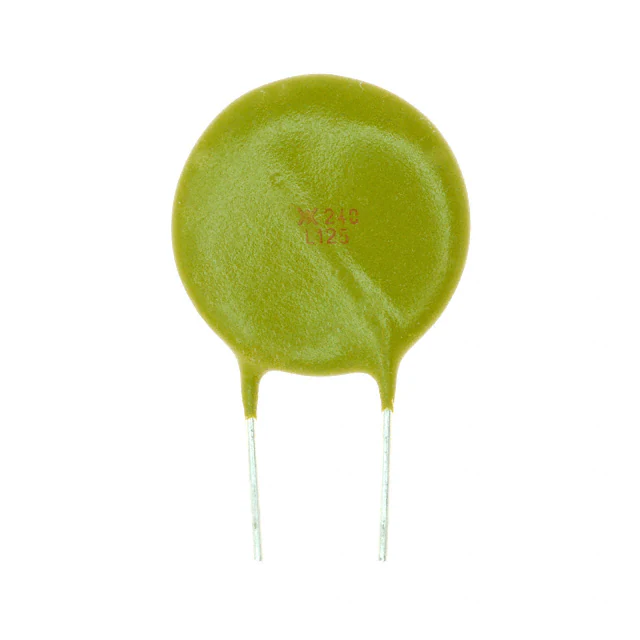

LVR125SPTC RESET FUSE 240V 1.25A RADIAL |
6,809 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 1.25 A | 2.5 A | 12.5 A | 23 s | 165 mOhms | 440 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) | 1.079" (27.40mm) | - | 0.400" (10.15mm) |
|

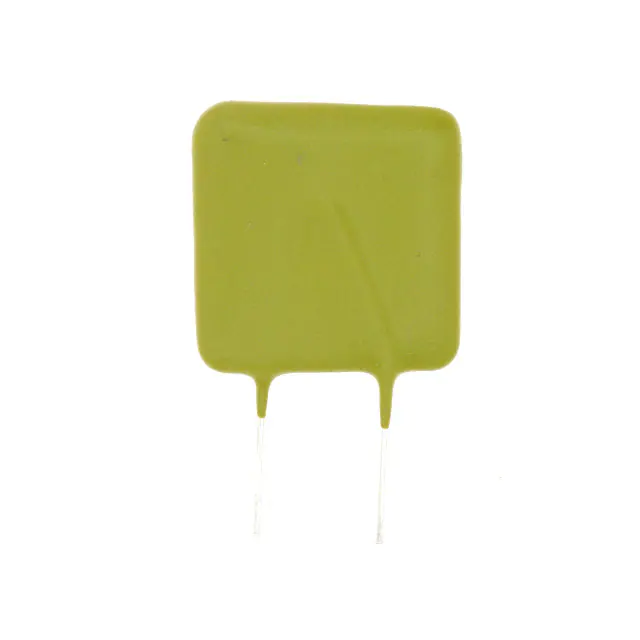

LVR200SPTC RESET FUSE 240V 2A RADIAL |
8,066 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 2 A | 4 A | 20 A | 28 s | 89 mOhms | 221 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.240" W (24.90mm x 6.10mm) | 1.331" (33.80mm) | - | 0.400" (10.15mm) |
|
PTGL07BB220N0B52A0PTC RESET FUSE 250V 130MA RADIAL |
9,900 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Cut Tape (CT) | Obsolete | Ceramic | 250V | 130 mA | 250 mA | 500 mA | - | - | - | 22 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) |
|

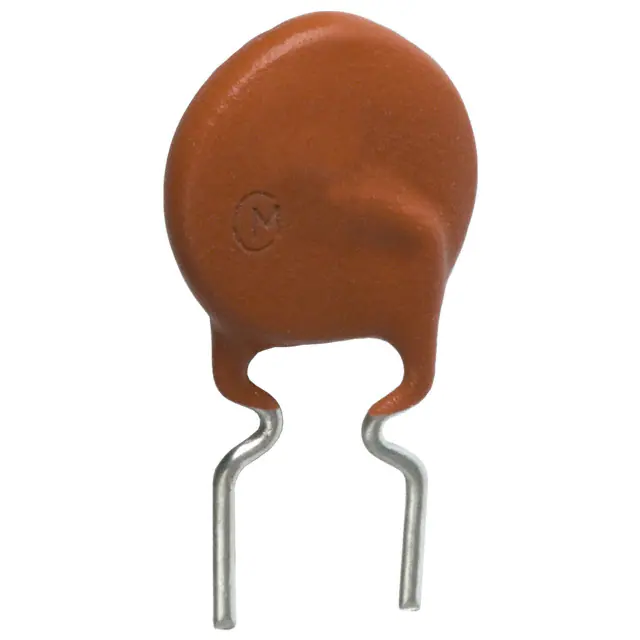

PTGL09AR390N0B52A0PTC RESET FUSE 250V 115MA RADIAL |
7,306 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 250V | 115 mA | 245 mA | 600 mA | - | - | - | 39 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.236" T (10.00mm x 6.00mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AR250H8B52B0PTC RESET FUSE 265V 150MA RADIAL |
4,829 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 150 mA | 290 mA | 1 A | - | - | - | 25 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.236" T (10.00mm x 6.00mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|
CMF-SD25-2PTC RESET FUSE 230V 130MA 4SMD |
8,226 | 0.00 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 130 mA | 260 mA | 2.8 A | 300 ms | - | - | 25 Ohms | - | - | - | - | Surface Mount | 0.402" L x 0.354" W (10.20mm x 9.00mm) | - | 0.425" (10.80mm) | - |
|
CMF-SD50A-10-2PTC RESET FUSE 230V 90MA 4SMD |
8,646 | 0.00 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 90 mA | 190 mA | 3 A | 100 ms | - | - | 50 Ohms | - | - | - | - | Surface Mount | 0.319" L x 0.282" W (8.10mm x 7.15mm) | - | 0.335" (8.50mm) | - |
|

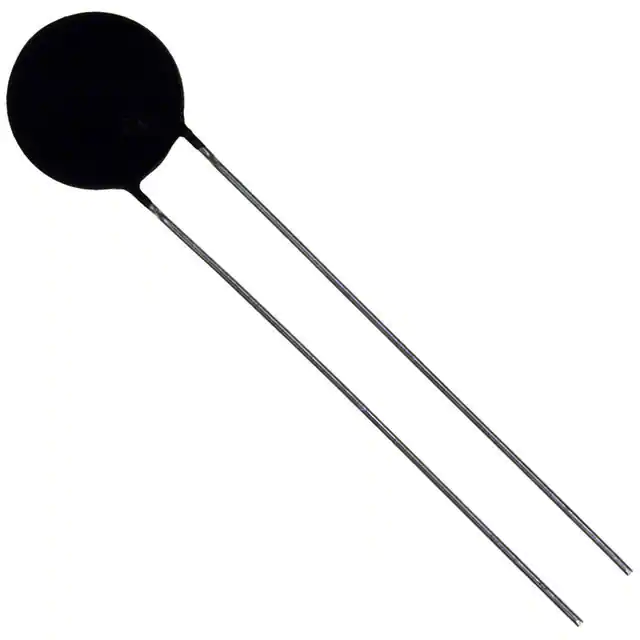

YPBL2.30TPTC RESET FUSE 80V 450MA RADIAL |
8,550 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 450 mA | 900 mA | 8 A | - | - | - | 2.3 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPBL5.60TPTC RESET FUSE 80V 250MA RADIAL |
6,815 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 250 mA | 500 mA | 4.3 A | - | - | - | 5.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
|
YPBL9.40TPTC RESET FUSE 80V 150MA RADIAL |
6,423 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 150 mA | 300 mA | 3 A | - | - | - | 9.4 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPBL0025TPTC RESET FUSE 80V 85MA RADIAL |
9,673 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 80V | 85 mA | 170 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0006TPTC RESET FUSE 265V 330MA RADIAL |
3,096 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 330 mA | 660 mA | 4.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0025TPTC RESET FUSE 265V 100MA RADIAL |
8,459 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0120TPTC RESET FUSE 265V 35MA RADIAL |
7,011 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 265V | 35 mA | 80 mA | 400 mA | - | - | - | 120 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPDL0600TPTC RESET FUSE 420V 21MA RADIAL |
7,676 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 420V | 21 mA | 39 mA | 200 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPEK1200TPTC RESET FUSE 550V 15MA RADIAL |
7,348 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | 550V | 15 mA | 30 mA | 100 mA | - | - | - | 1.2 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPEK3500TPTC RESET FUSE RADIAL DISC |
3,711 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Active | Ceramic | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.157" Dia x 0.157" T (4.00mm x 4.00mm) | 0.217" (5.50mm) | - | 0.200" (5.08mm) |
|

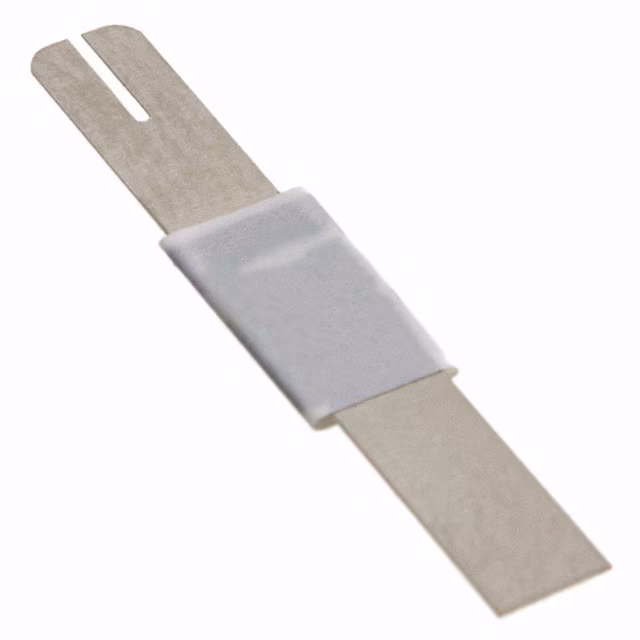

SRP120SFPTC RESET FUSE 15V 1.2A STRAP |
2,513 | 0.00 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 15V | 1.2 A | 2.7 A | 100 A | 5 s | 85 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.199" W (21.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|

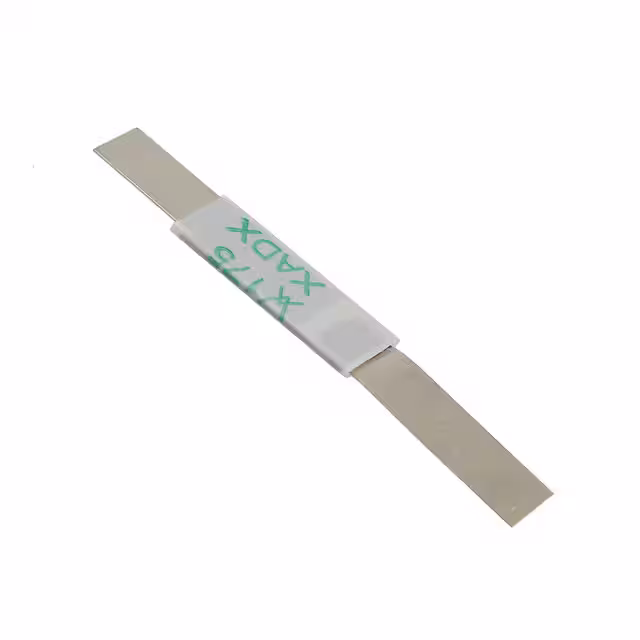

SRP175LFPTC RESET FUSE 15V 1.75A STRAP |
7,434 | 0.00 |
|
Datasheet |
Strap | PolySwitch® | Bulk | Active | Polymeric | 15V | 1.75 A | 3.8 A | 100 A | 5 s | 50 mOhms | 90 mOhms | - | - | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
