PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

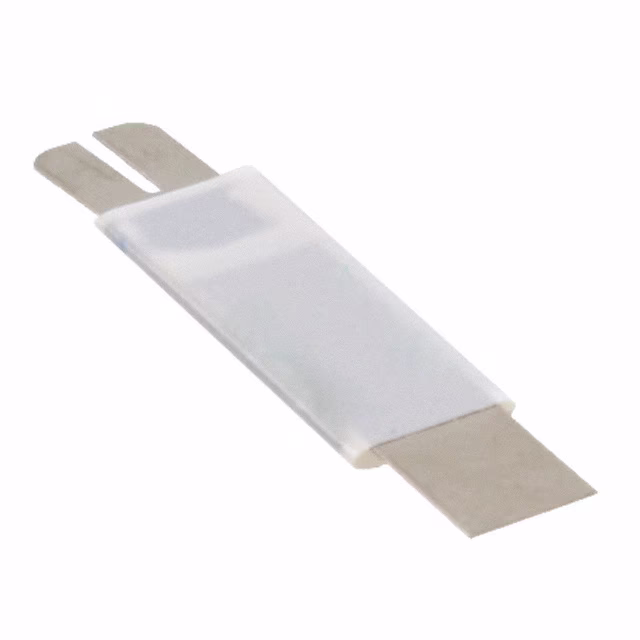

SRP175SFPTC RESET FUSE 15V 1.75A STRAP |
3,630 | 0.00 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 15V | 1.75 A | 3.8 A | 100 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
TCF250-100T-RB-B-0.5PTC RESET FUSE 60V 90MA SMD |
9,848 | 0.00 |
|
- |
Nonstandard SMD | PolySwitch®, TCF250 | Bulk | Active | Polymeric | 60V (250V Int) | 90 mA | 150 mA | 3 A | 200 ms | 15.4 Ohms | 24 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.187" L x 0.187" W (4.75mm x 4.75mm) | - | 0.091" (2.30mm) | - |
|
TRF250-120T-RG-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
4,350 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bulk | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 750 ms | 8.5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|

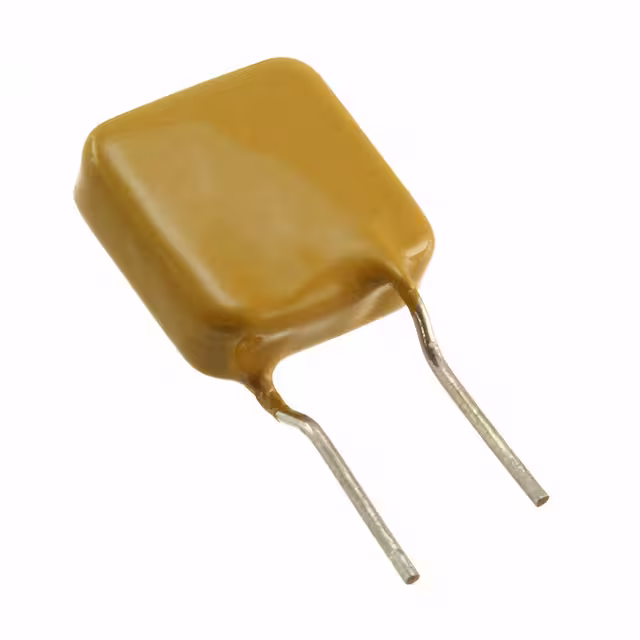

TR600-150QF-EX-B-0.5PTC RESET FUSE RADIAL DISC |
6,209 | 0.00 |
|
- |
Radial, Disc | PolySwitch®, TR600 | Bag | Active | Polymeric | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.532" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|

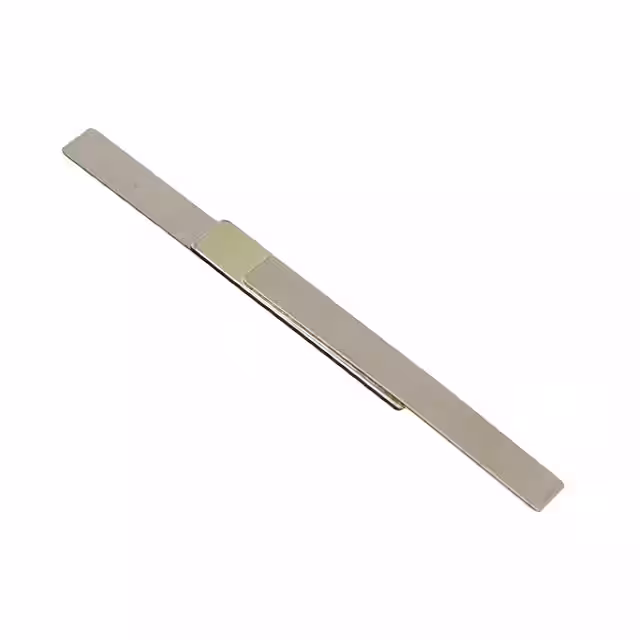

VLP190UFPTC RESET FUSE 16V 1.9A STRAP |
7,994 | 0.00 |
|
- |
Strap | PolySwitch®, VLP | Bulk | Active | Polymeric | 16V | 1.9 A | 4.7 A | 60 A | 5 s | 21 mOhms | 72 mOhms | - | - | - | - | - | User Defined | 1.004" L x 0.906" W (25.50mm x 23.00mm) | - | 0.276" (7.00mm) | - |
|

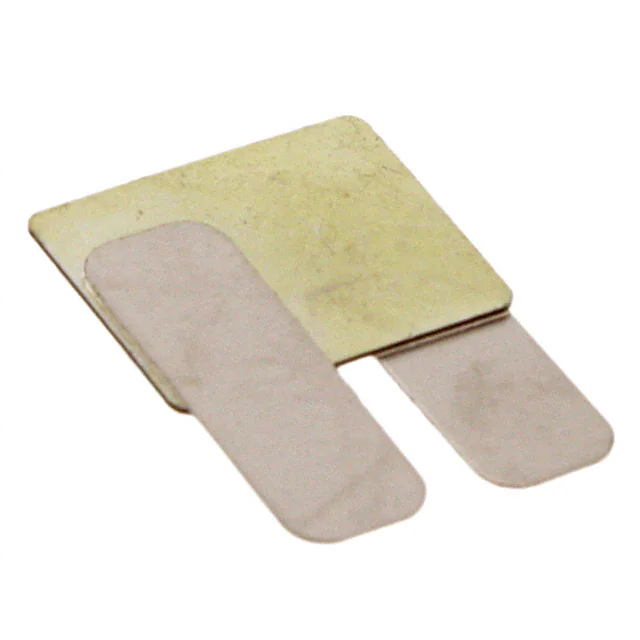

VLP270XXUFPTC RESET FUSE 16V 2.7A STRAP |
3,343 | 0.00 |
|
- |
Strap | PolySwitch®, VLP | Bulk | Active | Polymeric | 16V | 2.7 A | 6.5 A | 60 A | 5 s | 12 mOhms | 36 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.201" W (22.00mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|

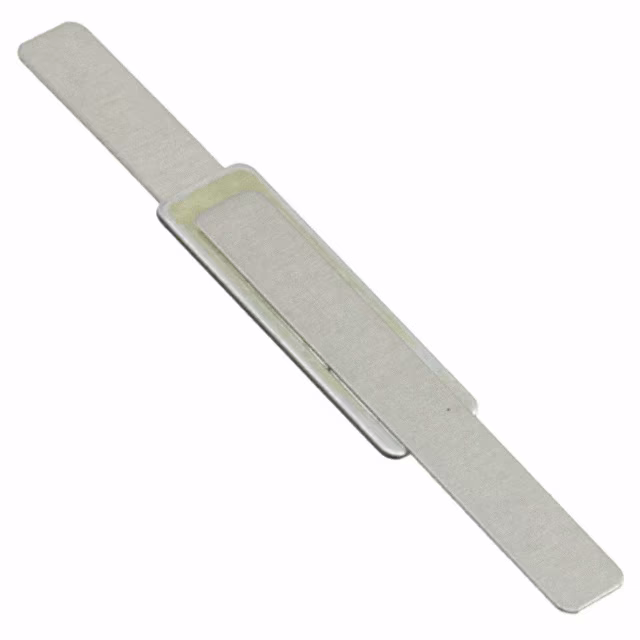

VLR170UFPTC RESET FUSE 12V 1.7A STRAP |
6,736 | 0.00 |
|
- |
Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 1.7 A | 4.1 A | 100 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 70°C | - | - | - | User Defined | 0.866" L x 0.142" W (22.00mm x 3.60mm) | - | 0.028" (0.70mm) | - |
|

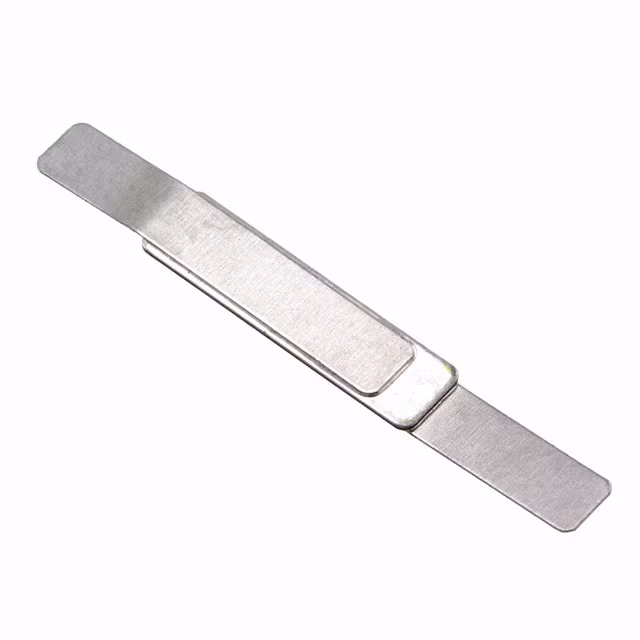

VLR175UFPTC RESET FUSE 12V 1.75A STRAP |
5,651 | 0.00 |
|
Datasheet |
Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 70°C | - | - | - | User Defined | 0.935" L x 0.118" W (23.75mm x 3.00mm) | - | 0.028" (0.70mm) | - |
|
LVR005NS-1PTC RESET FUSE 240V 50MA RADIAL |
6,045 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.181" T (6.90mm x 4.60mm) | 0.390" (9.90mm) | - | 0.200" (5.08mm) |
|
|
LVR005NK-2PTC RESET FUSE 240V 50MA RADIAL |
3,273 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | - | - | - | - | Through Hole | 0.272" Dia x 0.181" T (6.90mm x 4.60mm) | 0.476" (12.10mm) | - | 0.200" (5.08mm) |
|
16R1100GMRPTC RESET FUSE 16V 11A RADIAL |
4,233 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Tape & Box (TB) | Obsolete | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
16R1200GMRPTC RESET FUSE 16V 12A RADIAL |
9,345 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Tape & Box (TB) | Obsolete | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.138" W (17.50mm x 3.50mm) | 1.102" (28.00mm) | - | 0.402" (10.20mm) |
|
16R800GMRPTC RESET FUSE 16V 8A RADIAL |
8,025 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Tape & Box (TB) | Obsolete | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
|
72R300XMRPTC RESET FUSE 72V 3A RADIAL |
2,091 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Tape & Box (TB) | Obsolete | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.910" Dia x 0.122" T (23.11mm x 3.10mm) | 1.154" (29.30mm) | - | 0.402" (10.20mm) |
|
16R250GUPTC RESET FUSE 16V 2.5A RADIAL |
8,379 | 0.58 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Obsolete | Polymeric | 16V | 2.5 A | 4.7 A | 100 A | 5 s | 22 mOhms | 53 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
16R600GUPTC RESET FUSE 16V 6A RADIAL |
9,623 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Obsolete | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
16R700GFPTC RESET FUSE 16V 7A RADIAL |
4,979 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Obsolete | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
16R1000GFPTC RESET FUSE 16V 10A RADIAL |
2,028 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Obsolete | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.992" (25.20mm) | - | 0.201" (5.10mm) |
|
|

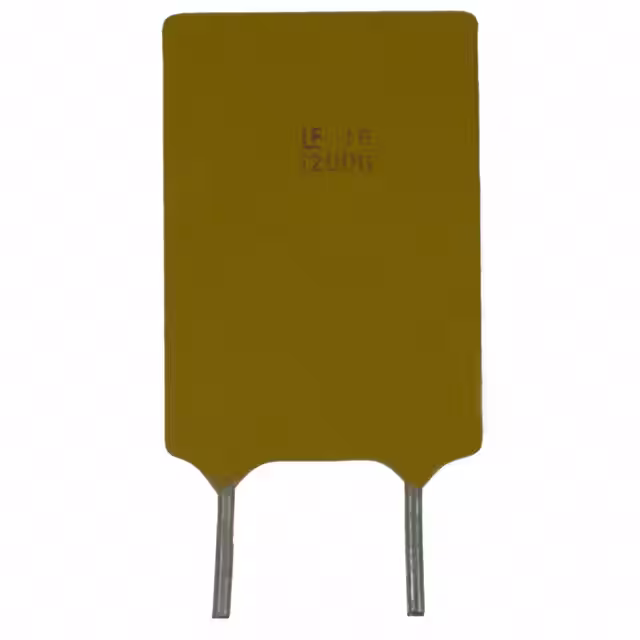

16R1200GHPTC RESET FUSE 16V 12A RADIAL |
9,201 | 1.01 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Obsolete | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.138" W (17.50mm x 3.50mm) | 1.102" (28.00mm) | - | 0.402" (10.20mm) |
|

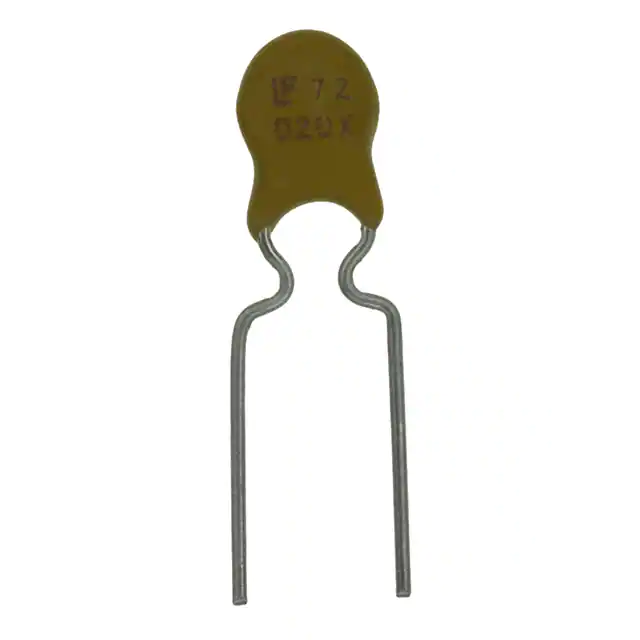

72R020XUPTC RESET FUSE 72V 200MA RADIAL |
5,921 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
