PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

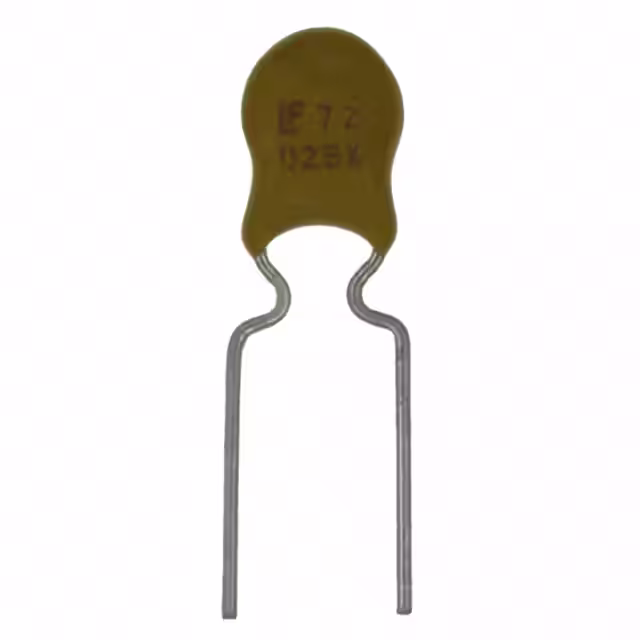

72R025XUPTC RESET FUSE 72V 250MA RADIAL |
8,003 | 0.42 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
72R030XUPTC RESET FUSE 72V 300MA RADIAL |
4,255 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

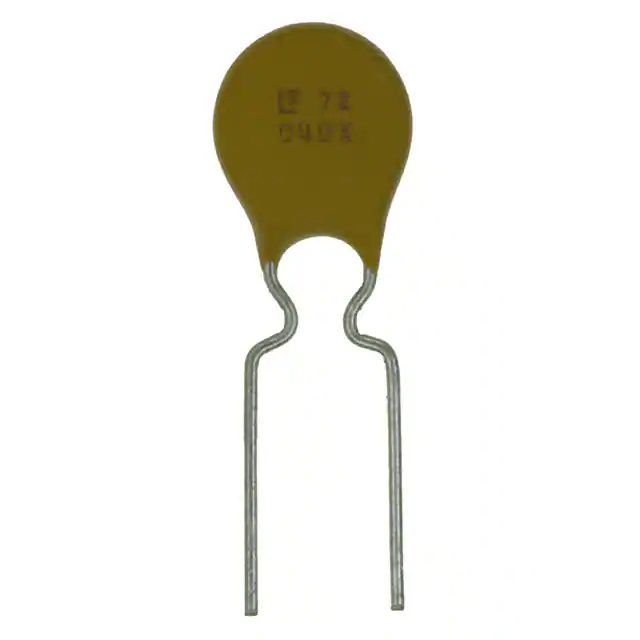

72R040XUPTC RESET FUSE 72V 400MA RADIAL |
3,265 | 0.46 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
72R050XUPTC RESET FUSE 72V 500MA RADIAL |
9,559 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|

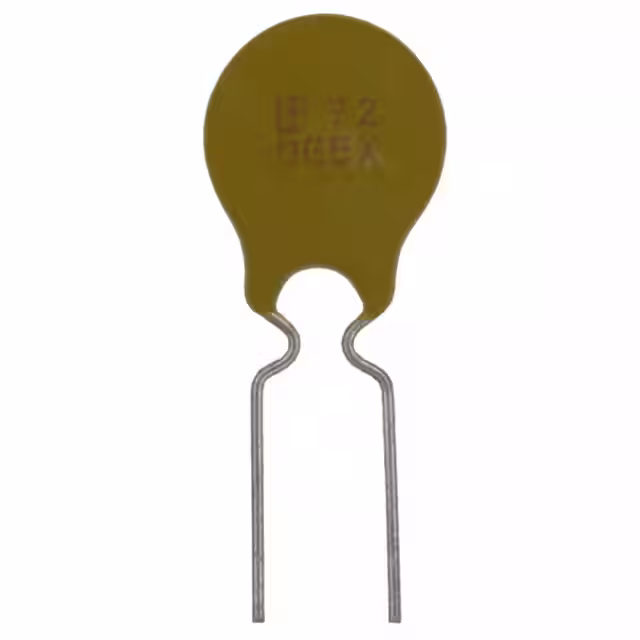

72R065XUPTC RESET FUSE 72V 650MA RADIAL |
4,000 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|

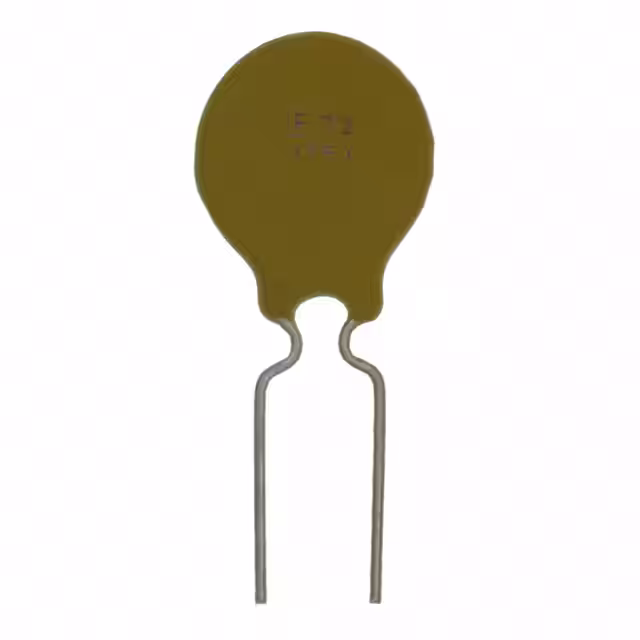

72R075XUPTC RESET FUSE 72V 750MA RADIAL |
5,324 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
72R090XUPTC RESET FUSE 72V 900MA RADIAL |
4,620 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.122" T (11.20mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
72R185XFPTC RESET FUSE 72V 1.85A RADIAL |
5,128 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.660" Dia x 0.122" T (16.76mm x 3.10mm) | 0.906" (23.00mm) | - | 0.201" (5.10mm) |
|

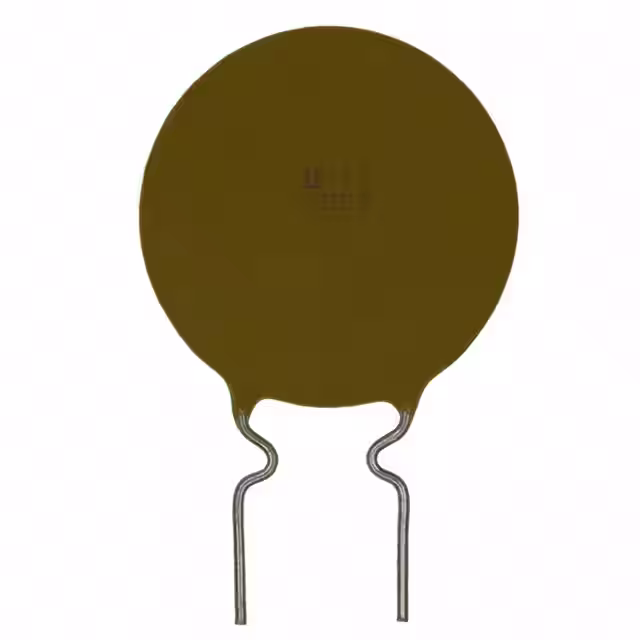

72R300XFPTC RESET FUSE 72V 3A RADIAL |
9,782 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Obsolete | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.910" Dia x 0.122" T (23.11mm x 3.10mm) | 1.154" (29.30mm) | - | 0.402" (10.20mm) |
|

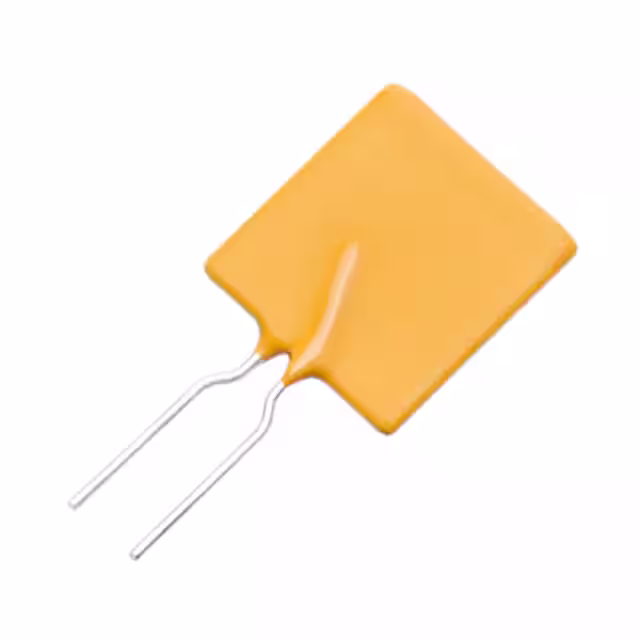

AHRF550SPTC RESET FUSE 16V 5.5A RADIAL |
7,528 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 13 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.200" (5.08mm) |
|

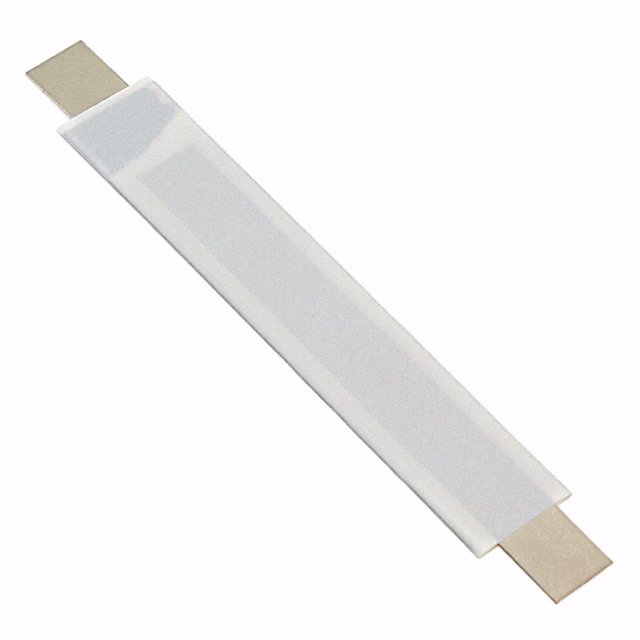

LR4-1300FPTC RESET FUSE 20V 13A STRAP |
6,292 | 0.00 |
|
- |
Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 13 A | 21.2 A | 100 A | 10 s | 3.5 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 2.520" L x 0.382" W (64.00mm x 9.70mm) | - | - | - |
|
LR4-190XFPTC RESET FUSE 15V 1.9A STRAP |
6,877 | 0.00 |
|
- |
Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 15V | 1.9 A | 3.9 A | 100 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.648" L x 0.283" W (16.45mm x 7.20mm) | - | 0.039" (1.00mm) | - |
|
LR4-550RAFPTC RESET FUSE 20V 5.5A STRAP |
5,509 | 0.00 |
|
- |
Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 5.5 A | 10.5 A | 100 A | 5 s | 9 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | - | - | - | - |
|

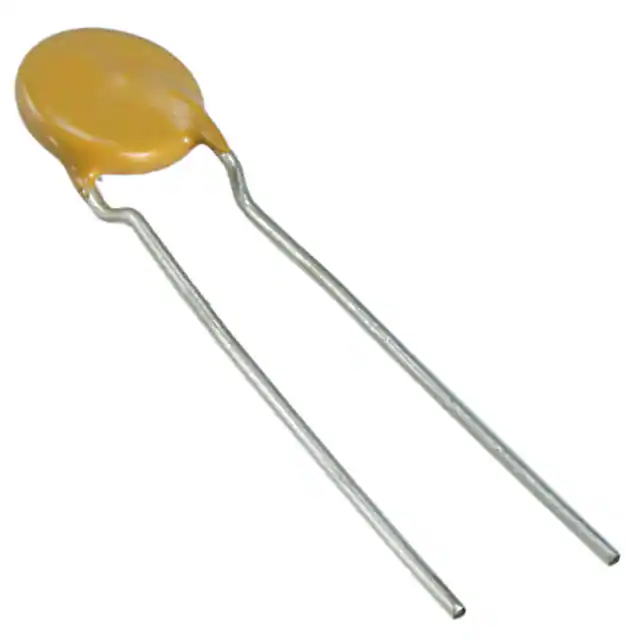

TRF250-180-0.125POLYSWITCH PTC RESET 0.180A T/H |
4,914 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bag | Active | - | 100V | 180 mA | 650 mA | 10 A | 2 s | - | - | - | - | - | - | - | Through Hole | 0.350" Dia x 0.150" W (8.89mm x 3.81mm) | 0.472" (12.00mm) | - | 0.200" (5.08mm) |
|

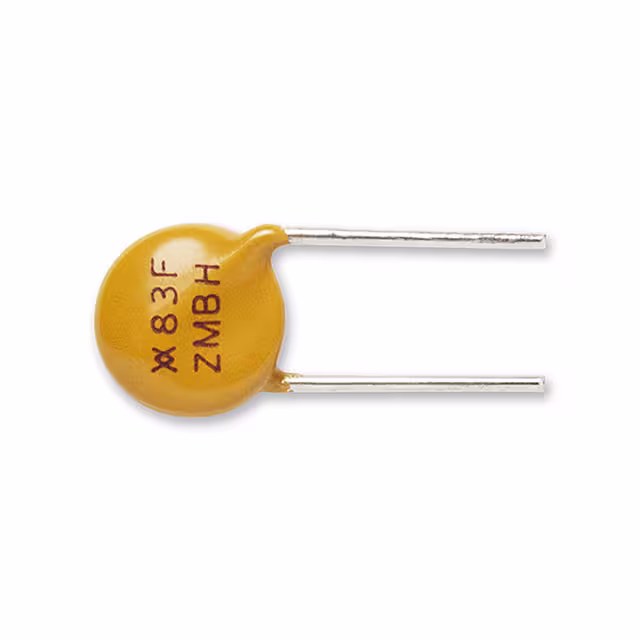

TRF250-183S-0.110PTC RESET FUSE 100V 183MA RADIAL |
6,046 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 100V (250V Int) | 183 mA | 685 mA | 10 A | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.295" Dia x 0.150" T (7.50mm x 3.80mm) | 0.374" (9.50mm) | - | 0.200" (5.08mm) |
|

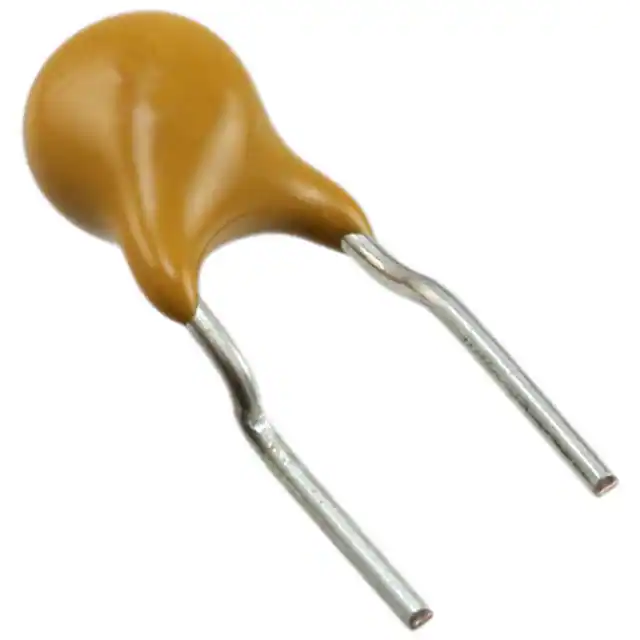

250R080TUPTC RESET FUSE 60V 80MA RADIAL |
5,485 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Bulk | Obsolete | Polymeric | 60V (250V Int) | 80 mA | 160 mA | 3 A | 4 s | 15 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.228" Dia x 0.181" T (5.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.201" (5.10mm) |
|
MF-R015/600-0PTC RESET FUSE 250V 150MA RADIAL |
7,290 | 0.00 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Bulk | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 6 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
MF-R016/600-0PTC RESET FUSE 250V 160MA RADIAL |
9,995 | 0.00 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Bulk | Obsolete | Polymeric | 250V (600V Int) | 160 mA | 320 mA | 3 A | 7 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
|
YS5876PTFPTC RESET FUSE 240V 100MA RADIAL |
2,107 | 0.00 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Active | Ceramic | 240V | 100 mA | 210 mA | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.650" Dia x 0.272" T (16.50mm x 6.90mm) | 0.650" (16.50mm) | - | 0.331" (8.40mm) |
|
MXP190BBPTC RESET FUSE 6V 1.9A STRAP |
2,549 | 0.00 |
|
Datasheet |
Strap | PolySwitch®, MXP | Bag | Obsolete | Polymeric | 6V | 1.9 A | 4.9 A | 50 A | 2 s | 7 mOhms | 24 mOhms | - | - | - | - | - | User Defined | 0.394" L x 0.122" W (10.00mm x 3.11mm) | - | 0.043" (1.10mm) | - |
