PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-RX135-APPTC RESET FUSE 60V 1.35A RADIAL |
9,500 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.483" L x 0.122" W (12.26mm x 3.10mm) | 0.718" (18.26mm) | - | 0.201" (5.10mm) |
|
|
MF-RX135-AP-99PTC RESET FUSE 60V 1.35A RADIAL |
2,890 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.483" L x 0.122" W (12.26mm x 3.10mm) | 0.718" (18.26mm) | - | 0.201" (5.10mm) |
|
|
MF-RX160-APPTC RESET FUSE 60V 1.6A RADIAL |
7,949 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" L x 0.122" W (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
MF-RX160-AP-99PTC RESET FUSE 60V 1.6A RADIAL |
5,076 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" L x 0.122" W (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
MF-RX185-APPTC RESET FUSE 60V 1.85A RADIAL |
7,534 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
|
MF-RX185-AP-99PTC RESET FUSE 60V 1.85A RADIAL |
4,442 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
|
MF-RX250-APPTC RESET FUSE 60V 2.5A RADIAL |
5,610 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" L x 0.122" W (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
MF-RX250-AP-99PTC RESET FUSE 60V 2.5A RADIAL |
4,722 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" L x 0.122" W (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
MF-RX300-APPTC RESET FUSE 60V 3A RADIAL |
4,783 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.122" W (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
|
MF-RX300-AP-99PTC RESET FUSE 60V 3A RADIAL |
7,749 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.122" W (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|

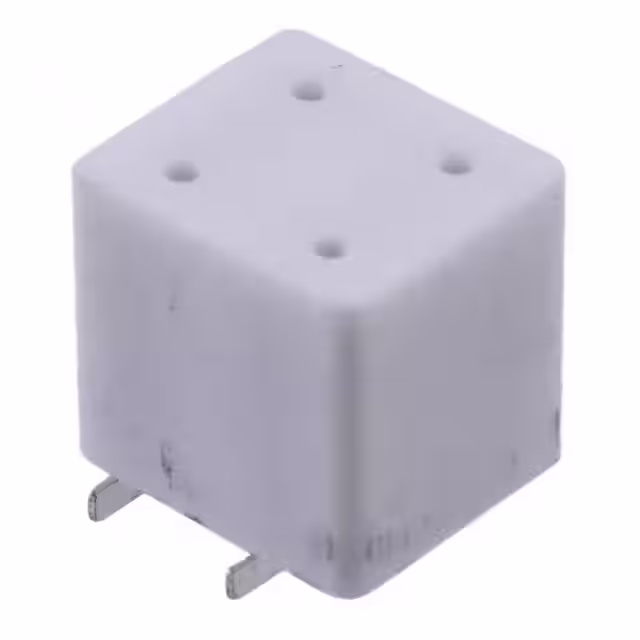

CMF-SD35-10-2PTC RESET FUSE 230V 100MA 4SMD |
6,395 | 0.00 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 100 mA | 200 mA | 3 A | 200 ms | - | - | 35 Ohms | - | - | - | - | Surface Mount | 0.402" L x 0.354" W (10.20mm x 9.00mm) | - | 0.425" (10.80mm) | - |
|
|
CMF-SD35-2PTC RESET FUSE 230V 100MA 4SMD |
6,729 | 0.00 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 100 mA | 200 mA | 3 A | 200 ms | - | - | 35 Ohms | - | - | - | - | Surface Mount | 0.402" L x 0.354" W (10.20mm x 9.00mm) | - | 0.425" (10.80mm) | - |
|
|
CMF-SD35A-10-2PTC RESET FUSE 230V 100MA 4SMD |
4,462 | 0.00 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 100 mA | 200 mA | 2.5 A | 200 ms | - | - | 35 Ohms | - | - | - | - | Surface Mount | 0.319" L x 0.282" W (8.10mm x 7.15mm) | - | 0.335" (8.50mm) | - |
|
|
CMF-SD50-2PTC RESET FUSE 230V 90MA 4SMD |
8,123 | 0.00 |
|
Datasheet |
4-SMD Cube | CMF-SD | Tape & Reel (TR) | Obsolete | Ceramic | 230V (600V Int) | 90 mA | 190 mA | 3 A | 100 ms | - | - | 50 Ohms | - | - | - | - | Surface Mount | 0.402" L x 0.354" W (10.20mm x 9.00mm) | - | 0.425" (10.80mm) | - |
|
MF-R010-2-99PTC RESET FUSE 60V 100MA RADIAL |
9,229 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

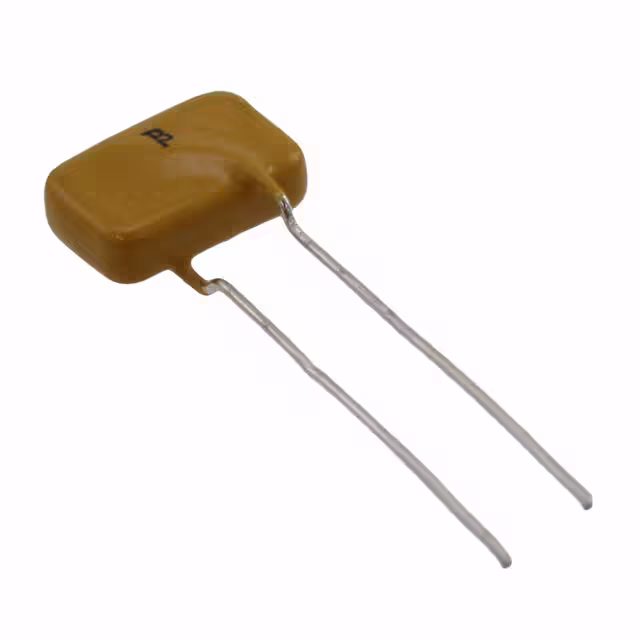

MF-R015/600-2PTC RESET FUSE 250V 150MA RADIAL |
3,777 | 0.00 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Tape & Reel (TR) | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 6 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
|
MF-R015/600-A-2PTC RESET FUSE 250V 150MA RADIAL |
5,198 | 0.00 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Tape & Reel (TR) | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 7 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
|
MF-R015/600-B-2PTC RESET FUSE 250V 150MA RADIAL |
4,661 | 0.00 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Tape & Reel (TR) | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
|
MF-R015/600-F-2PTC RESET FUSE 250V 150MA RADIAL |
5,710 | 0.00 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Tape & Reel (TR) | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 7 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
MF-R016/600-2PTC RESET FUSE 250V 160MA RADIAL |
4,568 | 0.00 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Tape & Reel (TR) | Obsolete | Polymeric | 250V (600V Int) | 160 mA | 320 mA | 3 A | 7 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
