PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-R017-2-99PTC RESET FUSE 60V 170MA RADIAL |
3,712 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R020-2-99PTC RESET FUSE 60V 200MA RADIAL |
2,855 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.5 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R025-2-99PTC RESET FUSE 60V 250MA RADIAL |
9,139 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

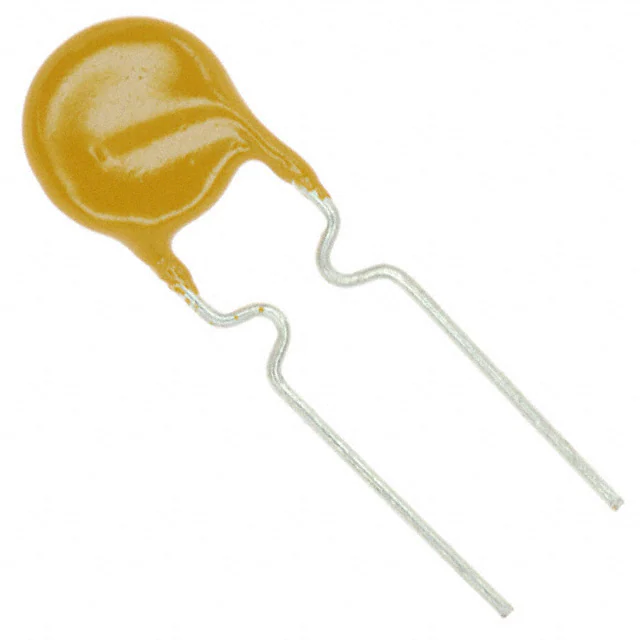

MF-R030-2-99PTC RESET FUSE 60V 300MA RADIAL |
3,132 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
|
MF-R040-2-99PTC RESET FUSE 60V 400MA RADIAL |
2,242 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
MF-R050-2-99PTC RESET FUSE 60V 500MA RADIAL |
7,816 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|

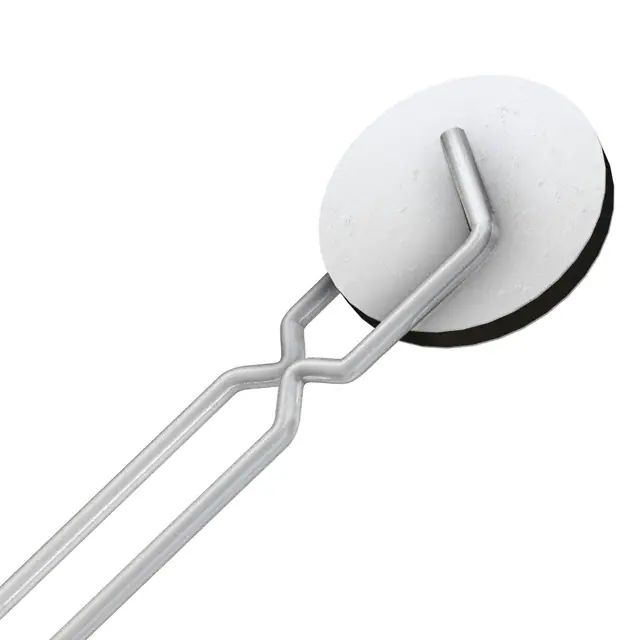

MF-R055/90-2PTC RESET FUSE 90V 550MA RADIAL |
6,353 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R/90 | Tape & Reel (TR) | Obsolete | Polymeric | 90V | 550 mA | 1.1 A | 10 A | 60 s | 450 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.429" Dia x 0.142" T (10.90mm x 3.60mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|

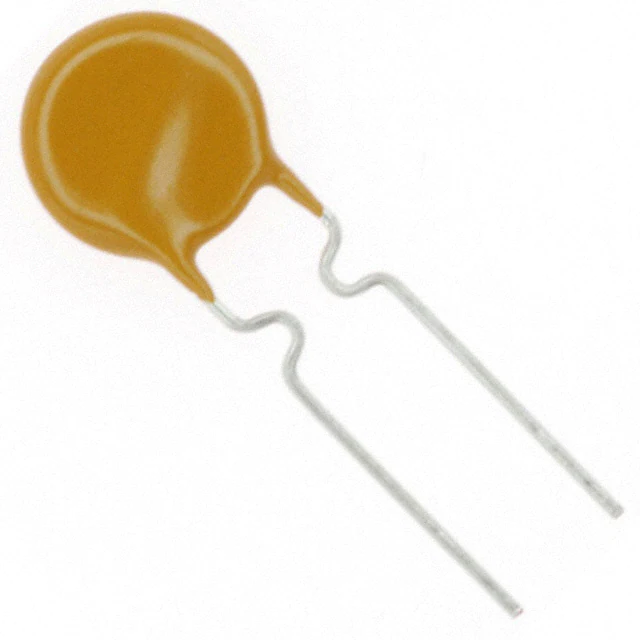

MF-R065-2-99PTC RESET FUSE 60V 650MA RADIAL |
6,317 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|

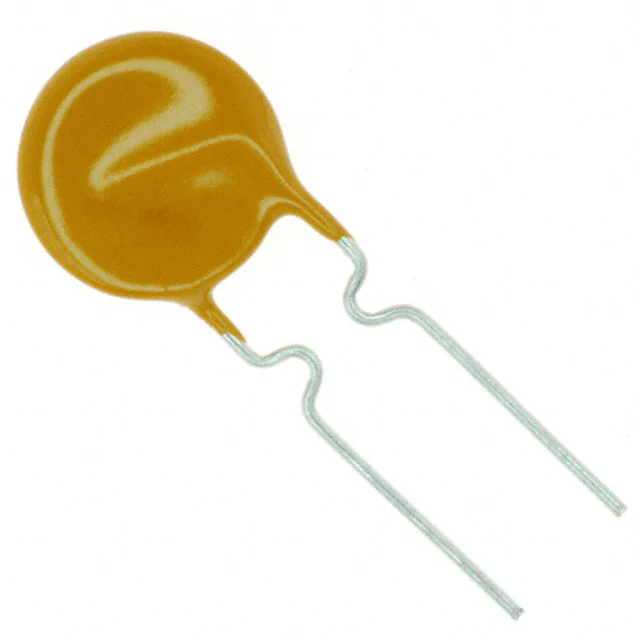

MF-R075/90-2PTC RESET FUSE 90V 750MA RADIAL |
2,526 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R/90 | Tape & Reel (TR) | Obsolete | Polymeric | 90V | 750 mA | 1.5 A | 10 A | 60 s | 370 mOhms | 1.65 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|

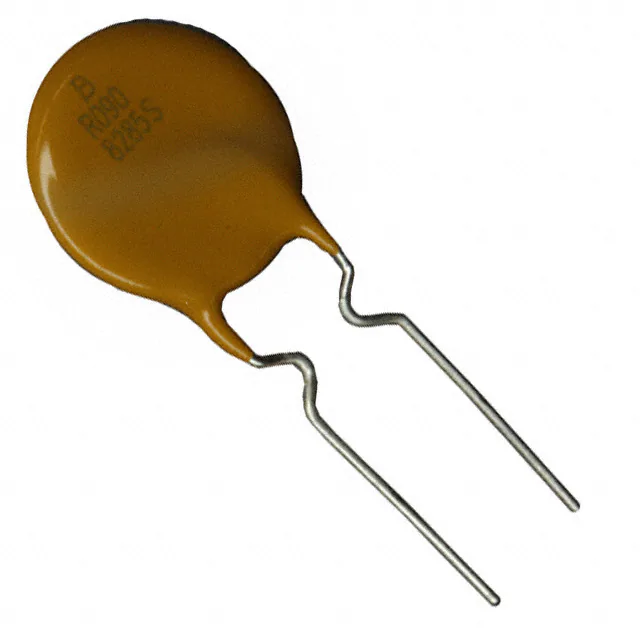

MF-R090-2-99PTC RESET FUSE 60V 900MA RADIAL |
7,679 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" L x 0.122" W (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R090-2-9-99PTC RESET FUSE 60V 900MA RADIAL |
4,817 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" L x 0.122" W (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
MF-R110-2-99PTC RESET FUSE 30V 1.1A RADIAL |
7,048 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 100 mOhms | 270 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|

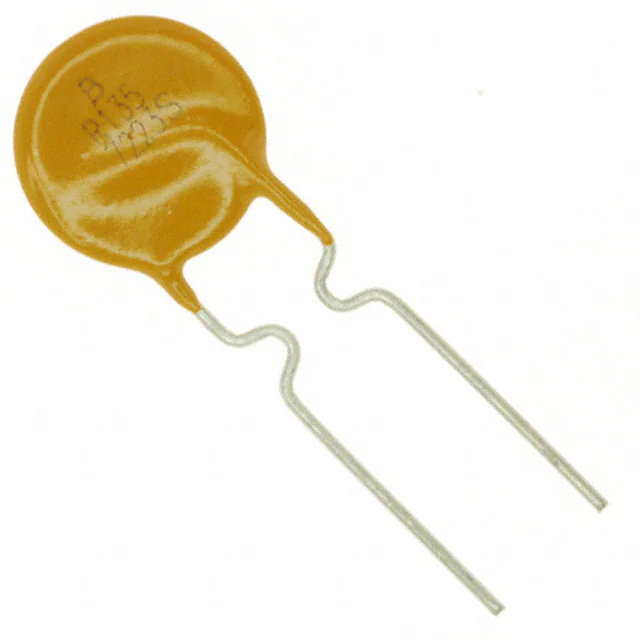

MF-R135-2-99PTC RESET FUSE 30V 1.35A RADIAL |
2,791 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 65 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
MF-R160-2-99PTC RESET FUSE 30V 1.6A RADIAL |
6,811 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 55 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.661" (16.80mm) | - | 0.201" (5.10mm) |
|
|
MF-R185-2-99PTC RESET FUSE 30V 1.85A RADIAL |
7,682 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" Dia x 0.118" T (12.00mm x 3.00mm) | 0.724" (18.40mm) | - | 0.201" (5.10mm) |
|

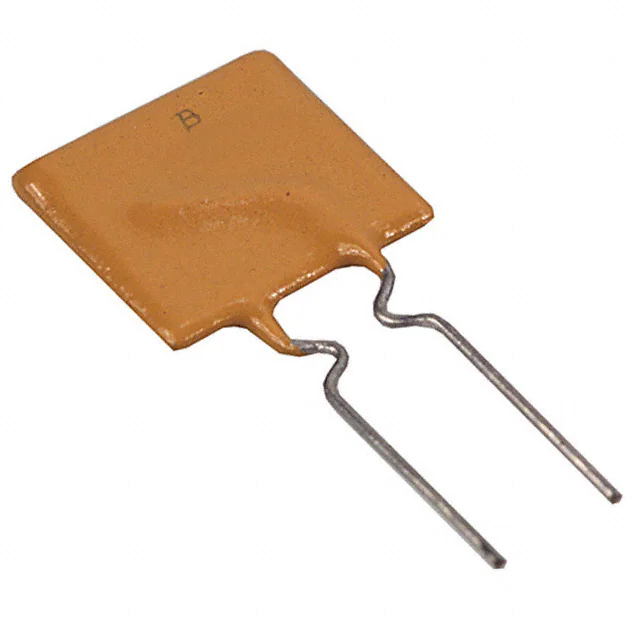

MF-R250-2-10-99PTC RESET FUSE 30V 2.5A RADIAL |
7,976 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
MF-R250-2-99PTC RESET FUSE 30V 2.5A RADIAL |
6,836 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
MF-R300-2-99PTC RESET FUSE 30V 3A RADIAL |
8,252 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
MF-R400-2-99PTC RESET FUSE 30V 4A RADIAL |
2,752 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
|
MF-R600-2-99PTC RESET FUSE 30V 6A RADIAL |
3,005 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.760" L x 0.118" W (19.30mm x 3.00mm) | 1.256" (31.90mm) | - | 0.402" (10.20mm) |
