PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-SM260-2-99PTC RESET FUSE 6V 2.6A 2SMD |
7,090 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 100 A | 20 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
|
MF-SM300-2-99PTC RESET FUSE 6V 3A 2SMD |
5,880 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 6 A | 100 A | 35 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|

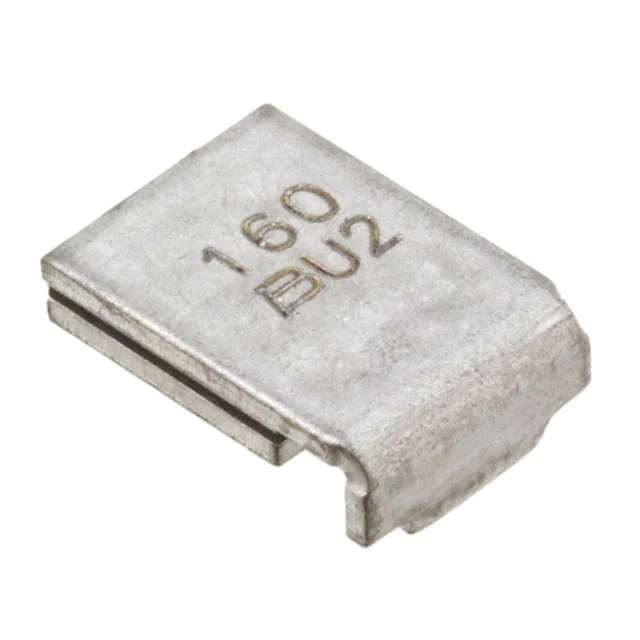

MF-SMHT136-2-6PTC RESET FUSE 16V 1.36A 2SMD |
6,130 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SMHT | Tape & Reel (TR) | Active | Polymeric | 16V | 1.36 A | 2.72 A | 100 A | 10 s | 85 mOhms | 330 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.314" L x 0.264" W (7.98mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|
|
MF-SMHT160-2-6PTC RESET FUSE 16V 1.6A 2SMD |
3,012 | 0.00 |
|
Datasheet |
2-SMD | Multifuse®, MF-SMHT | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 100 A | 10 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.374" L x 0.234" W (9.50mm x 5.94mm) | - | 0.118" (3.00mm) | - |
|

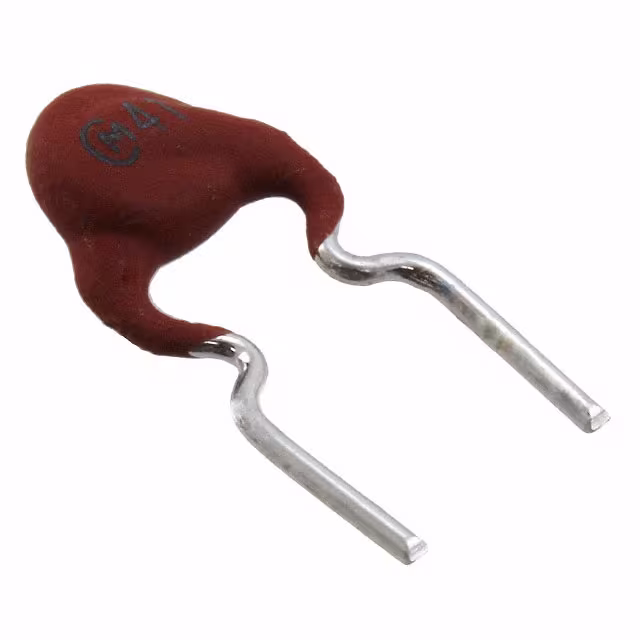

PTGL04AR130H2B51B0PTC RESET FUSE 30V 180MA RADIAL |
2,670 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 180 mA | 350 mA | 700 mA | - | - | - | 13 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.217" Dia x 0.157" W (5.50mm x 4.00mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|

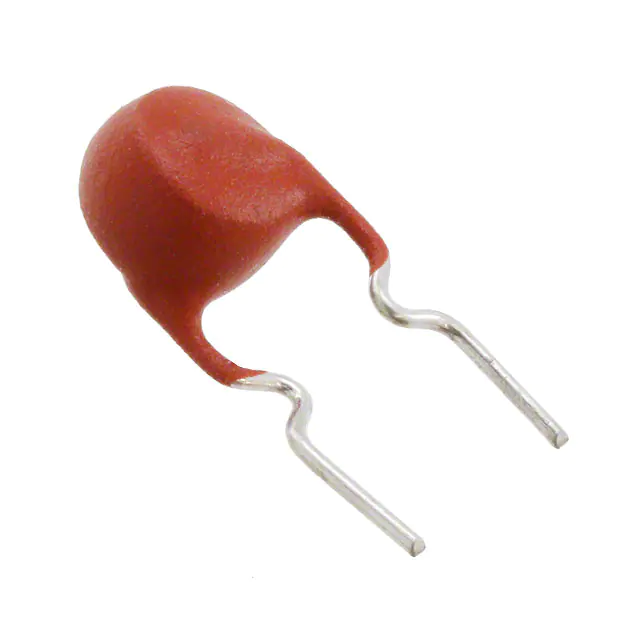

PTGL05AR121M9N51B0PTC RESET FUSE 265V 47MA RADIAL |
2,312 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 47 mA | 75 mA | 300 mA | - | - | - | 120 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.256" T (6.50mm x 6.50mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
|
PTGL05AR550H4P51B0PTC RESET FUSE 80V 62MA RADIAL |
9,553 | 1.13 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 80V | 62 mA | 115 mA | 700 mA | - | - | - | 55 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.217" Dia x 0.177" T (5.50mm x 4.50mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|
PTGL07AR220M3P51B0PTC RESET FUSE 56V 115MA RADIAL |
6,828 | 0.39 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 115 mA | 205 mA | 1 A | - | - | - | 22 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|

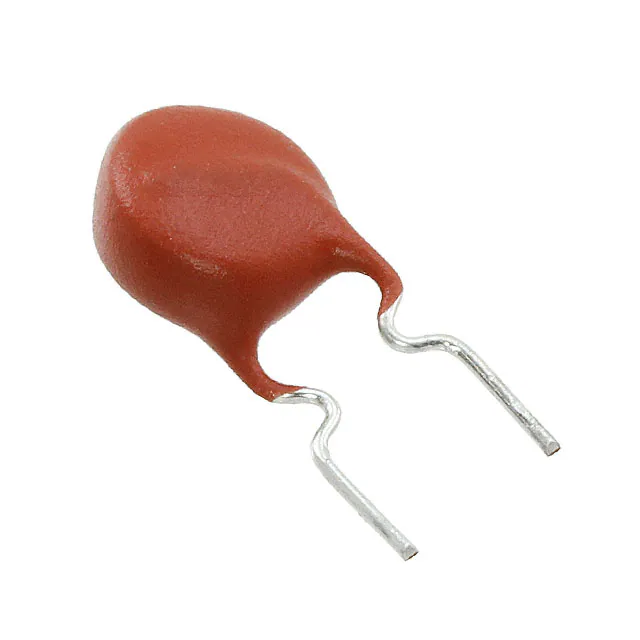

PTGL07AR330M6A51B0PTC RESET FUSE 140V 130MA RADIAL |
3,480 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | - | 140V | 130 mA | 200 mA | 500 mA | - | - | - | - | - | - | - | - | Through Hole | 0.291" Dia x 0.236" T (7.40mm x 6.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07AR4R6H2B51B0PTC RESET FUSE 30V 340MA RADIAL |
2,918 | 0.99 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 340 mA | 610 mA | 2 A | - | - | - | 4.6 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|

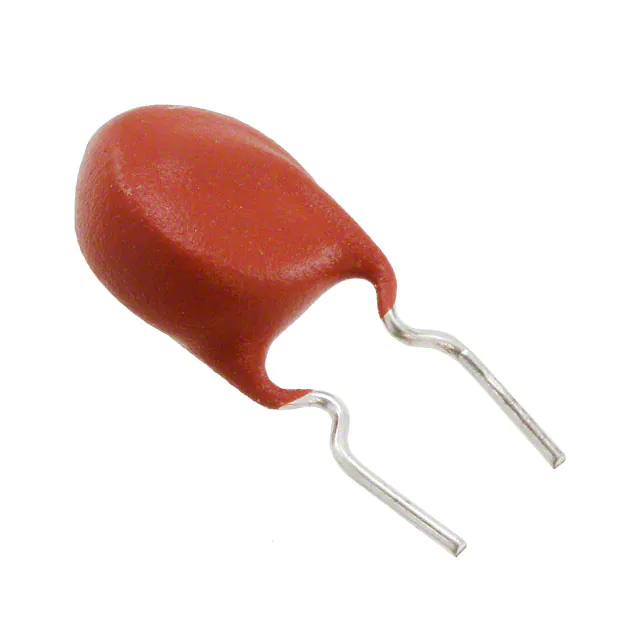

PTGL07AR560M9A51B0PTC RESET FUSE 265V 95MA RADIAL |
2,152 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 95 mA | 165 mA | 800 mA | - | - | - | 56 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.323" Dia x 0.256" T (8.20mm x 6.50mm) | 0.559" (14.20mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD100N2B51A0PTC RESET FUSE 24V 124MA RADIAL |
8,004 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 24V | 124 mA | 251 mA | 2 A | - | - | - | 10 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD100N2B51B0PTC RESET FUSE 24V 124MA RADIAL |
7,567 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 124 mA | 251 mA | 2 A | - | - | - | 10 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD150N3B51B0PTC RESET FUSE 32V 100MA RADIAL |
3,822 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 100 mA | 195 mA | 1.5 A | - | - | - | 15 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD220N3B51B0PTC RESET FUSE 32V 75MA RADIAL |
2,409 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 75 mA | 160 mA | 1.5 A | - | - | - | 22 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL07BD470N3B51B0PTC RESET FUSE 32V 55MA RADIAL |
6,580 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 55 mA | 115 mA | 1.5 A | - | - | - | 47 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AR390M9C61B0PTC RESET FUSE 265V 130MA RADIAL |
7,672 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 130 mA | 210 mA | 1.2 A | - | - | - | 39 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.256" T (10.00mm x 6.50mm) | 0.630" (16.00mm) | - | 0.256" (6.50mm) |
|
PTGL09AR9R4H4B51B0PTC RESET FUSE 80V 240MA RADIAL |
8,620 | 1.31 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 80V | 240 mA | 450 mA | 3 A | - | - | - | 9.4 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.177" T (9.50mm x 4.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|

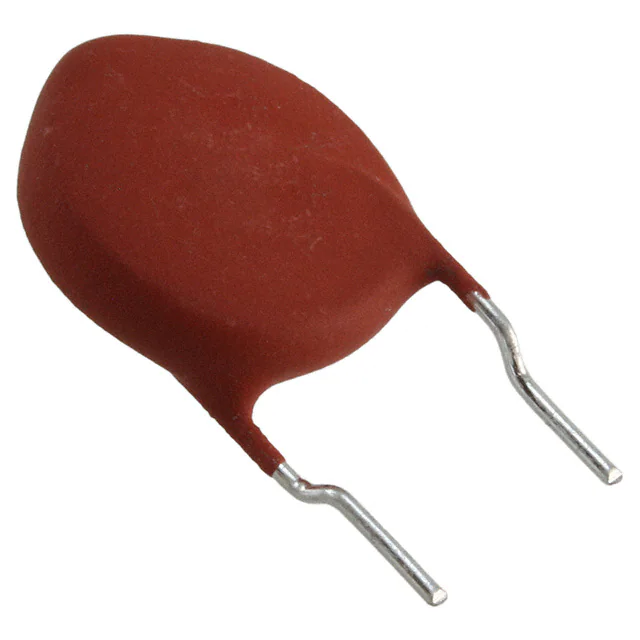

PTGL12AR150H8B72B0PTC RESET FUSE 265V 210MA RADIAL |
2,087 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 210 mA | 400 mA | 1.5 A | - | - | - | 15 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.492" Dia x 0.236" T (12.50mm x 6.00mm) | 0.728" (18.50mm) | - | 0.295" (7.50mm) |
|

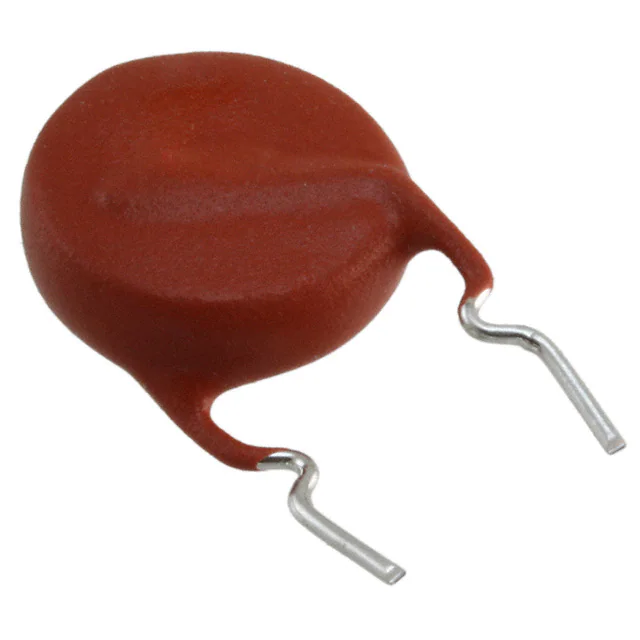

PTGL12AR270M9C01B0PTC RESET FUSE 265V 200MA RADIAL |
6,573 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 200 mA | 310 mA | 1.5 A | - | - | - | 27 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.551" Dia x 0.256" T (14.00mm x 6.50mm) | 0.787" (20.00mm) | - | 0.394" (10.00mm) |
