PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTGL07AS2R7K2B51A0PTC RESET FUSE 30V 425MA RADIAL |
8,282 | 0.95 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 425 mA | 565 mA | 4.5 A | - | - | - | 2.7 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|

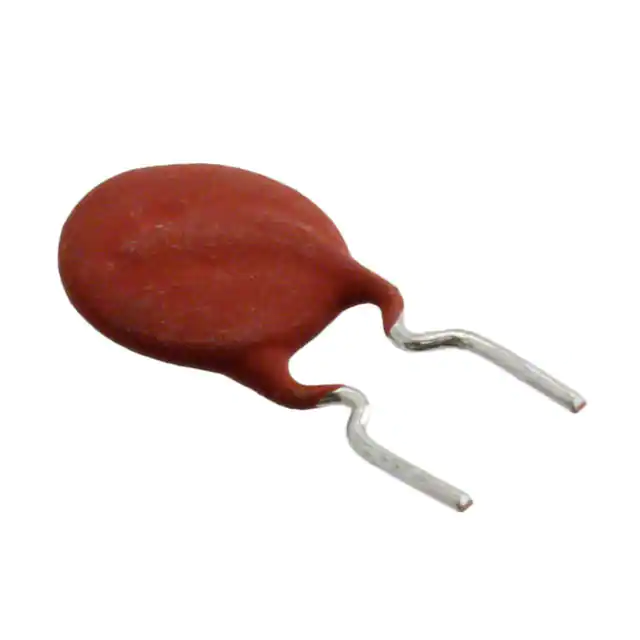

PTGL09BD2R2N2B51A0PTC RESET FUSE 24V 326MA RADIAL |
8,558 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 326 mA | 431 mA | 2 A | - | - | - | 2.2 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
PTGLESARR15M1B51B0PTC RESET FUSE 16V 1.545A RADIAL |
7,945 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 1.545 A | 2.855 A | 10 A | - | - | - | 150 mOhms | -30°C ~ 85°C | - | - | - | Through Hole | 0.531" Dia x 0.138" T (13.50mm x 3.50mm) | 0.728" (18.50mm) | - | 0.197" (5.00mm) |
|
YS5940PTHPTC RESET FUSE HEATERS 40% |
4,051 | 0.00 |
|
Datasheet |
- | PTH | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MF-RX375-APPTC RESET FUSE 60V 3.75A RADIAL |
2,421 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" Dia x 0.122" T (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
|
MF-R025-AP-99PTC RESET FUSE 60V 250MA RADIAL |
5,954 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Obsolete | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R110-AP-99PTC RESET FUSE 30V 1.1A RADIAL |
4,505 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Obsolete | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 100 mOhms | 270 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|
|
MF-R300-AP-99PTC RESET FUSE 30V 3A RADIAL |
2,664 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Obsolete | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
MF-RX375-AP-99PTC RESET FUSE 60V 3.75A RADIAL |
5,804 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" Dia x 0.122" T (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
|
MF-R1100-2-99PTC RESET FUSE 16V 11A RADIAL |
3,028 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 11 A | 22 A | 100 A | 20 s | 3 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
MF-R500-2-99PTC RESET FUSE 30V 5A RADIAL |
3,730 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
MF-R800-2-99PTC RESET FUSE 30V 8A RADIAL |
7,567 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
RUEF600K-0.144PTC RESET FUSE 30V 6A RADIAL |
8,645 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.032" (26.20mm) | - | 0.400" (10.15mm) |
|
|
RUEF900K-0.144PTC RESET FUSE 30V 9A RADIAL |
2,525 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Active | Polymeric | 30V | 9 A | 18 A | 100 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.220" (31.00mm) | - | 0.400" (10.15mm) |
|

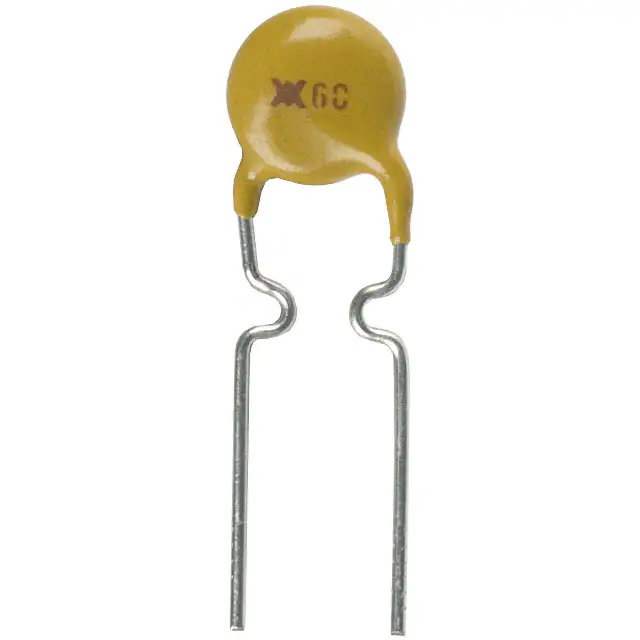

RXEF017-0.142PTC RESET FUSE 60V 170MA RADIAL |
8,689 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bulk | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|

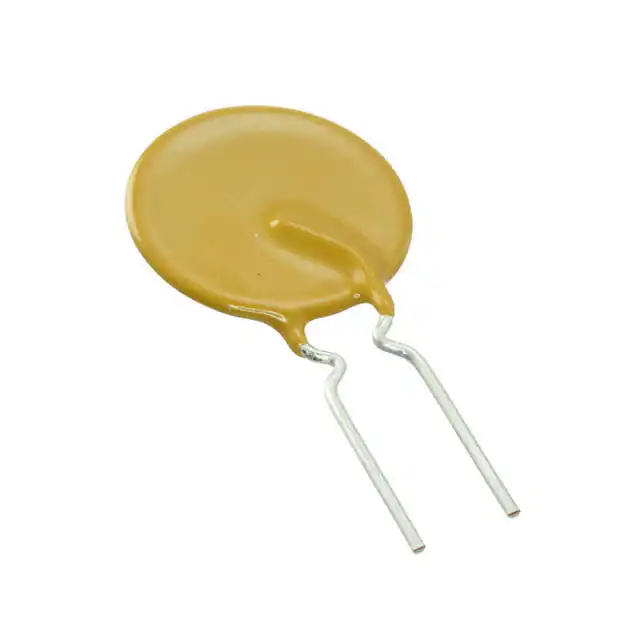

RXEF185K-0.167PTC RESET FUSE 72V 1.85A RADIAL |
9,872 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bulk | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.660" Dia x 0.118" T (16.76mm x 3.00mm) | 0.906" (23.00mm) | - | 0.199" (5.05mm) |
|
|
PSR-24883FPTC RESET FUSE 60V 160MA |
5,292 | 0.00 |
|
Datasheet |
- | PSR | Bulk | Active | Polymeric | 60V | 160 mA | 640 mA | 3 A | 7 s | 6.5 Ohms | 8 Ohms | - | 125°C | - | - | - | - | - | - | - | - |
|
MICROSMD010F-02PTC RESET FUSE 30V 100MA 1210 |
2,845 | 0.00 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 250 mA | 10 A | 1 s | 2.1 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
MINISMDC050F-02PTC RESET FUSE 24V 500MA 1812 |
4,350 | 0.00 |
|
- |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 24V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
|
TRF250-080TAPTC RESET FUSE 60V 80MA RADIAL |
3,217 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bulk | Active | Polymeric | 60V (250V Int) | 80 mA | 160 mA | 3 A | 4 s | 15 Ohms | 33 Ohms | - | 0°C ~ 85°C | - | - | - | Through Hole | 0.228" Dia x 0.181" T (5.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.197" (5.00mm) |
