PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

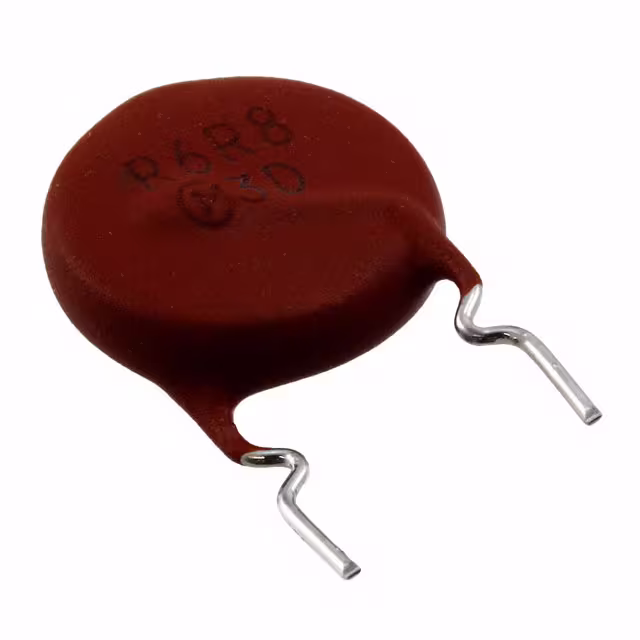

PTGL13AR0R8H2B71B0PTC RESET FUSE 30V 870MA RADIAL |
8,606 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 870 mA | 1.6 A | 5.5 A | - | - | - | 800 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.157" T (13.50mm x 4.00mm) | 0.768" (19.50mm) | - | 0.295" (7.50mm) |
|
PTGL13AR100H8B72B0PTC RESET FUSE 265V 260MA RADIAL |
5,313 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 260 mA | 480 mA | 2.2 A | - | - | - | 10 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.157" T (13.50mm x 4.00mm) | 0.768" (19.50mm) | - | 0.295" (7.50mm) |
|
|
PTGL13AR6R8M6C01B0PTC RESET FUSE 140V 370MA RADIAL |
6,745 | 1.54 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 370 mA | 575 mA | 1 A | - | - | - | 6.8 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.551" Dia x 0.236" T (14.00mm x 6.00mm) | 0.787" (20.00mm) | - | 0.394" (10.00mm) |
|

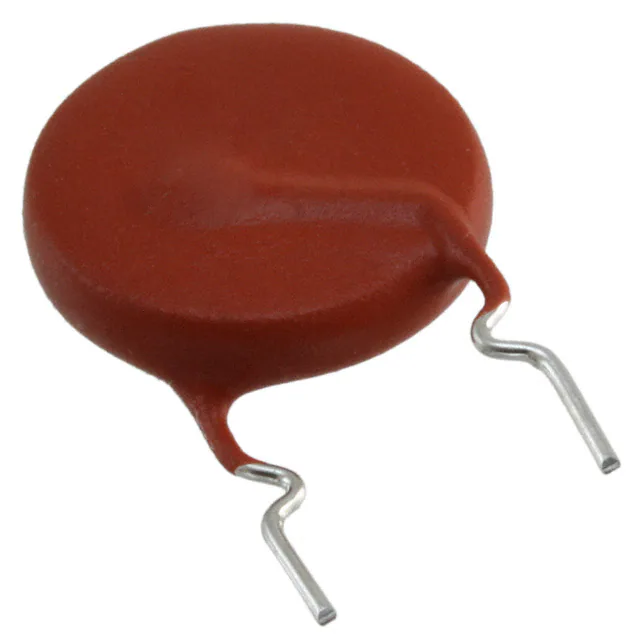

PTGL14AR100M6B72B0PTC RESET FUSE 125V 280MA RADIAL |
7,788 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 125V | 280 mA | 475 mA | 1.2 A | - | - | - | 10 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.591" Dia x 0.217" T (15.00mm x 5.50mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) |
|
|
PTGL14AR180M9C01B0PTC RESET FUSE 265V 230MA RADIAL |
8,703 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 230 mA | 380 mA | 1.8 A | - | - | - | 18 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.618" Dia x 0.256" T (15.70mm x 6.50mm) | 0.854" (21.70mm) | - | 0.394" (10.00mm) |
|
PTGL18AR6R0H8B72B0PTC RESET FUSE 265V 380MA RADIAL |
2,153 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 380 mA | 715 mA | 4.1 A | - | - | - | 6 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.728" Dia x 0.217" T (18.50mm x 5.50mm) | 0.965" (24.50mm) | - | 0.295" (7.50mm) |
|
1812L370SLPRPTC RESET FUSE 6V 3.7A 1812 |
6,655 | 0.93 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.7 A | 9.1 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|

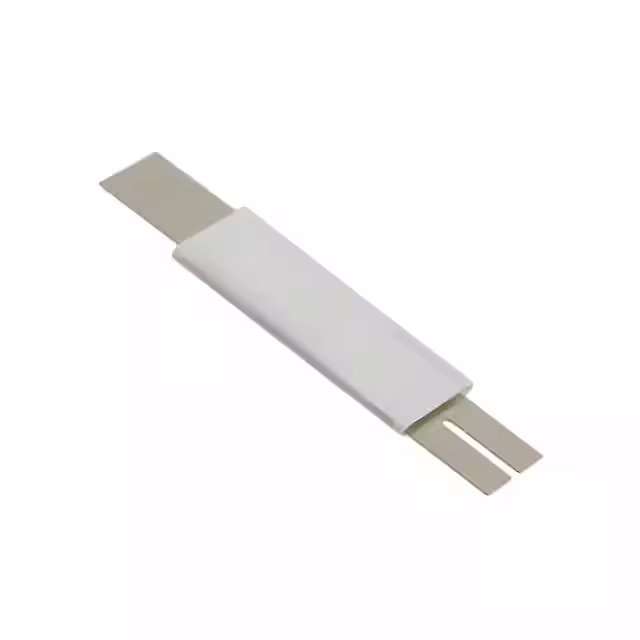

MF-LS100SPTC RESET FUSE 24V 1A STRAP |
8,818 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Obsolete | Polymeric | 24V | 1 A | 2.5 A | 100 A | 7 s | 70 mOhms | 260 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|

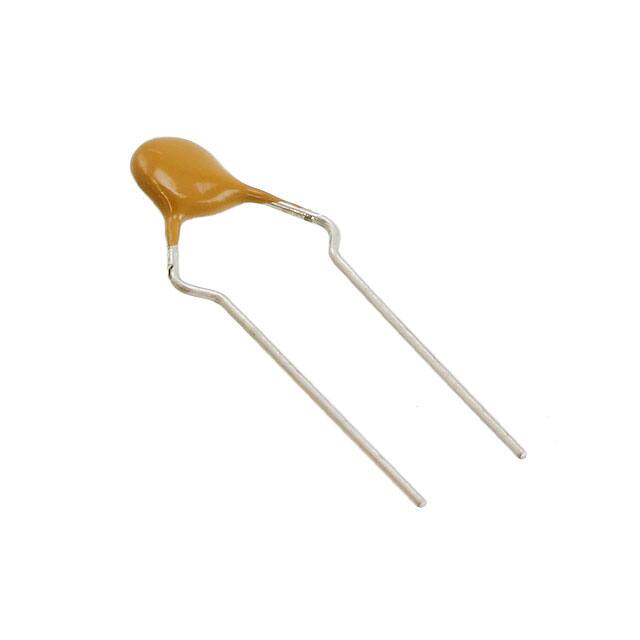

MF-R005-0-99PTC RESET FUSE 60V 50MA RADIAL |
6,123 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.315" Dia x 0.122" T (8.00mm x 3.10mm) | 0.327" (8.30mm) | - | 0.201" (5.10mm) |
|
MF-LS180SPTC RESET FUSE 24V 1.8A STRAP |
2,165 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Obsolete | Polymeric | 24V | 1.8 A | 3.8 A | 100 A | 2.9 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.199" W (25.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|

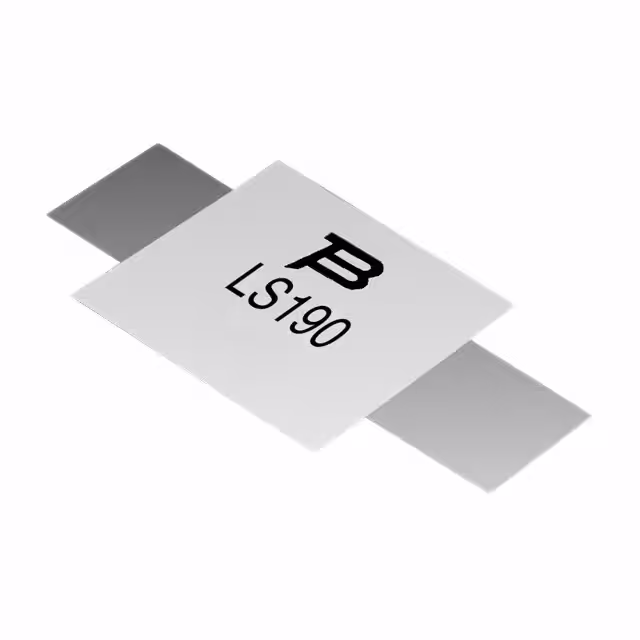

MF-LS190SPTC RESET FUSE 24V 1.9A STRAP |
6,453 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Obsolete | Polymeric | 24V | 1.9 A | 4.2 A | 100 A | 3 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
|
MF-LS260SPTC RESET FUSE 24V 2.6A STRAP |
7,774 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Obsolete | Polymeric | 24V | 2.6 A | 5.2 A | 100 A | 5 s | 25 mOhms | 76 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.447" W (25.00mm x 11.35mm) | - | 0.039" (1.00mm) | - |
|
|
MF-LS300SPTC RESET FUSE 24V 3A STRAP |
9,510 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Obsolete | Polymeric | 24V | 3 A | 6.3 A | 100 A | 4 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|

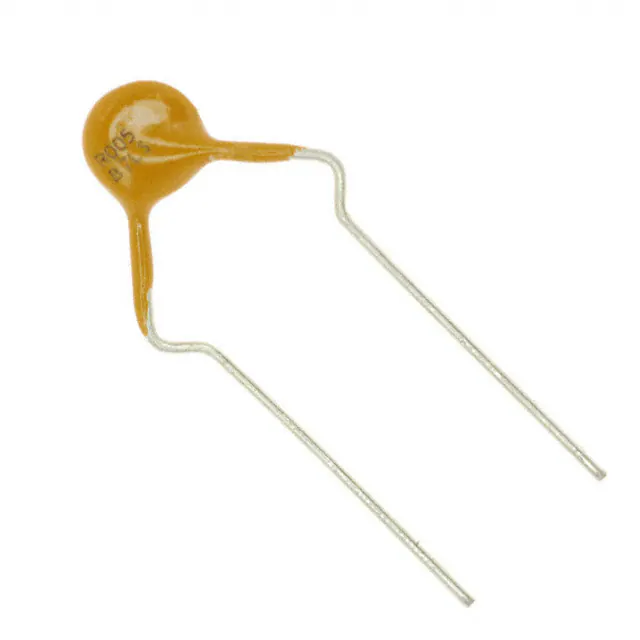

MF-R005-2-99PTC RESET FUSE 60V 50MA RADIAL |
6,227 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.315" Dia x 0.122" T (8.00mm x 3.10mm) | 0.327" (8.30mm) | - | 0.201" (5.10mm) |
|
|
MF-R005-AP-99PTC RESET FUSE 60V 50MA RADIAL |
8,605 | 0.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Obsolete | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.315" Dia x 0.122" T (8.00mm x 3.10mm) | 0.327" (8.30mm) | - | 0.201" (5.10mm) |
|
|
MF-SVS170NL-0PTC RESET FUSE 10V 1.7A STRAP |
6,346 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-SVS | Bulk | Active | Polymeric | 10V | 1.7 A | 4.1 A | 100 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | - | - | 0.035" (0.90mm) | - |
|
|
MF-SVS230S-0PTC RESET FUSE 10V 2.3A STRAP |
3,915 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-SVS | Bulk | Obsolete | Polymeric | 10V | 2.3 A | 5.2 A | 100 A | 5 s | 10 mOhms | 36 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.205" W (22.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
MF-VS170S-0PTC RESET FUSE 16V 1.7A STRAP |
6,539 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-VS | Bulk | Obsolete | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 3 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.669" L x 0.205" W (17.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
|
MF-VS170SS-0PTC RESET FUSE 16V 1.7A STRAP |
2,951 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-VS | Bulk | Obsolete | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 3 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | - | - | 0.035" (0.90mm) | - |
|
|
MF-VS210S-0PTC RESET FUSE 16V 2.1A STRAP |
9,135 | 0.00 |
|
Datasheet |
Strap | Multifuse®, MF-VS | Bulk | Obsolete | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.669" L x 0.205" W (17.00mm x 5.20mm) | - | - | - |
