PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

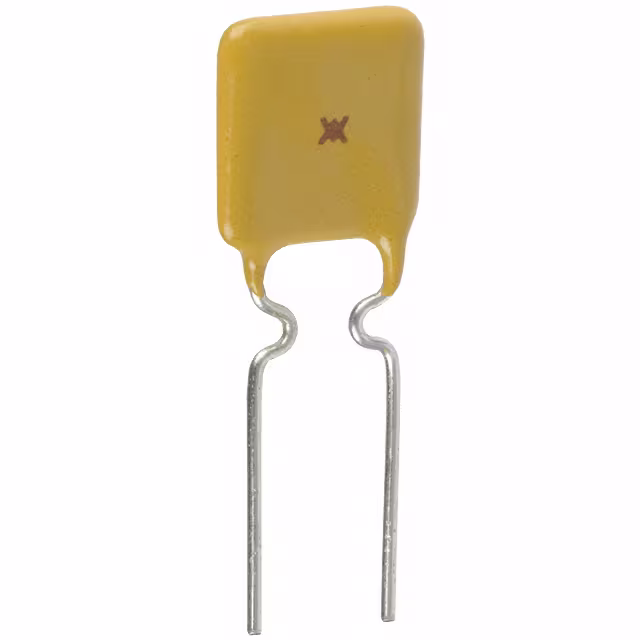

RUSBF090-2PTC RESET FUSE 16V 900MA RADIAL |
4,328 | 0.60 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Tape & Reel (TR) | Active | Polymeric | 16V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
RXEF030-2PTC RESET FUSE 72V 300MA RADIAL |
3,181 | 0.48 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) |
|
PTSLR06038V075PTC RESET FUSE 750MA 8V 0603 |
2,480 | 0.34 |
|
Datasheet |
0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 8V | 750 mA | 1.5 A | 25 A | 1 s | 30 mOhms | 165 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.039" (1.00mm) | - |
|
SMD2920B300TF/15PTC RESET FUSE 15V 3A 2920 |
1,563 | 0.37 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 15V | 3 A | 5 A | 40 A | 20 s | 12 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
|

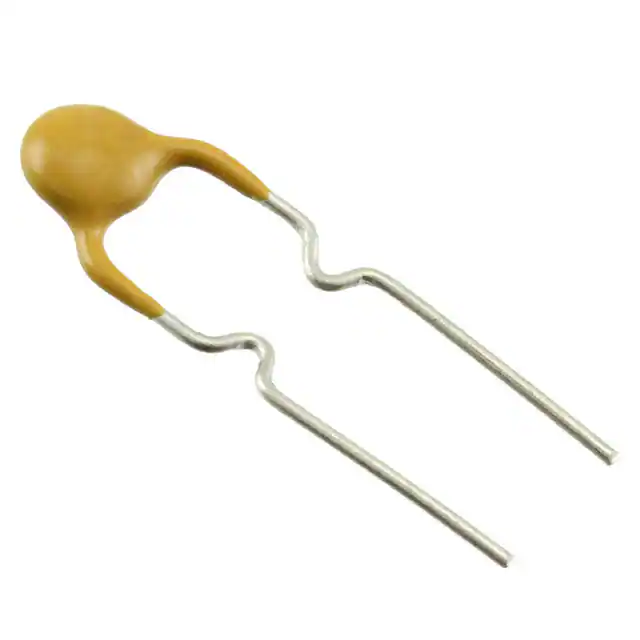

RXEF020PTC RESET FUSE 72V 200MA RADIAL |
13,392 | 0.42 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.461" (11.70mm) | - | 0.199" (5.05mm) |
|

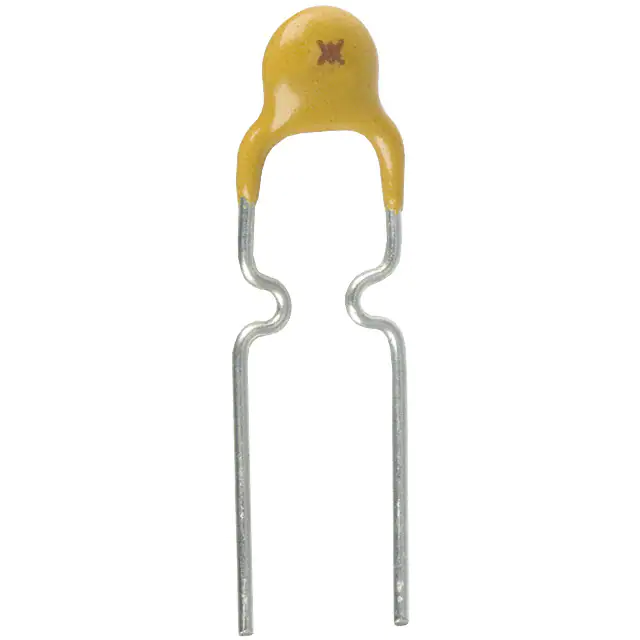

RUSBF075PTC RESET FUSE 6V 750MA RADIAL |
5,691 | 0.48 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 6V | 750 mA | 1.3 A | 40 A | 400 ms | 110 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|
MF-R030-2PTC RESET FUSE 60V 300MA RADIAL |
13,811 | 0.64 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
1206L035YRPTC RESET FUSE 6V 350MA 1206 |
9,695 | 0.49 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|

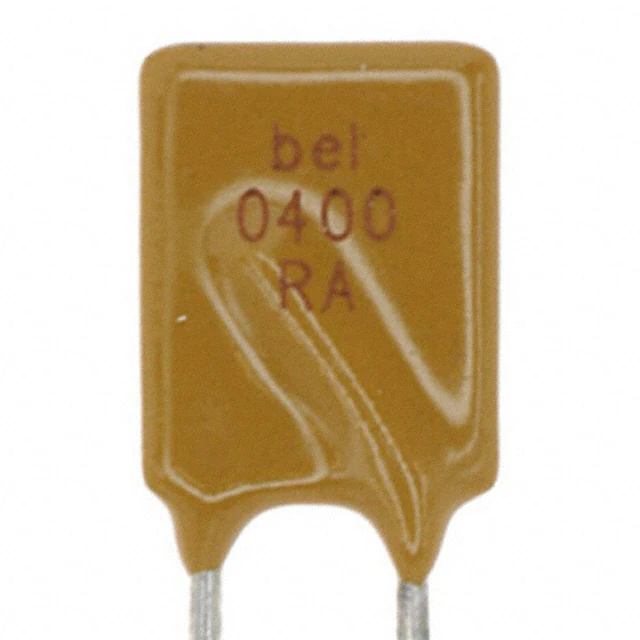

0ZRA0400FF1EPTC RESET FUSE 16V 4A RADIAL |
8,370 | 0.39 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 3.5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
MF-R090PTC RESET FUSE 60V 900MA RADIAL |
7,842 | 0.39 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" L x 0.122" W (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
MF-RX110/72-0PTC RESET FUSE 72V 1.1A RADIAL |
7,048 | 0.39 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.662" (16.84mm) | - | 0.201" (5.10mm) |
|
MF-R065PTC RESET FUSE 60V 650MA RADIAL |
6,120 | 0.63 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|

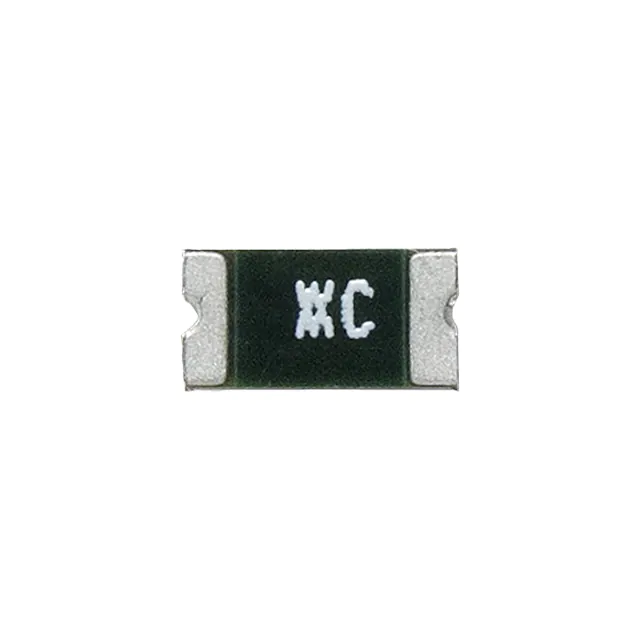

NANOSMDC025F-2PTC RESET FUSE 16V 250MA 1206 |
5,663 | 0.49 |
|
Datasheet |
1206 (3216 Metric), Concave | nanoSMD | Tape & Reel (TR) | Active | Polymeric | 16V | 250 mA | 580 mA | 100 A | 100 ms | - | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.032" (0.80mm) | - |
|
MF-R135PTC RESET FUSE 30V 1.35A RADIAL |
5,071 | 0.64 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 65 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
|
RXEF030PTC RESET FUSE 72V 300MA RADIAL |
4,834 | 0.44 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) |
|
PTS080524V010PTC RESET FUSE 24V 100MA 0805 |
4,456 | 0.35 |
|
Datasheet |
0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 24V | 100 mA | 300 mA | 100 A | 1.5 s | - | - | - | - | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
MF-R040PTC RESET FUSE 60V 400MA RADIAL |
4,145 | 0.39 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
|
1206L110THYRPTC RESET FUSE 8V 1.1A 1206 |
15,843 | 0.50 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 100 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
NANOASMDC016F-2PTC RESET FUSE 48V 160MA 1206 |
12,376 | 0.50 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoASMD | Tape & Reel (TR) | Active | Polymeric | 48V | 160 mA | 450 mA | 10 A | 300 ms | 1.1 Ohms | 5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.039" (1.00mm) | - |
|
|
NANOASMDC012F-2PTC RESET FUSE 48V 120MA 1206 |
7,065 | 0.50 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoASMD | Tape & Reel (TR) | Active | Polymeric | 48V | 120 mA | 390 mA | 10 A | 200 ms | 1.4 Ohms | 6.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.039" (1.00mm) | - |
