PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B59880C0120A070PTC RESET FUSE 265V 55MA RADIAL |
8,959 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 55 mA | 110 mA | 400 mA | - | - | - | 70 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
MF-NSHT010KX-2PTC RESET FUSE 30V 100MA 1206 |
6,061 | 1.00 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSHT | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 500 mA | 20 A | 1.5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
30R600UFPTC RESET FUSE 30V 6A RADIAL |
5,637 | 0.75 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.055" (26.80mm) | - | 0.402" (10.20mm) |
|
2920L260/33DRPOLYSWITCH RESETTABLE PPTC |
754 | 0.00 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 33V | 2.6 A | 5 A | 40 A | 15 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
|
B59606A0110A062PTC RESET FUSE 30V 90MA 1210 |
31,124 | 1.10 |
|
Datasheet |
1210 (3225 Metric) | B59606 | Tape & Reel (TR) | Active | Ceramic | 30V | 90 mA | 180 mA | 500 mA | - | - | - | 27 Ohms | -20°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.071" (1.80mm) | - |
|
|
MF-NSHT020KX-2PTC RESET FUSE 30V 200MA 1206 |
2,169 | 1.00 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSHT | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 1 A | 20 A | 100 ms | 600 mOhms | 5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
FEMTOASMDC010F/15-2PTC RESET FUSE 15V 100MA 0603 |
783 | 1.15 |
|
Datasheet |
0603 (1608 Metric) | PolySwitch®, femtoASMD | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 10 A | 100 ms | 2 Ohms | 14 Ohms | - | - | Automotive | AEC-Q200 | AEC-Q200 | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.033" (0.85mm) | - |
|

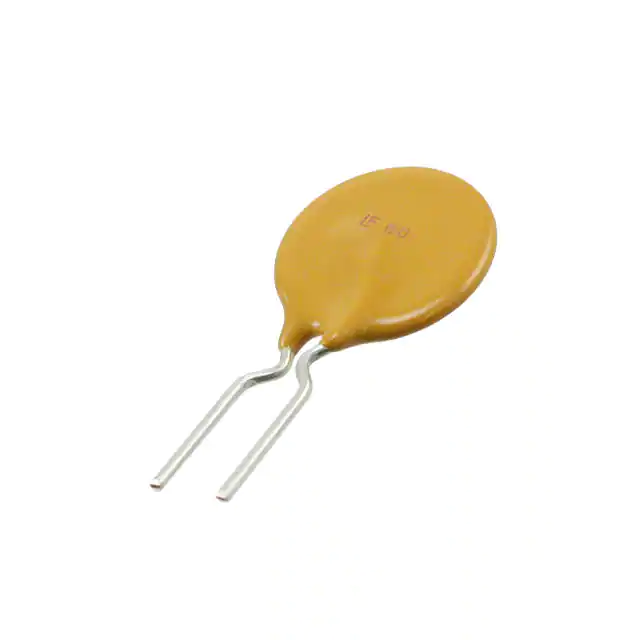

60R135XFPTC RESET FUSE 60V 1.35A RADIAL |
547 | 0.54 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.535" Dia x 0.122" T (13.58mm x 3.10mm) | 0.780" (19.80mm) | - | 0.201" (5.10mm) |
|
0ZRE0100FF1APTC RESET FUSE 240V 1A RADIAL |
7,611 | 0.97 |
|
Datasheet |
Radial, Disc | 0ZRE | Bulk | Active | Polymeric | 240V | 1 A | 2 A | 10 A | 21 s | 220 mOhms | 580 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.402" (10.20mm) |
|

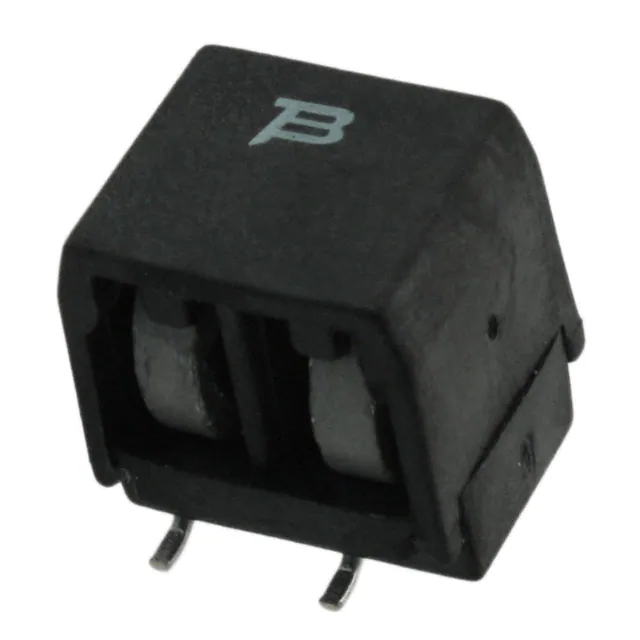

CMF-SDP35A-2PTC RESET FUSE 230V 110MA 4SMD |
1,209 | 1.02 |
|
Datasheet |
4-SMD Cube | CMF-SDP | Tape & Reel (TR) | Active | Ceramic | 230V (600V Int) | 110 mA | 230 mA | 2.5 A | 200 ms | - | - | 35 Ohms | -40°C ~ 125°C | - | - | - | Surface Mount | 0.344" L x 0.283" W (8.75mm x 7.20mm) | - | 0.402" (10.20mm) | - |
|
B59872C0120A051PTC RESET FUSE 265V 80MA RADIAL |
4,298 | 1.54 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 80 mA | 160 mA | 1 A | - | - | - | 35 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
, Concave.jpg)
|
FEMTOSMDC020F-2PTC RESET FUSE 9V 200MA 0603 |
41,618 | 0.82 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, femtoSMDC | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 450 mA | 40 A | 100 ms | 700 mOhms | 3 Ohms | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|

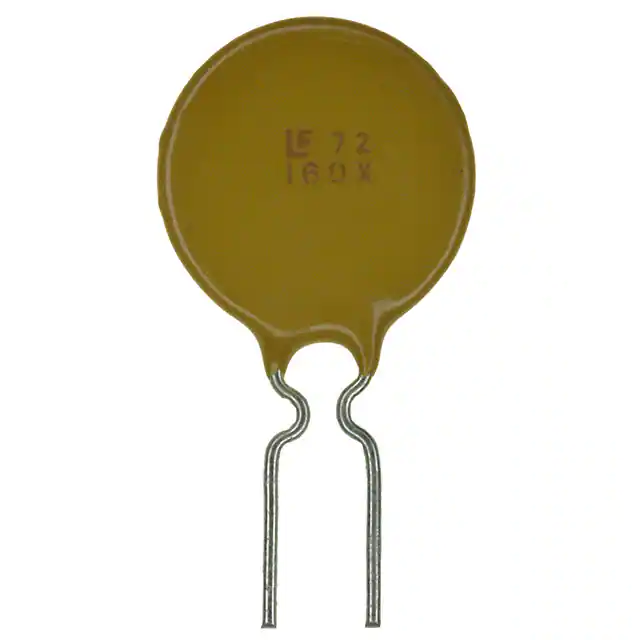

72R160XFPTC RESET FUSE 72V 1.6A RADIAL |
11,096 | 0.56 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.600" Dia x 0.122" T (15.24mm x 3.10mm) | 0.850" (21.60mm) | - | 0.201" (5.10mm) |
|
MF-PSHT005KX-2PTC RESET FUSE 16V 50MA 0805 |
5,250 | 1.07 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSHT | Tape & Reel (TR) | Active | Polymeric | 16V | 50 mA | 250 mA | 40 A | 1.5 s | 1.5 Ohms | 50 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.031" (0.80mm) | - |
|

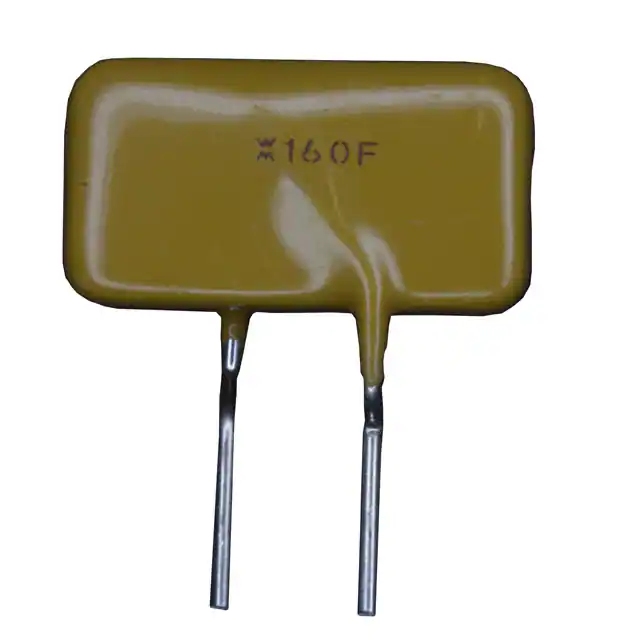

TRF600-160PTC RESET FUSE 250V 160MA RADIAL |
765 | 1.27 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Bulk | Active | Polymeric | 250V (600V Int) | 160 mA | 320 mA | 60 A | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|

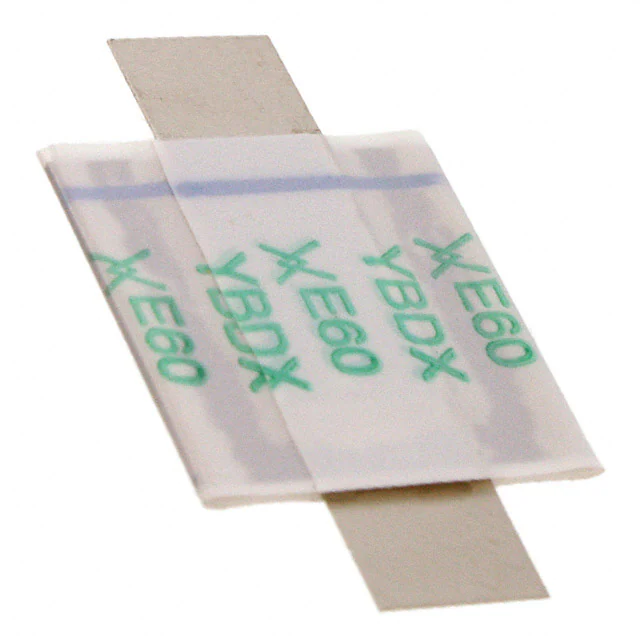

LR4-600FPTC RESET FUSE 20V 6A STRAP |
9,666 | 1.38 |
|
Datasheet |
Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 6 A | 11.7 A | 100 A | 5 s | 7 mOhms | 19 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.559" W (25.00mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
RGEF1400PTC RESET FUSE 16V 14A RADIAL |
293 | 1.33 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.114" W (23.50mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|
|
B59886C0120A070PTC RESET FUSE 550V 12MA RADIAL |
2,528 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 550V | 12 mA | 24 mA | 100 mA | - | - | - | 1.5 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
MF-MSHT020KX-21812 HIGH TEMP SMD POLYMER PTC 0 |
2,365 | 1.13 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse® MF-MSHT | Tape & Reel (TR) | Active | Polymeric | 42V | 200 mA | 1 A | 40 A | 100 ms | 500 mOhms | 4.5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|

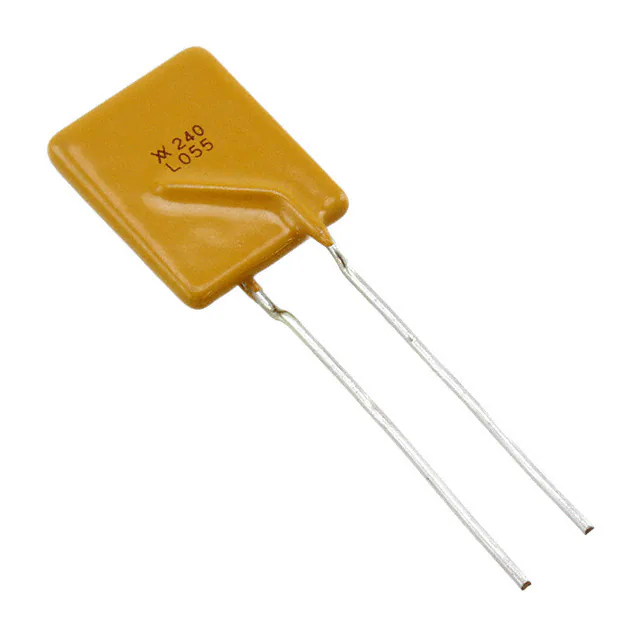

LVR055KPTC RESET FUSE 240V 550MA RADIAL |
1,707 | 1.27 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 550 mA | 1.25 A | 7 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.822" (20.87mm) | - | 0.199" (5.05mm) |
