PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASMD150F/33-2PTC RESET FUSE 33V 1.2A 2SMD |
5,354 | 0.80 |
|
Datasheet |
2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 33V | 1.2 A | 2.88 A | 40 A | 14 s | 68 mOhms | 230 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | 0.118" (3.00mm) | - | - |
|
LVR016S-2PTC RESET FUSE 240V 160MA RADIAL |
5,011 | 0.80 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
PTSLR12066V110PTC RESET FUSE 6V 1.1A 1206 |
4,715 | 0.70 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 50 A | 300 ms | 15 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
|
PTSLR12066V150PTC RESET FUSE 6V 1.5A 1206 |
4,181 | 0.70 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 50 A | 300 ms | 10 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
0ZTJ0035FF2EPTC RESET FUSE 16V 350MA 1206 |
2,052 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | 0ZTJ | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 950 mA | 80 A | 200 ms | 200 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.043" (1.10mm) | - |
|
|
0ZTJ0016FF2EPTC RESET FUSE 30V 160MA 1206 |
1,821 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | 0ZTJ | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 800 mA | 80 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.043" (1.10mm) | - |
|
MF-RHT050-2PTC RESET FUSE 30V 500MA RADIAL |
3,827 | 0.81 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-USML300/6-2PTC RESET FUSE 6V 3A 1210 |
2,498 | 0.81 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
CMF-RL50A-10-0PTC RESET FUSE 220V 50MA RADIAL |
1,270 | 0.81 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 50 mA | 100 mA | 3 A | 100 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
|

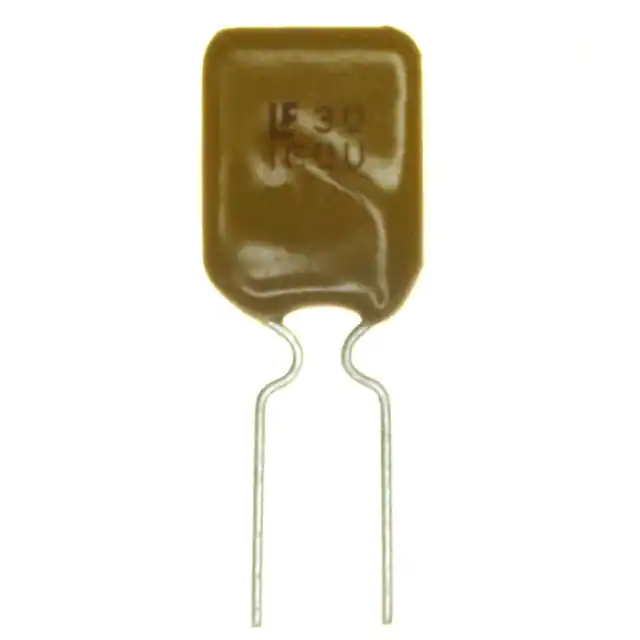

30R160UPRPTC RESET FUSE 30V 1.6A RADIAL |
3,980 | 0.61 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
TRF250-180-2PTC RESET FUSE 100V 180MA RADIAL |
2,430 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 100V (250V Int) | 180 mA | 650 mA | 10 A | 2 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.150" T (9.00mm x 3.80mm) | 0.472" (12.00mm) | - | 0.200" (5.08mm) |
|
RUEF500K-2PTC RESET FUSE 30V 5A RADIAL |
2,064 | 0.83 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.008" (25.60mm) | - | 0.400" (10.15mm) |
|
|
PTSLR12066V400PTC RESET FUSE 6V 4A 1206 |
1,184 | 0.64 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 8 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|

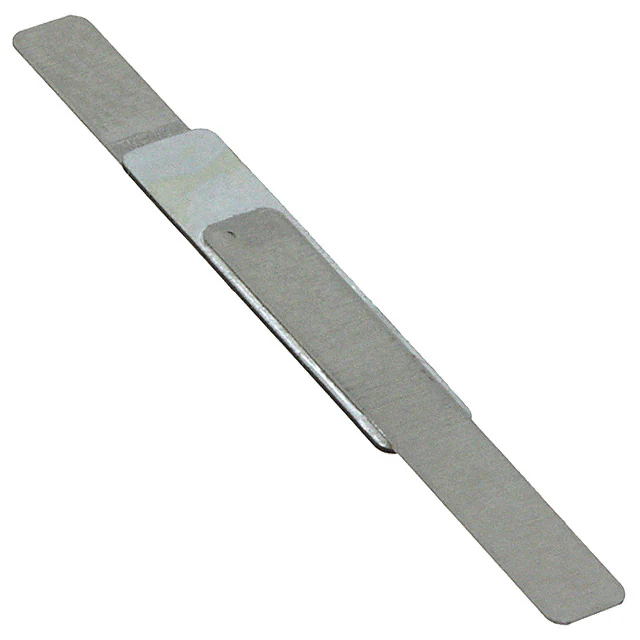

VLR175FPTC RESET FUSE 12V 1.75A STRAP |
1,029 | 0.91 |
|
Datasheet |
Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 70°C | - | - | - | User Defined | 0.935" L x 0.122" W (23.75mm x 3.10mm) | - | 0.032" (0.80mm) | - |
|
VTP210LFPTC RESET FUSE 16V 2.1A STRAP |
1,015 | 0.91 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.024" L x 0.209" W (26.00mm x 5.30mm) | - | 0.032" (0.80mm) | - |
|
MF-R700-2PTC RESET FUSE 30V 7A RADIAL |
4,727 | 0.97 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.870" L x 0.118" W (22.10mm x 3.00mm) | 1.173" (29.80mm) | - | 0.402" (10.20mm) |
|

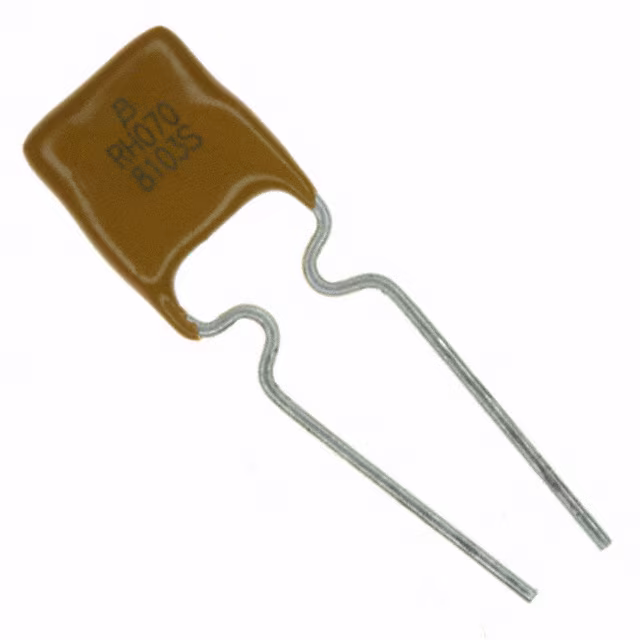

MF-RHT070-0PTC RESET FUSE 16V 700MA RADIAL |
3,472 | 0.78 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 700 mA | 1.4 A | 40 A | 4 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.270" L x 0.118" W (6.86mm x 3.00mm) | 0.425" (10.80mm) | - | 0.114" (2.90mm) |
|

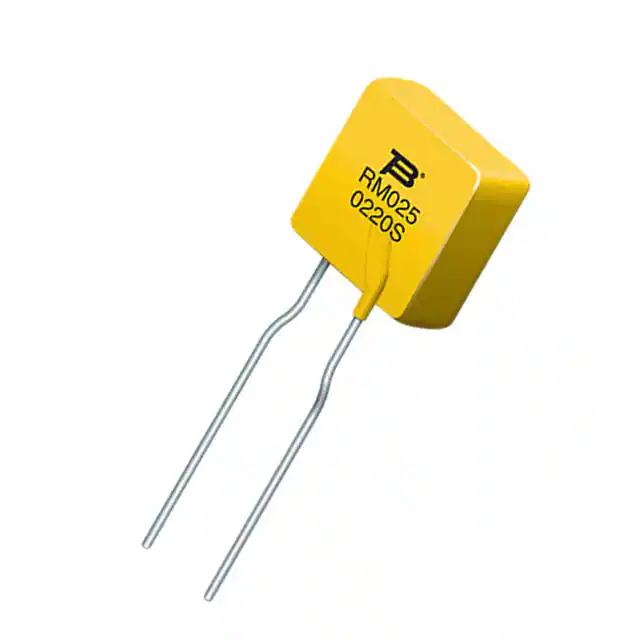

MF-RM025/240-0PTC RESET FUSE 240V 250MA RADIAL |
2,933 | 0.78 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.394" L x 0.150" W (10.00mm x 3.80mm) | 0.787" (20.00mm) | - | 0.114" (2.90mm) |
|
0ZRS0070FF1EPTC RESET FUSE 32V 700MA RADIAL |
2,264 | 0.81 |
|
Datasheet |
Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 700 mA | 1.4 A | 100 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.201" (5.10mm) |
|

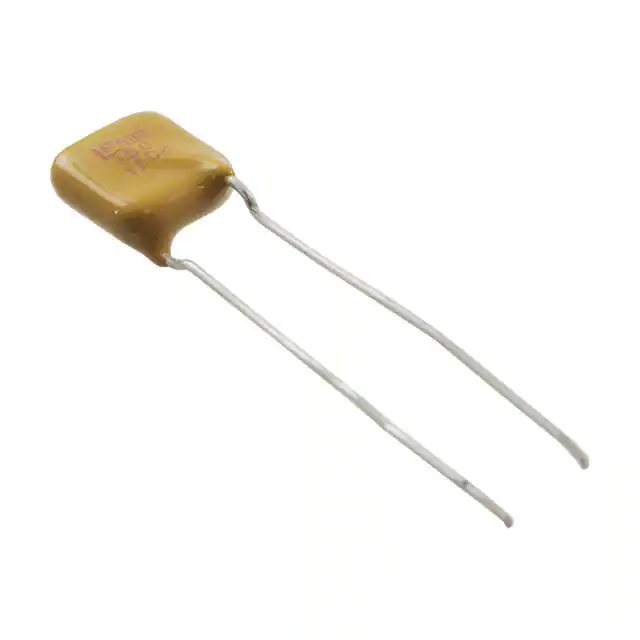

600R150-RBZRPTC RESET FUSE 60V 150MA RADIAL |
4,999 | 1.20 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Cut Tape (CT) | Active | Polymeric | 60V (600V Int) | 150 mA | 300 mA | 3 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
