PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTCCL09H471DBEPTC RESET FUSE 30V 470MA RADIAL |
1,044 | 1.68 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Bulk | Active | Ceramic | 30V | 470 mA | 705 mA | 5 A | - | - | - | 2.5 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.335" Dia x 0.157" T (8.50mm x 4.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
RGEF1100PTC RESET FUSE 16V 11A RADIAL |
400 | 1.06 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.669" L x 0.098" W (17.00mm x 2.50mm) | 1.024" (26.00mm) | - | 0.199" (5.05mm) |
|
2920L700/12MR-APTC RESET FUSE 12V 7A 2920 |
2,787 | 1.06 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 12V | 7 A | 14 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|
MF-PSHT016KX-2PTC RESET FUSE 16V 160MA 0805 |
8,616 | 1.07 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSHT | Tape & Reel (TR) | Active | Polymeric | 16V | 160 mA | 800 mA | 40 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.031" (0.80mm) | - |
|

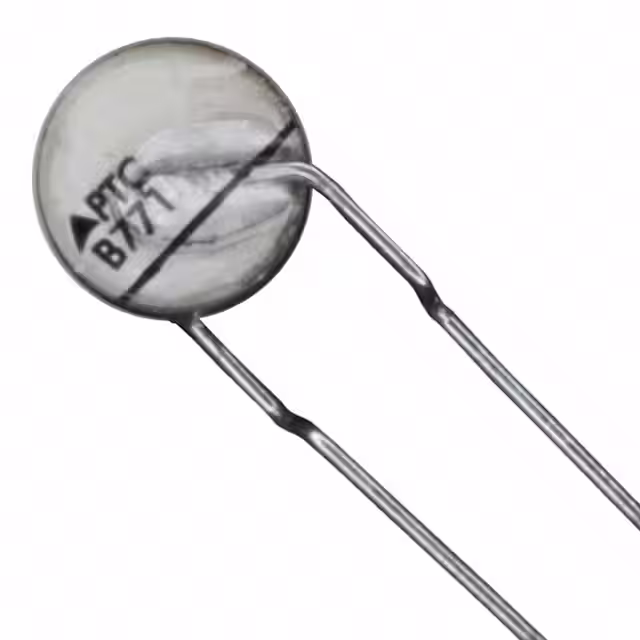

B59771B0120A070PTC RESET FUSE 420V RADIAL DISC |
4,640 | 2.82 |
|
Datasheet |
Radial, Disc | B59771 | Bulk | Active | Ceramic | 420V | - | 97 mA | 1.4 A | 3 s | - | - | 120 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL09H171HBEPTC RESET FUSE 265V 170MA RADIAL |
3,369 | 1.68 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 170 mA | 255 mA | 900 mA | - | - | - | 22 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.217" T (8.50mm x 5.50mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL09H541DBEPTC RESET FUSE 30V 540MA RADIAL |
2,927 | 1.68 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Bulk | Active | Ceramic | 30V | 540 mA | 810 mA | 6 A | - | - | - | 1.9 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.335" Dia x 0.157" T (8.50mm x 4.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
0ZRN1000FF1APTC RESET FUSE 16V 10A RADIAL |
260 | 1.51 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.402" (10.20mm) |
|
B59860C0160A070PTC RESET FUSE 160V 180MA RADIAL |
150 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 160V | 180 mA | 360 mA | 1.5 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|

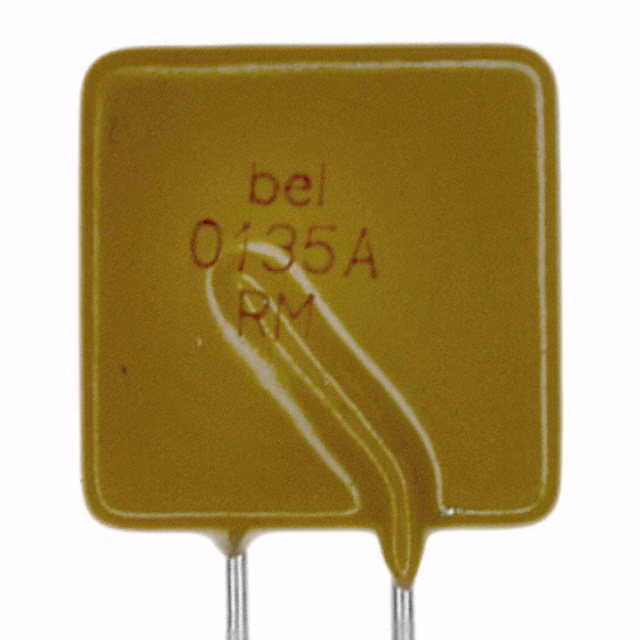

0ZRM0135AF1APTC RESET FUSE 120V 1.35A RADIAL |
1,008 | 1.03 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.35 A | 2.7 A | 13.5 A | 20 s | 110 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.610" L x 0.161" W (15.50mm x 4.10mm) | 0.811" (20.60mm) | - | 0.201" (5.10mm) |
|
RXEF300-1PTC RESET FUSE 72V 3A RADIAL |
250 | 0.98 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.941" Dia x 0.118" T (23.90mm x 3.00mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
|
RUEF800-1PTC RESET FUSE 30V 8A RADIAL |
163 | 0.99 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 8 A | 16 A | 100 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.118" (28.40mm) | - | 0.400" (10.15mm) |
|
B59985C0120A051PTC RESET FUSE 30V 250MA RADIAL |
14,057 | 0.98 |
|
Datasheet |
Radial, Disc | B59985 | Tape & Reel (TR) | Active | Ceramic | 30V | 250 mA | 500 mA | 1 A | - | - | - | 4.6 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
RF5030-000PPTC-MINI-PSW |
8,219 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®nanoASMDCH | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 20 A | 20 s | 3.5 Ohms | 35 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.033" (0.85mm) | - |
|
|
B59980C0080A051PTC RESET FUSE 80V 50MA RADIAL |
4,110 | 0.98 |
|
Datasheet |
Radial, Disc | B59980 | Tape & Reel (TR) | Active | Ceramic | 80V | 50 mA | 110 mA | 1 A | - | - | - | 25 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
RXEF300-2PTC RESET FUSE 72V 3A RADIAL |
3,229 | 0.88 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.941" Dia x 0.118" T (23.90mm x 3.00mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
|
|
0ZCF0700FF2CPTC RESET FUSE 7.0A 12V SMD 2920 |
1,651 | 0.00 |
|
Datasheet |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 12V | 7 A | 14 A | 100 A | - | - | - | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.059" (1.50mm) | - |
|
|
NANOASMDCH075F-2PPTC-MINI-PSW |
562 | 1.10 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®nanoASMDCH | Tape & Reel (TR) | Active | Polymeric | 12V | 750 mA | 2.25 A | 40 A | 150 ms | 80 mOhms | 460 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.039" (1.00mm) | - |
|
|
MICROASMDCH110F-2PPTC-MINI-PSW |
466 | 1.10 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 3.3 A | 20 A | 500 ms | 60 mOhms | 500 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.041" (1.05mm) | - |
|

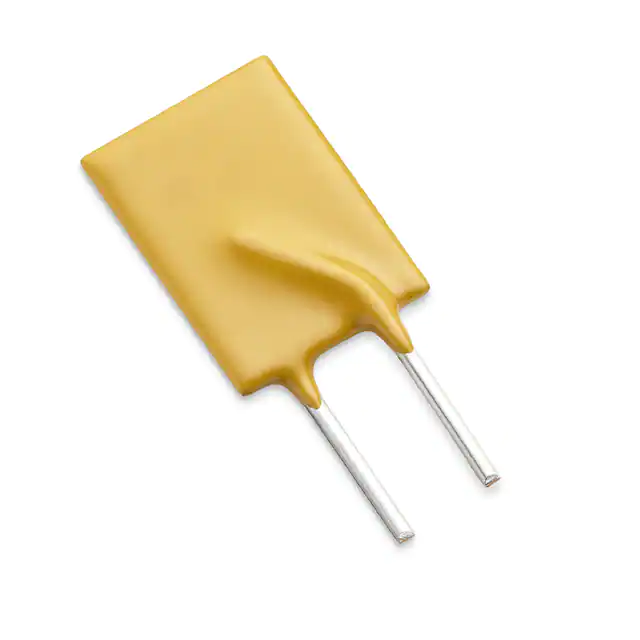

AHRL750PTC RESET FUSE 7.5A 16V RAD |
283 | 1.22 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 7.5 A | 15 A | 100 A | 7 s | 7.3 mOhms | 12.5 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.465" L x 0.118" W (11.80mm x 3.00mm) | 0.748" (19.00mm) | - | 0.199" (5.05mm) |
