PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVR025K-2PTC RESET FUSE 240V 250MA RADIAL |
3,615 | 0.84 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.740" (18.80mm) | - | 0.200" (5.08mm) |
|

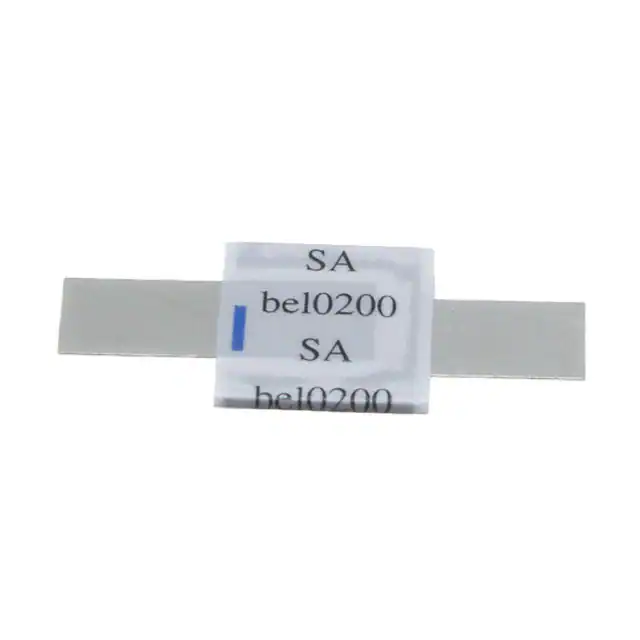

0ZSA0200FF1EPTC RESET FUSE 30V 2A STRAP |
2,672 | 0.78 |
|
Datasheet |
Strap | 0ZSA | Bulk | Active | Polymeric | 30V | 2 A | 4.4 A | 100 A | 4 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
MF-RHT100-2PTC RESET FUSE 30V 1A RADIAL |
1,886 | 0.84 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5.2 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" L x 0.118" W (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|

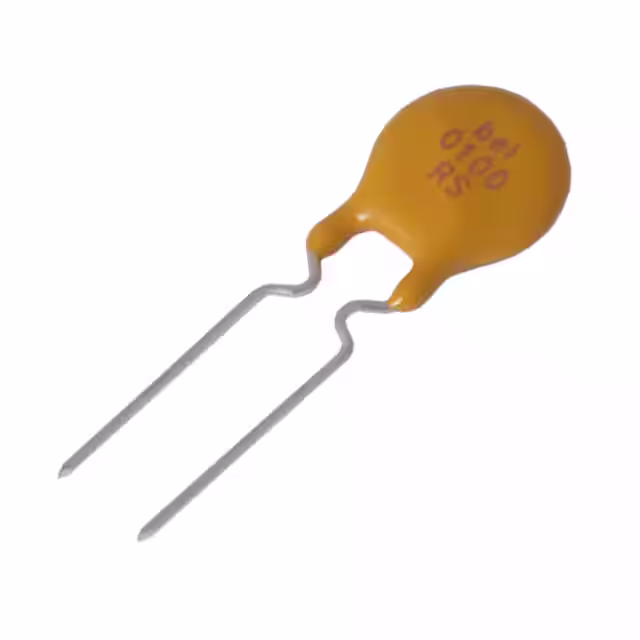

0ZRS0100FF1EPTC RESET FUSE 32V 1A RADIAL |
1,550 | 0.81 |
|
Datasheet |
Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 1 A | 1.9 A | 100 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
2920L030DR-APTC RESET FUSE 60V 300MA 2920 |
1,094 | 0.84 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 10 A | 3 s | 1.2 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
16R400GPRPTC RESET FUSE 16V 4A RADIAL |
6,406 | 0.68 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Cut Tape (CT) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
250R080ZRPTC RESET FUSE 60V 80MA RADIAL |
4,741 | 0.85 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Cut Tape (CT) | Active | Polymeric | 60V (250V Int) | 80 mA | 160 mA | 3 A | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.228" Dia x 0.181" T (5.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.201" (5.10mm) |
|
MF-NSML150/6-2PTC RESET FUSE 6V 1.5A 1206 |
8,915 | 0.87 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 50 A | 5 s | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
MICROSMDCH010F-02PTC RESET FUSE 30V 100MA 1210 |
8,315 | 0.86 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 350 mA | 10 A | 100 ms | 1.2 Ohms | 11 Ohms | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.038" (0.97mm) | - |
|
PTSLR12106V300PTC RESET FUSE 6V 3A 1210 |
2,530 | 0.66 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 2 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
B59990C0120A051PTC RESET FUSE 80V 50MA RADIAL |
13,711 | 0.79 |
|
Datasheet |
Radial, Disc | B59990 | Tape & Reel (TR) | Active | Ceramic | 80V | 50 mA | 100 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|

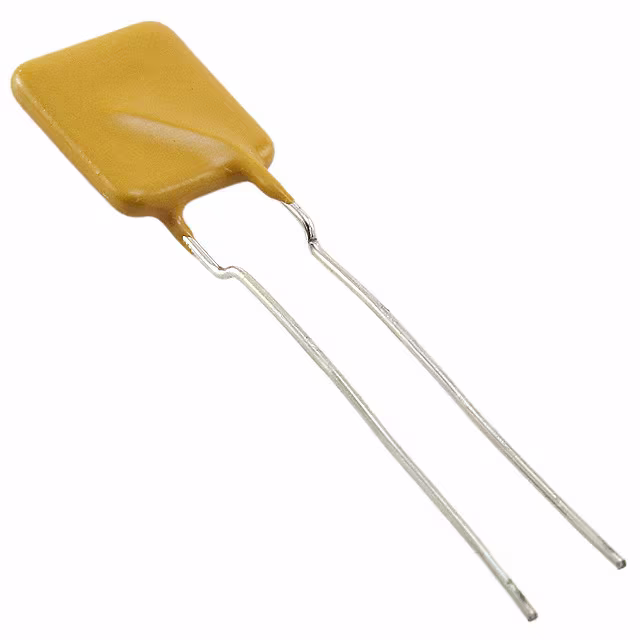

LVR033K-2PTC RESET FUSE 240V 330MA RADIAL |
4,213 | 0.80 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
PTSLR08056V175PTC RESET FUSE 6V 1.75A 0805 |
3,266 | 0.78 |
|
Datasheet |
0805 (2012 Metric), Concave | PTSLR0805 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 600 ms | 5 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.035" (0.88mm) | - |
|
250R180MRPTC RESET FUSE 60V 180MA RADIAL |
2,867 | 0.88 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Cut Tape (CT) | Active | Polymeric | 60V (250V Int) | 180 mA | 650 mA | 10 A | 20 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.374" Dia x 0.181" T (9.50mm x 4.60mm) | 0.472" (12.00mm) | - | 0.201" (5.10mm) |
|
250S130VZRPTC RESET FUSE 60V 130MA 2SMD |
1,513 | 0.97 |
|
Datasheet |
2-SMD | POLY-FUSE®, 250S | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.240" L x 0.272" W (6.10mm x 6.90mm) | - | 0.126" (3.20mm) | - |
|
TRF250-120T-2PTC RESET FUSE 60V 120MA RADIAL |
1,489 | 0.87 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1.2 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
FEMTOASMDC008F-2PTC RESET FUSE 12V 80MA 0603 |
39,281 | 0.90 |
|
Datasheet |
0603 (1608 Metric) | PolySwitch®, femtoASMD | Tape & Reel (TR) | Active | Polymeric | 12V | 80 mA | 200 mA | 10 A | 100 ms | 2.8 Ohms | 14 Ohms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.033" (0.85mm) | - |
|
ASMDC075F-2PTC RESET FUSE 33V 750MA 2SMD |
9,148 | 0.90 |
|
Datasheet |
2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 33V | 750 mA | 1.5 A | 40 A | 1 s | 100 mOhms | 610 mOhms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.035" (0.90mm) | - |
|
|
MF-RHT100-0PTC RESET FUSE 30V 1A RADIAL |
2,232 | 0.81 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5.2 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" L x 0.118" W (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
RHEF750-2PTC RESET FUSE 16V 7.5A RADIAL |
5,539 | 1.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.199" (5.05mm) |
