PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRC0050FF2EPTC RESET FUSE 90V 500MA RADIAL |
16,926 | 0.33 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" L x 0.122" W (7.90mm x 3.10mm) | - | - | 0.201" (5.10mm) |
|

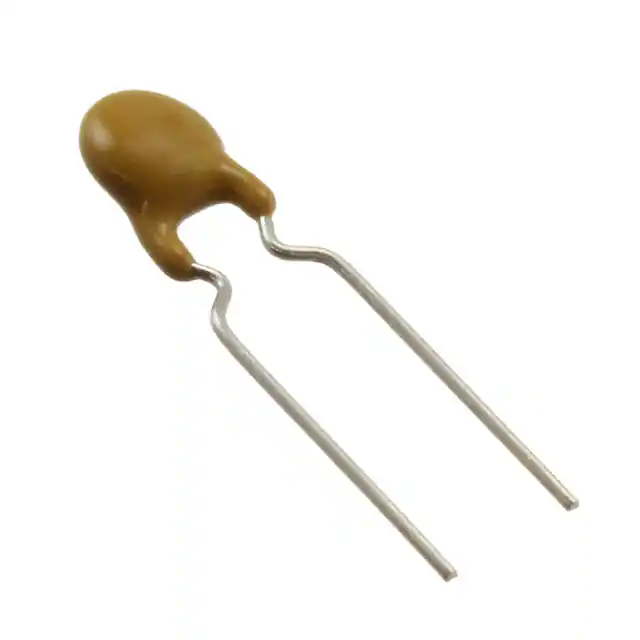

0ZRR0017FF1EPTC RESET FUSE 60V 170MA RADIAL |
3,002 | 0.34 |
|
Datasheet |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PFUF.010.2PTC RESET FUSE 30V 100MA 1210 |
6,230 | 0.38 |
|
Datasheet |
1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 300 mA | 10 A | 600 ms | 800 mOhms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.093" W (3.22mm x 2.35mm) | - | 0.037" (0.95mm) | - |
|
PFNF.075.2PTC RESET FUSE 6V 750MA 1206 |
5,162 | 0.38 |
|
Datasheet |
1206 (3216 Metric), Concave | PFNF | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 100 A | 100 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
|
PFUF.110.2PTC RESET FUSE 6V 1.1A 1210 |
2,847 | 0.38 |
|
Datasheet |
1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 1 s | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
|
PFUF.050.2PTC RESET FUSE 13.2V 500MA 1210 |
1,241 | 0.38 |
|
Datasheet |
1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 13.2V | 500 mA | 1 A | 40 A | 100 ms | 180 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
|
PFUF.150.2PTC RESET FUSE 6V 1.5A 1210 |
1,050 | 0.38 |
|
Datasheet |
1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 40 A | 5 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.025" (0.63mm) | - |
|

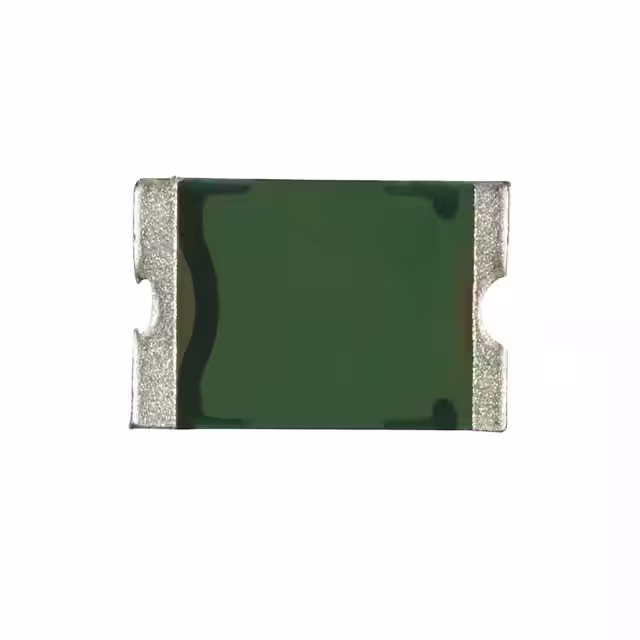

PTSA121013V050PTC RESET FUSE 500MA 13V 1210 |
3,944 | 0.34 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSA1210 | Tape & Reel (TR) | Active | - | 13.2V | 500 mA | 1 A | 40 A | 100 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.098" W (3.25mm x 2.50mm) | - | 0.033" (0.85mm) | - |
|
PTSA181230V030PTC RESET FUSE 300MA 30V 1812 |
1,736 | 0.34 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 30V | 300 mA | 600 mA | 40 A | 150 ms | 200 mOhms | 1.75 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.039" (1.00mm) | - |
|
|
PTSA181260V010PTC RESET FUSE 100MA 60V 1812 |
1,373 | 0.34 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 60V | 100 mA | 300 mA | 10 A | 150 ms | 700 mOhms | 15 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.039" (1.00mm) | - |
|
MF-LR190PTC RESET FUSE 15V 1.9A STRAP |
5,989 | 0.71 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 15V | 1.9 A | 3.9 A | 100 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.199" W (21.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
|
PTSA181260V014PTC RESET FUSE 140MA 60V 1812 |
3,995 | 0.34 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 60V | 140 mA | 340 mA | 10 A | 300 ms | 650 mOhms | 6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.039" (1.00mm) | - |
|
RXEF050S-APPTC RESET FUSE 72V 500MA RADIAL |
3,773 | 0.42 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
RXEF017S-2PTC RESET FUSE 60V 170MA RADIAL |
5,000 | 0.45 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.441" (11.20mm) | - | 0.199" (5.05mm) |
|
MF-R020-APPTC RESET FUSE 60V 200MA RADIAL |
1,548 | 0.64 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.5 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-R135-2PTC RESET FUSE 30V 1.35A RADIAL |
18,371 | 0.42 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 65 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
RUEF135-APPTC RESET FUSE 30V 1.35A RADIAL |
3,999 | 0.52 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 100 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
0ZRG0160FF1EPTC RESET FUSE 30V 1.6A RADIAL |
2,651 | 0.44 |
|
Datasheet |
Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
0ZRG0110FF1EPTC RESET FUSE 30V 1.1A RADIAL |
1,824 | 0.44 |
|
Datasheet |
Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
0ZRG0090FF1EPTC RESET FUSE 30V 900MA RADIAL |
1,467 | 0.44 |
|
Datasheet |
Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
