PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60R160XMRPTC RESET FUSE 60V 1.6A RADIAL |
835 | 0.59 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.600" Dia x 0.122" T (15.24mm x 3.10mm) | 0.850" (21.60mm) | - | 0.201" (5.10mm) |
|
PTSLR18126V300PTC RESET FUSE 6V 3A 1812 |
2,463 | 1.13 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSLR1812 | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6.2 A | 50 A | 5 s | 3 mOhms | 21 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
B59960C0080A070PTC RESET FUSE 80V 130MA RADIAL |
756 | 1.52 |
|
Datasheet |
Radial, Disc | B59960 | Bulk | Active | Ceramic | 80V | 130 mA | 265 mA | 4.3 A | - | - | - | 5.6 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
B59873C0120A070PTC RESET FUSE 265V 70MA RADIAL |
5,392 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 70 mA | 140 mA | 1 A | - | - | - | 45 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
B59975C0160A070PTC RESET FUSE 20V 550MA RADIAL |
3,179 | 1.54 |
|
Datasheet |
Radial, Disc | B59975 | Bulk | Active | Ceramic | 20V | 550 mA | 1.1 A | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59872C0120A070PTC RESET FUSE 265V 80MA RADIAL |
1,647 | 1.79 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 80 mA | 160 mA | 1 A | - | - | - | 35 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59874C0120A070PTC RESET FUSE 265V 60MA RADIAL |
1,063 | 1.79 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 60 mA | 125 mA | 1 A | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|

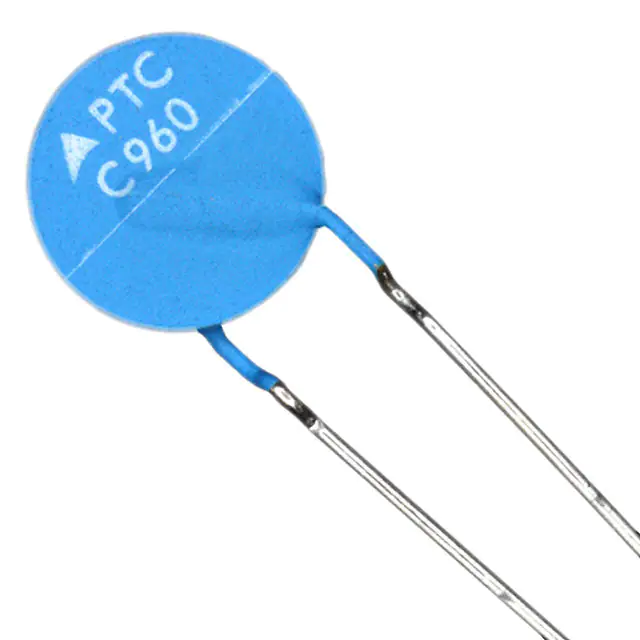

B59960C0120A070PTC RESET FUSE 80V 250MA RADIAL |
428 | 1.52 |
|
Datasheet |
Radial, Disc | B59960 | Bulk | Active | Ceramic | 80V | 250 mA | 500 mA | 4.3 A | - | - | - | 5.6 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
B59875C0120A070PTC RESET FUSE 265V 55MA RADIAL |
189 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 55 mA | 110 mA | 1 A | - | - | - | 65 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|

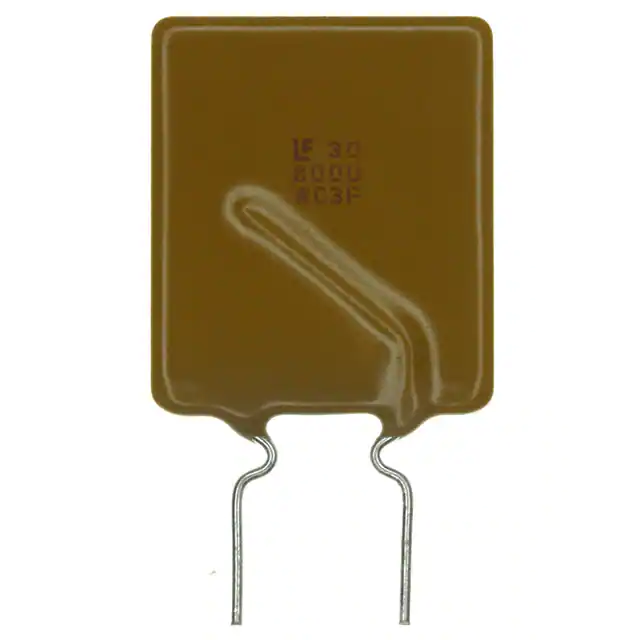

30R800UHPTC RESET FUSE 30V 8A RADIAL |
1,244 | 0.94 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.224" (31.10mm) | - | 0.402" (10.20mm) |
|
AHRL1000PTC RESET FUSE 10A 16V RAD |
250 | 1.56 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 10 A | 20 A | 100 A | 10 s | 4.2 mOhms | 6.8 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.567" L x 0.142" W (14.40mm x 3.60mm) | 0.882" (22.40mm) | - | 0.400" (10.15mm) |
|
|
B59860C0130A070PTC RESET FUSE 265V 140MA RADIAL |
975 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 140 mA | 230 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
TSV250-130F-B-0.5-2PTC RESET FUSE 60V 130MA 2SMD |
1,850 | 1.17 |
|
Datasheet |
2-SMD | PolySwitch®, TSV250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.240" L x 0.272" W (6.10mm x 6.90mm) | - | 0.126" (3.20mm) | - |
|
B59850C0120A070PTC RESET FUSE 265V 200MA RADIAL |
1,532 | 2.30 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 200 mA | 400 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
LVR100S-240-2PTC RESET FUSE 240V 1A RADIAL |
1,130 | 1.53 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.400" (10.15mm) |
|
1210L200SLYRPTC RESET FUSE 6V 2A 1210 |
13,112 | 2.19 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 3 s | 5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|

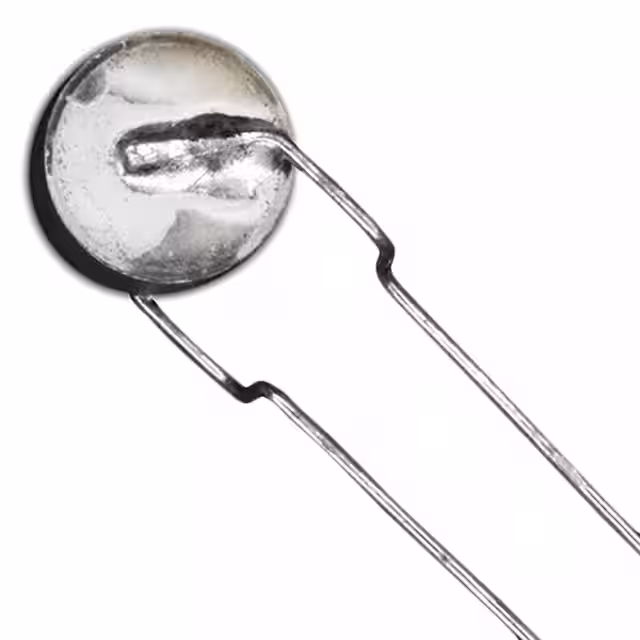

B59774B0115A070PTC RESET FUSE 550V RADIAL DISC |
990 | 2.82 |
|
Datasheet |
Radial, Disc | B59774 | Bulk | Active | Ceramic | 550V | - | 32 mA | 1 A | 2 s | - | - | 1.1 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|

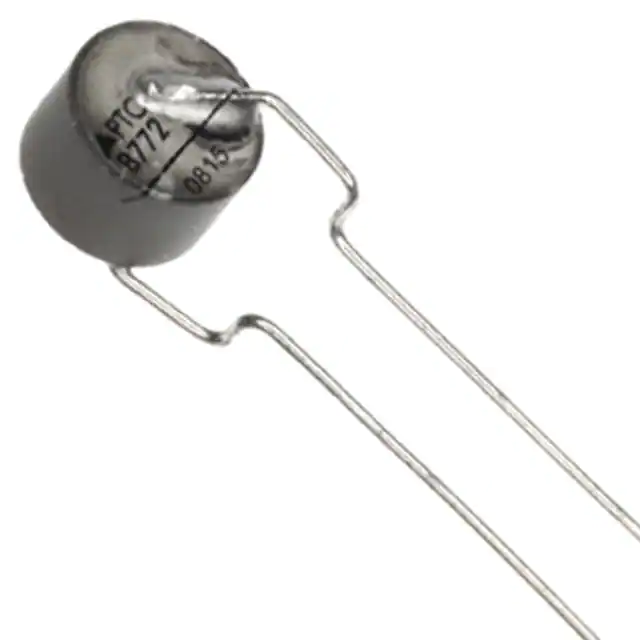

B59772B0120A070PTC RESET FUSE 420V RADIAL DISC |
893 | 2.82 |
|
Datasheet |
Radial, Disc | B59772 | Bulk | Active | Ceramic | 420V | - | 86 mA | 1.4 A | 3 s | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|

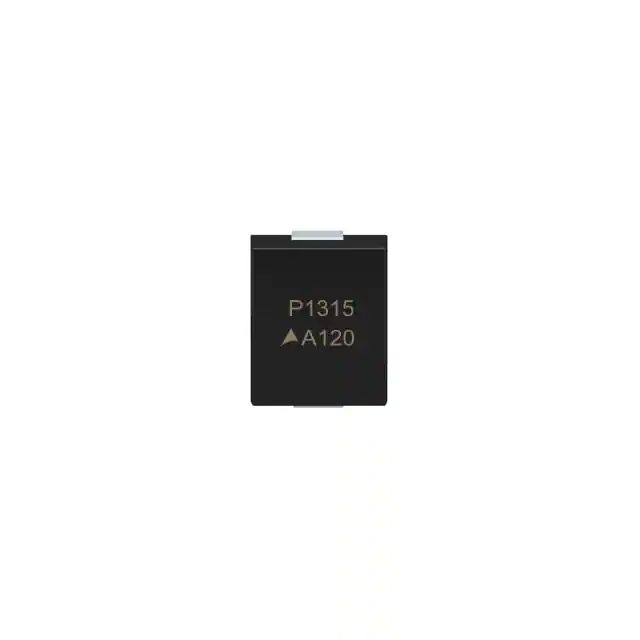

B59315P1080A062THERMISTOR PTC 25% 4032 |
767 | 2.29 |
|
Datasheet |
4032 (1080 Metric) | B59315 | Tape & Reel (TR) | Active | Ceramic | 80V | 80 mA | 165 mA | 1.6 A | - | 9.6 Ohms | 16 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.394" L x 0.315" W (10.00mm x 8.00mm) | - | 0.150" (3.80mm) | - |
|
B59955C0120A070PTC RESET FUSE 30V 850MA RADIAL |
1,606 | 1.64 |
|
Datasheet |
Radial, Disc | B59955 | Bulk | Active | Ceramic | 30V | 850 mA | 1.7 A | 5.5 A | - | - | - | 800 mOhms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
