PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

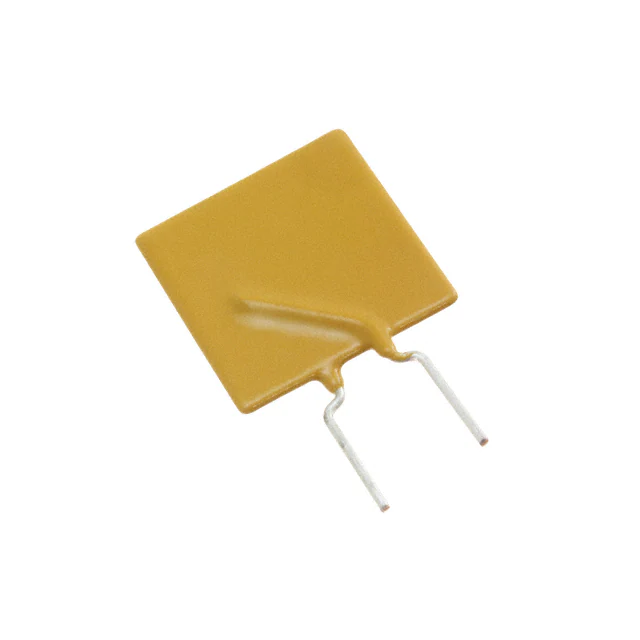

0ZRN1500FF1APTC RESET FUSE 16V 15A RADIAL |
737 | 2.09 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 15 A | 28 A | 100 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.402" (10.20mm) |
|
1210L500SLWRPTC RESET FUSE 6V 5A 1210 |
894 | 2.36 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 100 mOhms | 12 mOhms | - | - | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.56mm) | - | 0.032" (0.80mm) | - |
|

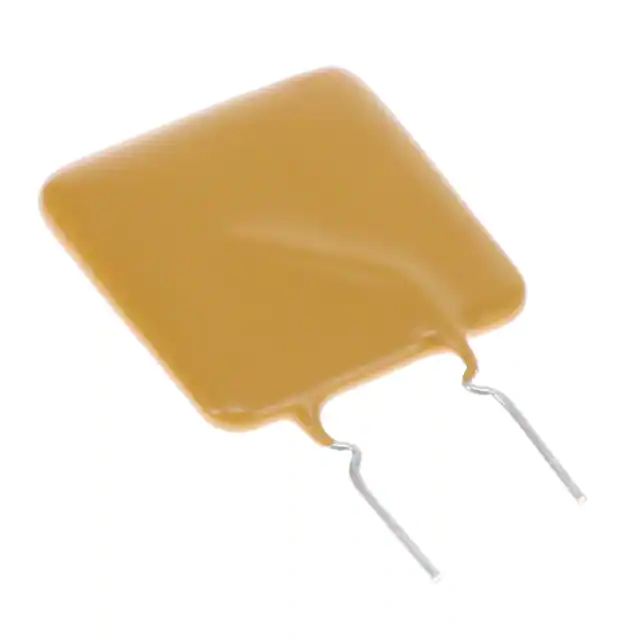

LVR200K-240PTC RESET FUSE |
114 | 2.40 |
|
Datasheet |
Radial, Disc | LVR | Bulk | Active | Polymeric | 240V (265V Int) | 2 A | 4 A | 20 A | 28 s | 89 mOhms | 221 mOhms | 131 mOhms | -20°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.161" W (24.90mm x 4.10mm) | 1.370" (34.80mm) | - | 0.400" (10.15mm) |
|
1206L350/12SLWRPTC RESET FUSE 3.5A 12V 1206 |
8,559 | 2.19 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 3.5 A | 7 A | 50 A | 5 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
|
1210L400SLWRPTC RESET FUSE 6V 4A 1210 |
8,059 | 2.05 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 8 A | 50 A | 5 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
1210L450SLWRPTC RESET FUSE 6V 4.5A 1210 |
3,495 | 2.19 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
|
1210L600SLWRPTC RESET FUSE 6.0A 6V 1210 |
403 | 2.19 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 6 A | 12 A | 50 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
1206L700SLPRLOW RHO SMD |
176 | 2.19 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch® 1206L | Tape & Reel (TR) | Active | Polymeric | 6V | 7 A | 14 A | 50 A | 2 s | 1 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|

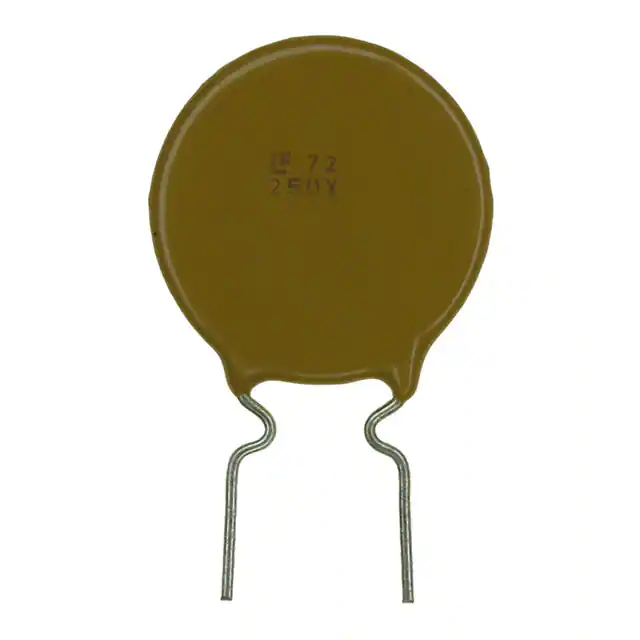

72R250XFPTC RESET FUSE 72V 2.5A RADIAL |
106 | 0.66 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.785" Dia x 0.122" T (19.93mm x 3.10mm) | 1.032" (26.20mm) | - | 0.402" (10.20mm) |
|
YQS5934PTOPTC RESET FUSE 480V RADIAL DISC |
1,577 | 2.44 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Active | Ceramic | 480V | - | - | - | - | - | - | 5 kOhms | 10°C ~ 55°C | - | - | - | Through Hole | 0.350" Dia x 0.300" T (8.89mm x 7.62mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|
30R900UHPTC RESET FUSE 30V 9A RADIAL |
505 | 1.08 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 9 A | 18 A | 40 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.950" L x 0.120" W (24.10mm x 3.00mm) | 1.244" (31.60mm) | - | 0.402" (10.20mm) |
|
72R250XMRPTC RESET FUSE 72V 2.5A RADIAL |
2,000 | 0.88 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.785" Dia x 0.122" T (19.93mm x 3.10mm) | 1.032" (26.20mm) | - | 0.402" (10.20mm) |
|
B59930C0120A070PTC RESET FUSE 80V 700MA RADIAL |
2,448 | 2.80 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 80V | 700 mA | 1.4 A | 10 A | - | - | - | 1.65 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.866" Dia x 0.138" T (22.00mm x 3.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
YQD100N1000PTC RESET FUSE 265V 15MA RADIAL |
1,216 | 2.44 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 15 mA | 30 mA | 200 mA | - | - | - | 1 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
72R375XHPTC RESET FUSE 72V 3.75A RADIAL |
2,274 | 0.75 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Bulk | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.035" Dia x 0.122" T (26.30mm x 3.10mm) | 1.224" (31.10mm) | - | 0.402" (10.20mm) |
|
CL20 100120PTC RESET FUSE 480V 400MA RADIAL |
470 | 5.42 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | - | 480V | 400 mA | 800 mA | - | - | - | - | 10 Ohms | - | - | - | - | Through Hole | 0.866" Dia x 0.236" T (22.00mm x 6.00mm) | - | - | 0.307" (7.80mm) |
|
PTCCL17H491HBEPTC RESET FUSE 265V 490MA RADIAL |
385 | 3.89 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 490 mA | 735 mA | 3.5 A | - | - | - | 4.4 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.650" Dia x 0.217" T (16.50mm x 5.50mm) | 0.846" (21.50mm) | - | 0.197" (5.00mm) |
|
60R375XHPTC RESET FUSE 60V 3.75A RADIAL |
154 | 0.76 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.035" Dia x 0.122" T (26.30mm x 3.10mm) | 1.224" (31.10mm) | - | 0.402" (10.20mm) |
|

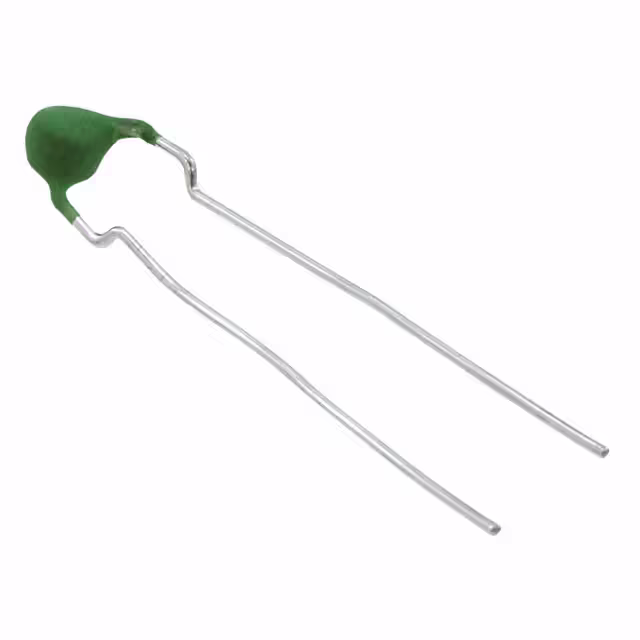

YQS8070PTC RESET FUSE 265V 22MA RADIAL |
1,425 | 3.84 |
|
Datasheet |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 22 mA | 40 mA | - | - | - | - | 600 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.157" Dia x 0.197" T (4.00mm x 5.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) |
|
YM120C20N122PTC RESET FUSE 265V 20MA RADIAL |
1,711 | 3.84 |
|
Datasheet |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 20 mA | 28 mA | 100 mA | - | - | - | 1.2 kOhms | 0°C ~ 55°C | - | - | - | Through Hole | 0.157" Dia x 0.177" T (4.00mm x 4.50mm) | 0.256" (6.50mm) | - | 0.200" (5.08mm) |
