PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

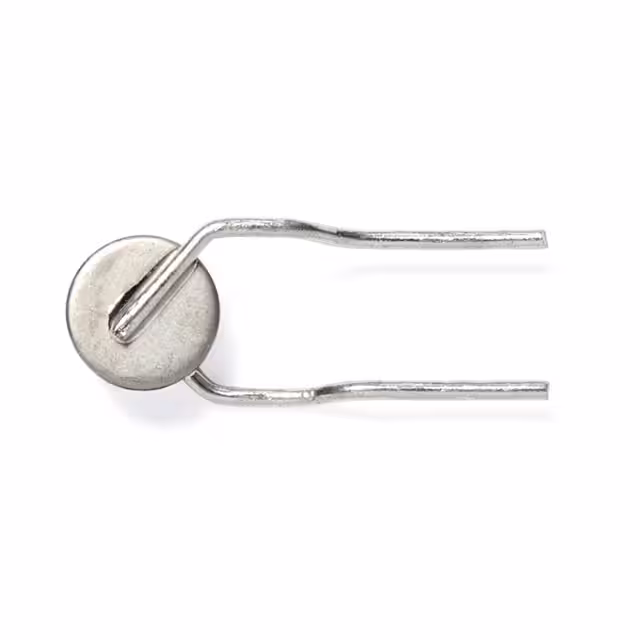

TRF250-110U-B-0.5-2PTC RESET FUSE 60V 110MA RADIAL |
1,340 | 0.86 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 110 mA | 220 mA | 3 A | 750 ms | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.209" Dia x 0.150" T (5.30mm x 3.80mm) | 0.370" (9.40mm) | - | 0.197" (5.00mm) |
|
MF-NSML175/6-2PTC RESET FUSE 6V 1.75A 1206 |
4,980 | 0.87 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 5 s | 6 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
|
MF-NSML450/6-2PTC RESET FUSE 6V 4.5A 1206 |
3,360 | 0.87 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 2 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.039" (1.00mm) | - |
|
MF-RM016/240-0PTC RESET FUSE 240V 160MA RADIAL |
2,955 | 0.74 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.543" (13.80mm) | - | 0.114" (2.90mm) |
|
MF-RM033/240-0PTC RESET FUSE 240V 330MA RADIAL |
2,871 | 0.74 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.787" (20.00mm) | - | 0.114" (2.90mm) |
|
PTSLR12106V400PTC RESET FUSE 6V 4A 1210 |
4,500 | 0.70 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 8 A | 50 A | 2 s | 2 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
ASMD150F-2PTC RESET FUSE 16V 1.27A 2SMD |
4,398 | 0.75 |
|
Datasheet |
2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.27 A | 2.95 A | 40 A | 25 s | 49 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
MF-SM013/250V-0PTC RESET FUSE 60V 130MA 2SMD |
1,762 | 1.13 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM/250V | Bulk | Active | Polymeric | 60V (250V Int) | 130 mA | - | 3 A | - | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.350" L x 0.283" W (8.90mm x 7.20mm) | - | 0.402" (10.20mm) | - |
|
MF-R250-0-14PTC RESETTABLE 2.5A 30V RADIAL L |
4,500 | 0.81 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
MF-R250-2-10PTC RESET FUSE 30V 2.5A RADIAL |
3,506 | 0.81 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
MF-R250-APPTC RESET FUSE 30V 2.5A RADIAL |
2,940 | 0.81 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
MF-SMHT136-2PTC RESET FUSE 16V 1.36A 2SMD |
2,573 | 0.81 |
|
Datasheet |
2-SMD | Multifuse®, MF-SMHT | Tape & Reel (TR) | Active | Polymeric | 16V | 1.36 A | 2.72 A | 100 A | 10 s | 85 mOhms | 330 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.314" L x 0.264" W (7.98mm x 6.71mm) | - | 0.118" (3.00mm) | - |
|
|
PICOASMDC035S-2PPTC-MINI-PSW |
3,995 | 0.82 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch® picoASMDC | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 200 ms | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.027" (0.68mm) | - |
|
B59995C0120A051PTC RESET FUSE 30V 120MA RADIAL |
2,500 | 0.79 |
|
Datasheet |
Radial, Disc | B59995 | Tape & Reel (TR) | Active | Ceramic | 30V | 120 mA | 240 mA | 700 mA | - | - | - | 13 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
NANOASMDC050F/13.2-2PTC RESET FUSE 13.2V 500MA 1206 |
2,440 | 0.82 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoASMD | Bulk | Active | Polymeric | 13.2V | 500 mA | 1.1 A | 70 A | 100 ms | 200 mOhms | 750 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.029" (0.74mm) | - |
|
TRF250-120UAPTC RESET FUSE 60V 120MA RADIAL |
1,695 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
MF-RM025/240-2PTC RESET FUSE 240V 250MA RADIAL |
11,535 | 0.78 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.394" L x 0.150" W (10.00mm x 3.80mm) | 0.787" (20.00mm) | - | 0.114" (2.90mm) |
|
|
PICOASMDC110S-2PPTC-MINI-PSW |
2,580 | 0.82 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch® picoASMDC | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 200 ms | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.047" (1.20mm) | - |
|
PTSLR12066V600PTC RESET FUSE 6A 6V 1206 |
3,583 | 0.74 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | - | 6V | 6 A | 12 A | 50 A | 5 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.138" L x 0.071" W (3.50mm x 1.80mm) | - | 0.039" (1.00mm) | - |
|
|
PTSLR12066V700PTC RESET FUSE 7A 6V 1206 |
3,439 | 0.74 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | - | 6V | 7 A | 14 A | 50 A | 5 s | 1 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.138" L x 0.071" W (3.50mm x 1.80mm) | - | 0.051" (1.30mm) | - |
