PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-RHT800-0PTC RESET FUSE 16V 8A RADIAL |
2,993 | 1.20 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 8 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.630" L x 0.118" W (16.00mm x 3.00mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
PTSLR12066V550PTC RESET FUSE 5.5A 6V 1206 |
2,868 | 0.74 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | - | 6V | 5.5 A | 11 A | 50 A | 5 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.138" L x 0.071" W (3.50mm x 1.80mm) | - | 0.039" (1.00mm) | - |
|

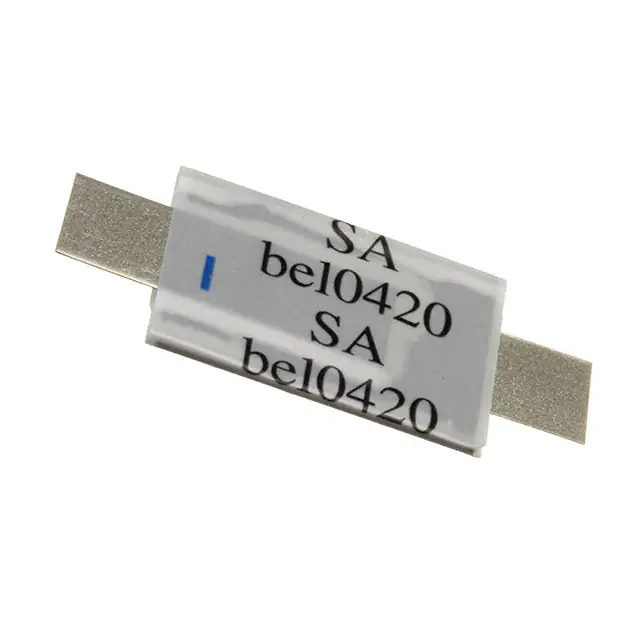

0ZSA0420FF1EPTC RESET FUSE 30V 4.2A STRAP |
2,710 | 0.78 |
|
Datasheet |
Strap | 0ZSA | Bulk | Active | Polymeric | 30V | 4.2 A | 7.6 A | 100 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.240" L x 0.522" W (31.50mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
MF-RX250/72-2-14PTC RESET FUSE 72V 2.5A RADIAL |
2,517 | 0.84 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Cut Tape (CT) | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.702" L x 0.122" W (17.84mm x 3.10mm) | 0.785" (19.94mm) | - | 0.201" (5.10mm) |
|
MF-RHT200-2PTC RESET FUSE 16V 2A RADIAL |
2,108 | 0.84 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.551" (14.00mm) | - | 0.114" (2.90mm) |
|
PTSLR12106V260PTC RESET FUSE 6V 2.6A 1210 |
5,455 | 0.72 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|

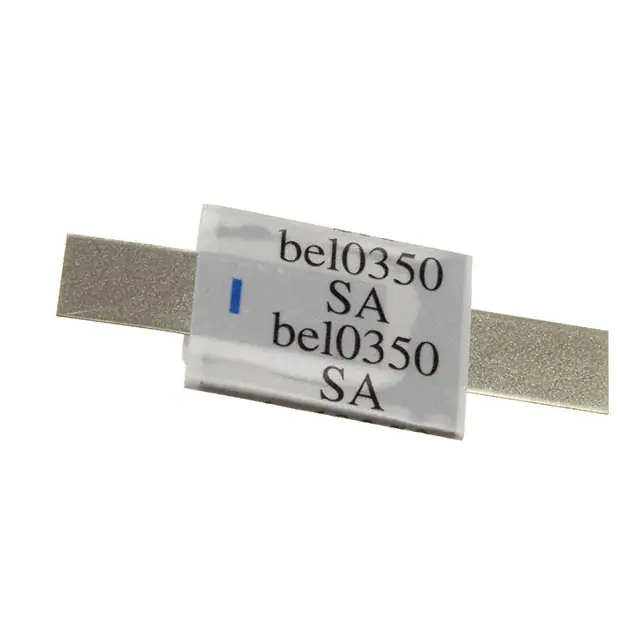

0ZSA0350FF1EPTC RESET FUSE 30V 3.5A STRAP |
2,522 | 0.78 |
|
Datasheet |
Strap | 0ZSA | Bulk | Active | Polymeric | 30V | 3.5 A | 6.3 A | 100 A | 3 s | 17 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
TRF250-120-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,387 | 0.85 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
MICROSMDCH050F-02PTC RESET FUSE 13.2V 500MA 1210 |
2,954 | 0.86 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Active | Polymeric | 13.2V | 500 mA | 1.5 A | 10 A | 50 ms | 190 mOhms | 900 mOhms | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.025" (0.64mm) | - |
|
VLR230FPTC RESET FUSE 12V 2.3A STRAP |
1,887 | 0.98 |
|
Datasheet |
Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 2.3 A | 5 A | 100 A | 5 s | 12 mOhms | 36 mOhms | - | - | - | - | - | User Defined | 0.866" L x 0.201" W (22.00mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|
MF-RG500-0PTC RESET FUSE 16V 5A RADIAL |
2,929 | 0.94 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
PTR030V0500-TRPTC RESET FUSE 30V 5A RADIAL |
2,926 | 0.78 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.394" (10.00mm) |
|
MF-SMHT160-2PTC RESET FUSE 16V 1.6A 2SMD |
2,857 | 0.81 |
|
Datasheet |
2-SMD | Multifuse®, MF-SMHT | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 100 A | 10 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.374" L x 0.234" W (9.50mm x 5.94mm) | - | 0.118" (3.00mm) | - |
|
|
PTSLR12066V075PTC RESET FUSE 6V 750MA 1206 |
6,006 | 0.78 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 50 A | 300 ms | 17 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|

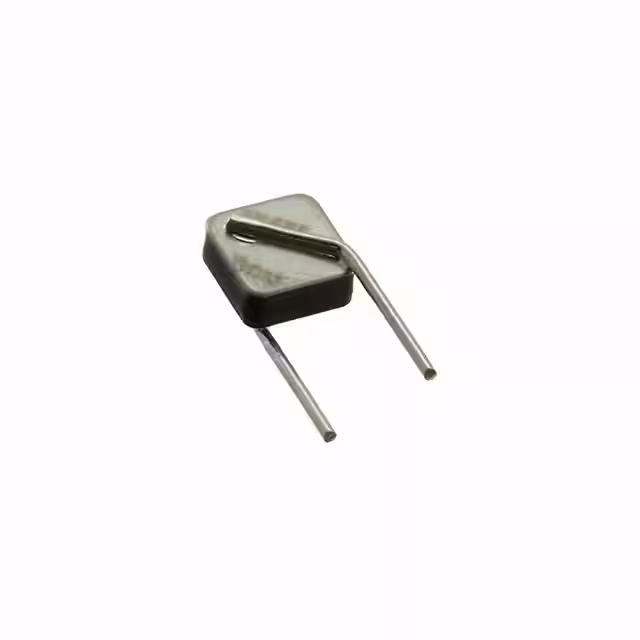

TRF250-145USPTC RESET FUSE 60V 145MA RADIAL |
1,603 | 0.90 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 4 s | 3.5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

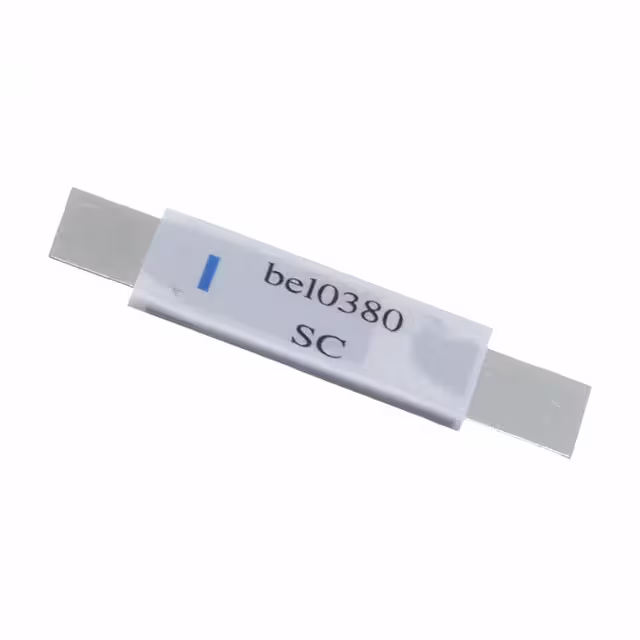

0ZSC0380FF1EPTC RESET FUSE 20V 3.8A STRAP |
1,310 | 0.81 |
|
Datasheet |
Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 3.8 A | 8.3 A | 100 A | 5 s | 13 mOhms | 37 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.283" W (25.00mm x 7.20mm) | - | 0.039" (1.00mm) | - |
|

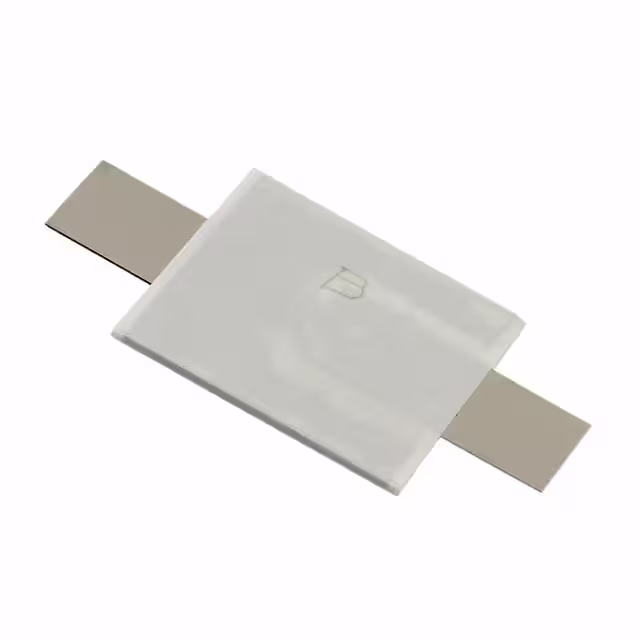

MF-LS340PTC RESET FUSE 24V 3.4A STRAP |
3,893 | 0.94 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Active | Polymeric | 24V | 3.4 A | 6.8 A | 100 A | 5 s | 16 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.604" W (25.00mm x 15.35mm) | - | 0.039" (1.00mm) | - |
|
|
PTSLR12066V450PTC RESET FUSE 6V 4.5A 1206 |
2,167 | 0.70 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
TRF250-120T-RC-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,500 | 0.94 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 260 mA | 3 A | 3 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
VTP170FPTC RESET FUSE 16V 1.7A STRAP |
9,758 | 1.03 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 5 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.648" L x 0.283" W (16.45mm x 7.20mm) | - | 0.032" (0.80mm) | - |
