PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFRA.090.2PTC RESET FUSE 60V 900MA RADIAL |
1,880 | 0.32 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
MF-USHT016KX-2PTC RESET FUSE 30V 160MA 1210 |
1,833 | 0.94 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USHT | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 800 mA | 20 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|

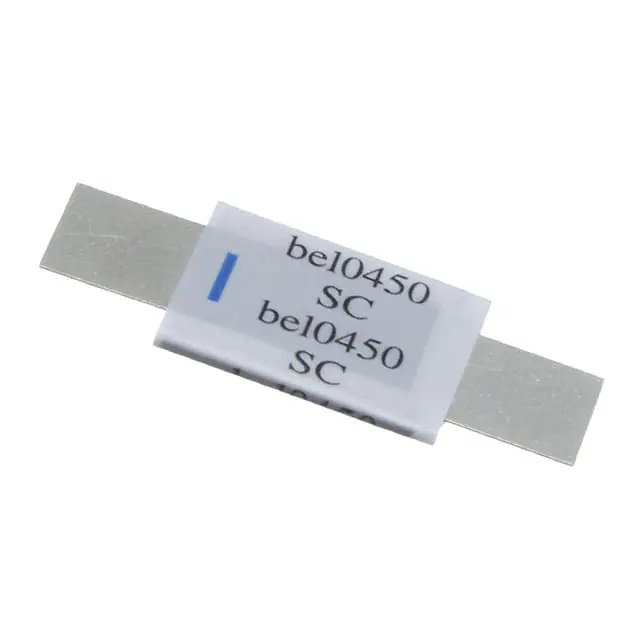

0ZSC0450FF1EPTC RESET FUSE 20V 4.5A STRAP |
2,406 | 0.94 |
|
Datasheet |
Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 4.5 A | 8.9 A | 100 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.402" W (25.00mm x 10.20mm) | - | 0.039" (1.00mm) | - |
|
PTR016V1000-TRPTC RESET FUSE 16V 10A RADIAL |
965 | 0.40 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.122" W (16.50mm x 3.10mm) | 0.992" (25.20mm) | - | 0.197" (5.00mm) |
|
AHRL700PTC RESET FUSE 7A 16V RAD |
138 | 1.14 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 7 A | 14 A | 100 A | 6.8 s | 8.5 mOhms | 14 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.465" L x 0.118" W (11.80mm x 3.00mm) | 0.685" (17.40mm) | - | 0.199" (5.05mm) |
|
RXEF300KPTC RESET FUSE 72V 3A RADIAL |
362 | 1.02 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.910" Dia x 0.118" T (23.11mm x 3.00mm) | 1.154" (29.30mm) | - | 0.400" (10.15mm) |
|
MF-LSMF300X-2PTC RESET FUSE 6V 3A 2920 |
348 | 0.97 |
|
Datasheet |
2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 5 A | 40 A | 20 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.033" (0.85mm) | - |
|
AGRF800-2PTC RESET FUSE 16V 8A RADIAL |
234 | 1.05 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 5.5 s | 4.9 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|
B59995C0160A070PTC RESET FUSE 20V 150MA RADIAL |
1,008 | 1.11 |
|
Datasheet |
Radial, Disc | B59995 | Bulk | Active | Ceramic | 20V | 150 mA | 300 mA | 700 mA | - | - | - | 13 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|

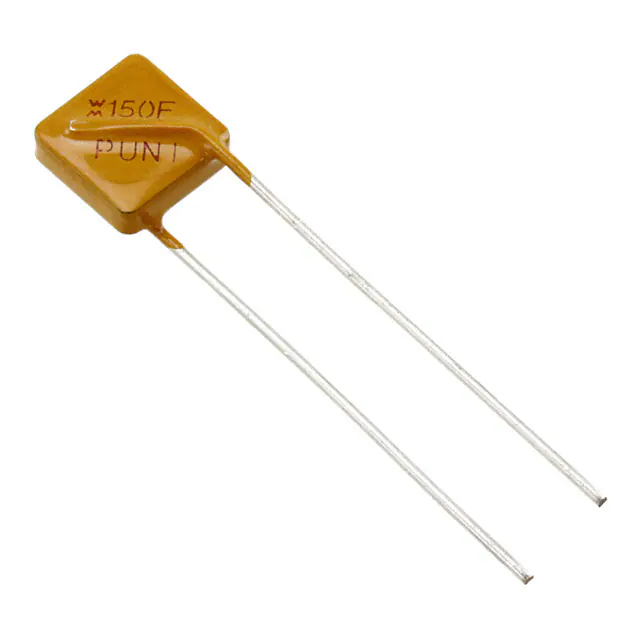

TRF600-150S-2PTC RESET FUSE 250V 150MA RADIAL |
635 | 1.18 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
RGEF1000-1PTC RESET FUSE 16V 10A RADIAL |
225 | 1.10 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.098" W (16.50mm x 2.50mm) | 0.992" (25.20mm) | - | 0.199" (5.05mm) |
|
|
MICROASMDCH075F-2PPTC-MINI-PSW |
3,655 | 1.10 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 750 mA | 2.25 A | 20 A | 100 ms | 100 mOhms | 680 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
|
MF-R1100-2PTC RESET FUSE 16V 11A RADIAL |
1,680 | 1.07 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 16V | 11 A | 22 A | 100 A | 20 s | 3 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
RGEF1200-1PTC RESET FUSE 16V 12A RADIAL |
228 | 1.11 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.670" L x 0.115" W (16.95mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|
PTR060V0300-BKPTC RESET FUSE 60V 3A RADIAL |
240 | 0.87 |
|
Datasheet |
Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia x 0.118" T (24.90mm x 3.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) |
|
MF-RHT700-0PTC RESET FUSE 16V 7A RADIAL |
2,557 | 1.00 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 16V | 7 A | 13 A | 100 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.201" (5.10mm) |
.jpg)
|
MF-PSML450/8-2PTC RESET FUSE 8V 4.5A 0805 |
2,498 | 1.55 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 8V | 4.5 A | 9 A | 50 A | 12.5 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
RUEF800K-2PTC RESET FUSE 30V 8A RADIAL |
224 | 0.87 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 8 A | 16 A | 100 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.189" (30.20mm) | - | 0.400" (10.15mm) |
|
|
72R160XMRPTC RESET FUSE 72V 1.6A RADIAL |
6,947 | 0.71 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.600" Dia x 0.122" T (15.24mm x 3.10mm) | 0.850" (21.60mm) | - | 0.201" (5.10mm) |
|
|
NANOASMDCH020F-2PPTC-MINI-PSW |
3,000 | 0.72 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoASMDC | Tape & Reel (TR) | Active | Polymeric | 24V | 200 mA | 420 mA | 100 A | 100 ms | 650 mOhms | 3.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | - | - | - | - |
