PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSMD020-RRESETTABLE FUSE - SMD, 1812 SIZE |
1,500 | 0.12 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 30V | 200 mA | 400 mA | 100 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|

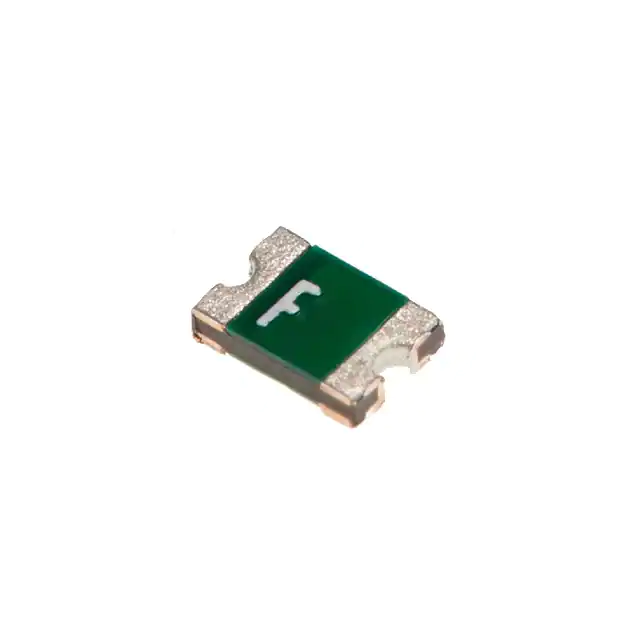

FSMD020-0805-RRESETTABLE FUSE - SMD, 0805 SIZE |
3,700 | 0.14 |
|
Datasheet |
0805 (2012 Metric), Concave | FSMD0805 | Tape & Reel (TR) | Active | - | 9V | 200 mA | 500 mA | 100 A | 20 ms | 400 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
FSMD075-1206RRESETTABLE FUSE - SMD, 1206 SIZE |
2,950 | 0.15 |
|
Datasheet |
1206 (3216 Metric), Concave | FSMD1206 | Tape & Reel (TR) | Active | - | 8V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
|
FSMD010-RRESETTABLE FUSE - SMD, 1812 SIZE |
1,950 | 0.15 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 60V | 100 mA | 300 mA | 100 A | 20 ms | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
|
FSMD160-RRESETTABLE FUSE - SMD, 1812 SIZE |
1,400 | 0.16 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 8V | 1.6 A | 3.2 A | 100 A | 500 ms | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
MPTS2920L050RPTC RESET FUSE 60V 0.5A 2920 |
16,000 | 0.17 |
|
Datasheet |
2920 (7351 Metric), Concave | MPTS | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 100 A | 4 s | 300 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
|
FSMD050-24-1206RRESETTABLE FUSE - SMD, 1206 SIZE |
5,600 | 0.18 |
|
Datasheet |
1206 (3216 Metric), Concave | FSMD1206 | Tape & Reel (TR) | Active | - | 24V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 750 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
|
FSMD010-24-0805-RRESETTABLE FUSE - SMD, 0805 SIZE |
3,840 | 0.18 |
|
Datasheet |
0805 (2012 Metric), Concave | FSMD0805 | Tape & Reel (TR) | Active | - | 24V | 100 mA | 300 mA | 100 A | 1.5 s | 700 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
FSMD075-0805RRESETTABLE FUSE - SMD, 0805 SIZE |
2,950 | 0.18 |
|
Datasheet |
0805 (2012 Metric), Concave | FSMD0805 | Tape & Reel (TR) | Active | - | 6V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
FSMD035-30-1206RRESETTABLE FUSE - SMD, 1206 SIZE |
2,950 | 0.18 |
|
Datasheet |
1206 (3216 Metric), Concave | FSMD1206 | Tape & Reel (TR) | Active | - | 30V | 350 mA | 750 mA | 100 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.051" (1.30mm) | - |
|
|
FSMD025-24-1206-RRESETTABLE FUSE - SMD, 1206 SIZE |
2,850 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | FSMD1206 | Tape & Reel (TR) | Active | - | 24V | 250 mA | 500 mA | 100 A | 80 ms | 550 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
|
FSMD075-16-1206RRESETTABLE FUSE - SMD, 1206 SIZE |
2,800 | 0.18 |
|
Datasheet |
1206 (3216 Metric), Concave | FSMD1206 | Tape & Reel (TR) | Active | - | 16V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
|
FSMD050-9-0805RRESETTABLE FUSE - SMD, 0805 SIZE |
2,550 | 0.18 |
|
Datasheet |
0805 (2012 Metric), Concave | FSMD0805 | Tape & Reel (TR) | Active | - | 9V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
MPTS2920L150PTC RESET FUSE 33V 1.5A 2920 |
2,000 | 0.18 |
|
Datasheet |
2920 (7351 Metric) | MPTS | Tape & Reel (TR) | Active | Polymeric | 33V | 1.5 A | 3 A | 100 A | 2 s | 50 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
FSMD025-1206-RRESETTABLE FUSE - SMD, 1206 SIZE |
1,750 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | FSMD1206 | Tape & Reel (TR) | Active | - | 16V | 250 mA | 500 mA | 100 A | 80 ms | 550 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
|
FSMD110-33RRESETTABLE FUSE - SMD, 1812 SIZE |
1,450 | 0.18 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 33V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
|

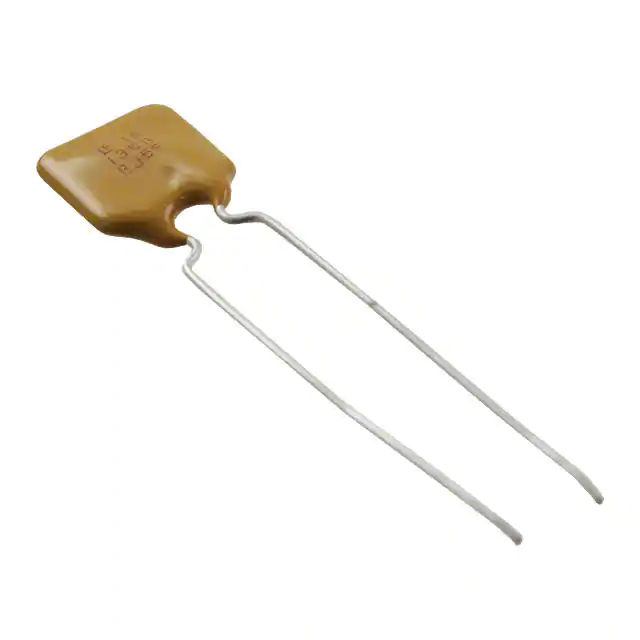

16R135BPRPTC RESET FUSE 16V 1.35A RADIAL |
2,000 | 0.18 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Tape & Box (TB) | Obsolete | Polymeric | 16V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
FRU090-30FRESETTABLE FUSE - PPTC RADIAL LE |
1,990 | 0.22 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
FSMD100-2920-RRESETTABLE FUSE - SMD, 2920 SIZE |
2,900 | 0.23 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 33V | 1.1 A | 2.2 A | 100 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
FSMD030-2920-RRESETTABLE FUSE - SMD, 2920 SIZE |
1,950 | 0.24 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 60V | 300 mA | 600 mA | 100 A | 3 s | 1 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
