PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR030V0700-TRPTC RESET FUSE 30V 7A RADIAL |
7,243 | 0.50 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 7 A | 14 A | 100 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.051" (26.70mm) | - | 0.394" (10.00mm) |
|
RUSBF075-APPTC RESET FUSE 6V 750MA RADIAL |
2,000 | 0.51 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Cut Tape (CT) | Active | Polymeric | 6V | 750 mA | 1.3 A | 40 A | 400 ms | 110 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|
1206L025/24YRPTC RESET FUSE 24V 250MA 1206 |
3,255 | 0.57 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 24V | 250 mA | 550 mA | 100 A | 80 ms | 550 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
RXEF090S-2PTC RESET FUSE 72V 900MA RADIAL |
3,000 | 0.57 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.622" (15.80mm) | - | 0.199" (5.05mm) |
|
|
RUSBF155-APPTC RESET FUSE 6V 1.55A RADIAL |
1,755 | 0.62 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Cut Tape (CT) | Active | Polymeric | 6V | 1.55 A | 2.65 A | 40 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
|
RUSBF135-APPTC RESET FUSE 16V 1.35A RADIAL |
1,531 | 0.62 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Cut Tape (CT) | Active | Polymeric | 16V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 112 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|

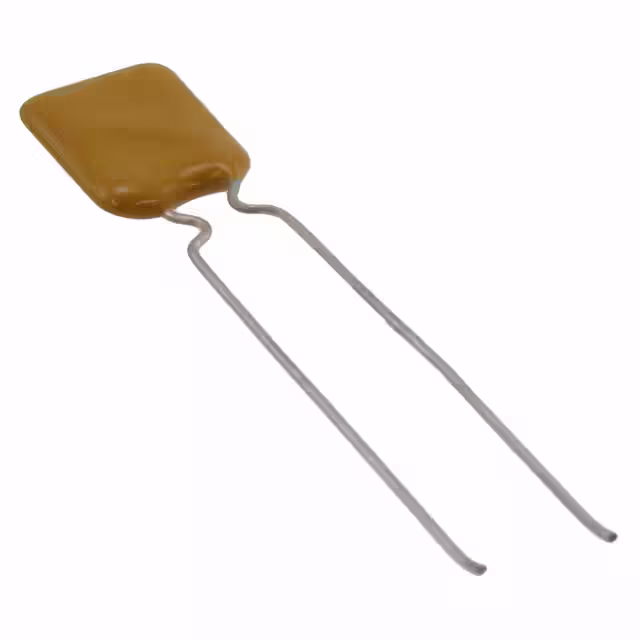

16R160BPRPTC RESET FUSE 16V 1.6A RADIAL |
2,000 | 0.19 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
R0603LR-035-RPTC RESET FUSE 6V 350MA 0603 |
12,000 | 0.42 |
|
Datasheet |
0603 (1608 Metric), Concave | R0603LR | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.030" (0.75mm) | - |
|

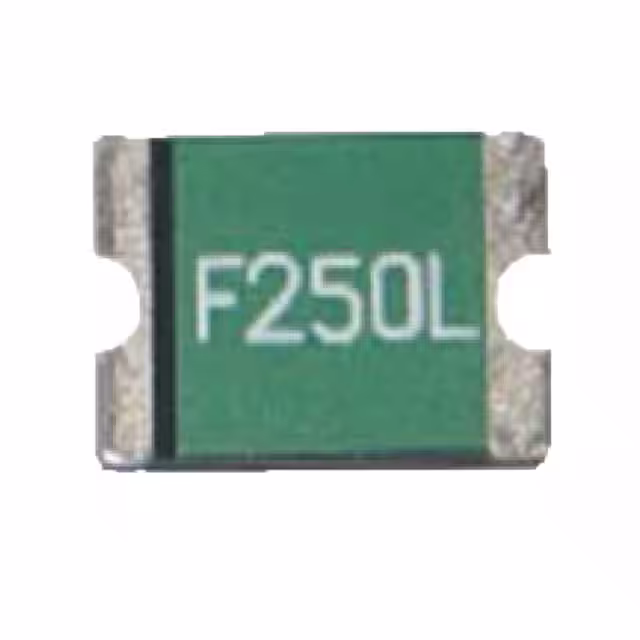

R2920-100-RPTC RESET FUSE 33V 1.1A 2920 |
4,000 | 0.42 |
|
Datasheet |
2920 (7351 Metric), Concave | R2920 | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 100 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
R2920-050-RPTC RESET FUSE 60V 500MA 2920 |
2,000 | 0.42 |
|
Datasheet |
2920 (7351 Metric), Concave | R2920 | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 100 A | 4 s | 300 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
MF-NSML260-2PTC RESET FUSE 6V 2.6A 1206 |
9,767 | 0.08 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 50 A | 4 s | 3 mOhms | 26 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.024" (0.60mm) | - |
|
MF-USML270-2PTC RESET FUSE 6V 2.7A 1210 |
9,109 | 0.08 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.7 A | 5.4 A | 50 A | 4 s | 4 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
|
RUSBF155-2PTC RESET FUSE 6V 1.55A RADIAL |
2,813 | 0.62 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.55 A | 2.65 A | 40 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" L x 0.122" W (6.90mm x 3.10mm) | 0.461" (11.70mm) | - | 0.200" (5.08mm) |
|
RGEF400K-2PTC RESET FUSE 16V 4A RADIAL |
1,077 | 0.68 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.331" L x 0.098" W (8.40mm x 2.50mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
MF-PSML110-2PTC RESET FUSE 6V 0805 |
6,243 | 0.72 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | - | - | - | - | 17.5 mOhms | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.024" (0.60mm) | - |
|

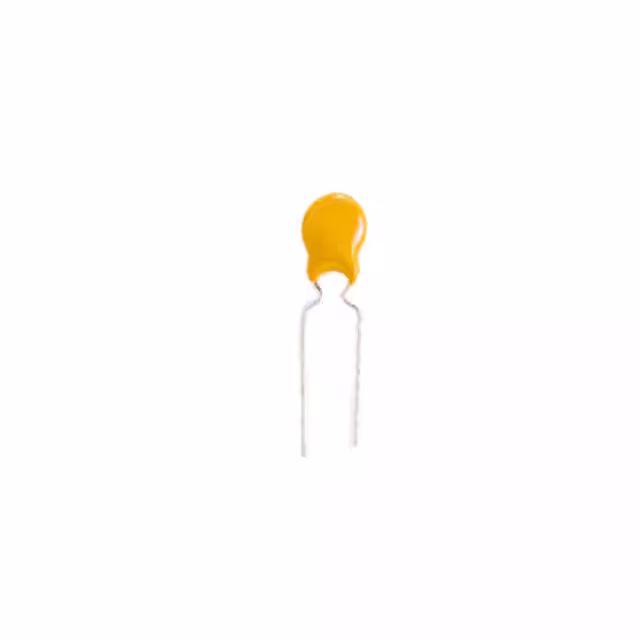

RS60RB-025PTC RESET FUSE 60V 250MA RADIAL |
4,884 | 0.53 |
|
Datasheet |
Radial, Disc | RS60RB | Bulk | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

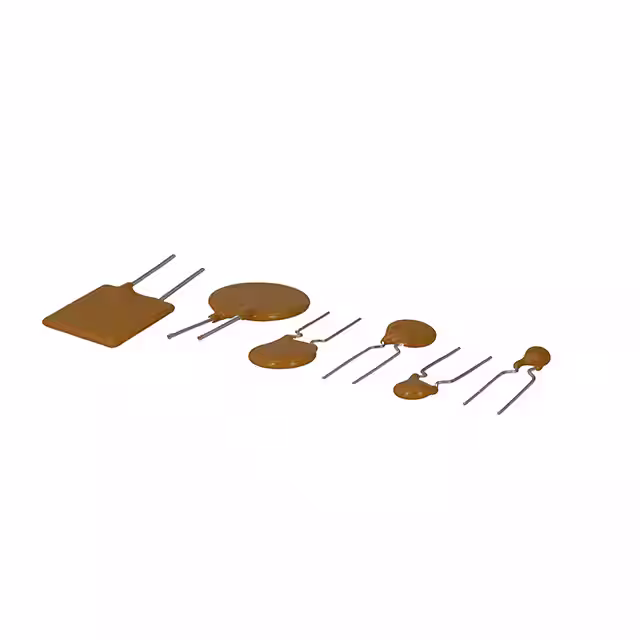

RS60RB-010PTC RESET FUSE 60V 100MA RADIAL |
4,000 | 0.53 |
|
Datasheet |
Radial, Disc | RS60RB | Bulk | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

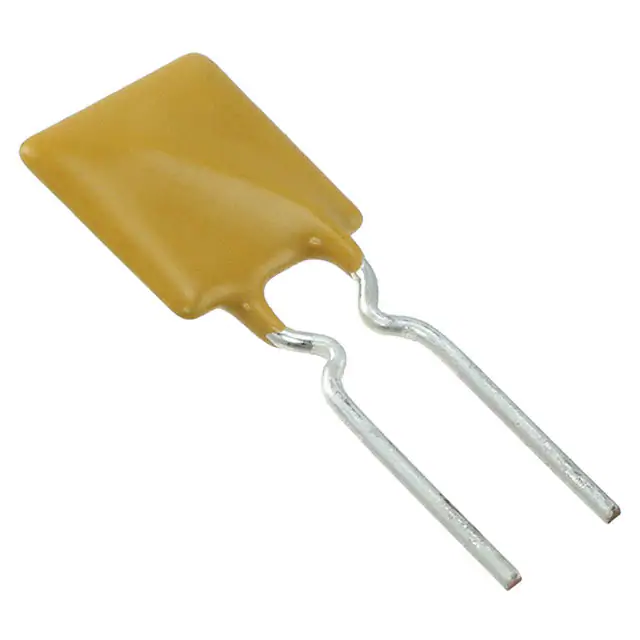

RGEF500K-APPTC RESET FUSE 16V 5A RADIAL |
3,925 | 0.75 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Cut Tape (CT) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|

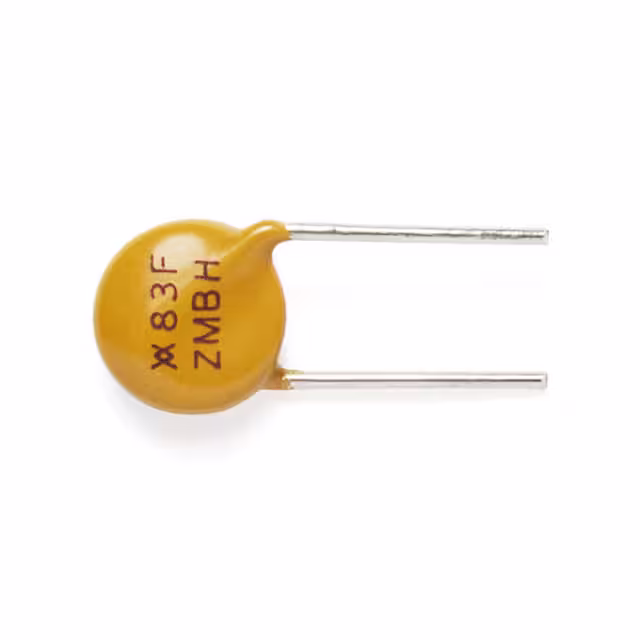

TRF250-183S-2PTC RESET FUSE 100V 183MA RADIAL |
2,842 | 0.81 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 100V (250V Int) | 183 mA | 685 mA | 10 A | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.295" Dia x 0.150" T (7.50mm x 3.80mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) |
|
|
MF-PSML350-2PTC RESET FUSE 6V 3.5A 0805 |
9,889 | 0.82 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.5 A | 7 A | 50 A | 5 s | 3 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.032" (0.80mm) | - |
