PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSMD125-2920-RRESETTABLE FUSE - SMD, 2920 SIZE |
1,950 | 0.24 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 33V | 1.25 A | 2.5 A | 100 A | 2 s | 50 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
FSMD300-2920-RRESETTABLE FUSE - SMD, 2920 SIZE |
1,850 | 0.24 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 6V | 3 A | 5.2 A | 100 A | 25 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
FSMD150-1206RRESETTABLE FUSE - SMD, 1206 SIZE |
1,950 | 0.23 |
|
Datasheet |
1206 (3216 Metric), Concave | FSMD1206 | Tape & Reel (TR) | Active | - | 8V | 1.5 A | 3 A | 100 A | 1 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
FSMD150-12RRESETTABLE FUSE - SMD, 1812 SIZE |
1,850 | 0.25 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 12V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|
|
FSMD200RRESETTABLE FUSE - SMD, 1812 SIZE |
1,400 | 0.25 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 8V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
|
FSMD150-24RRESETTABLE FUSE - SMD, 1812 SIZE |
1,300 | 0.25 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 24V | 1.5 A | 3 A | 100 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|

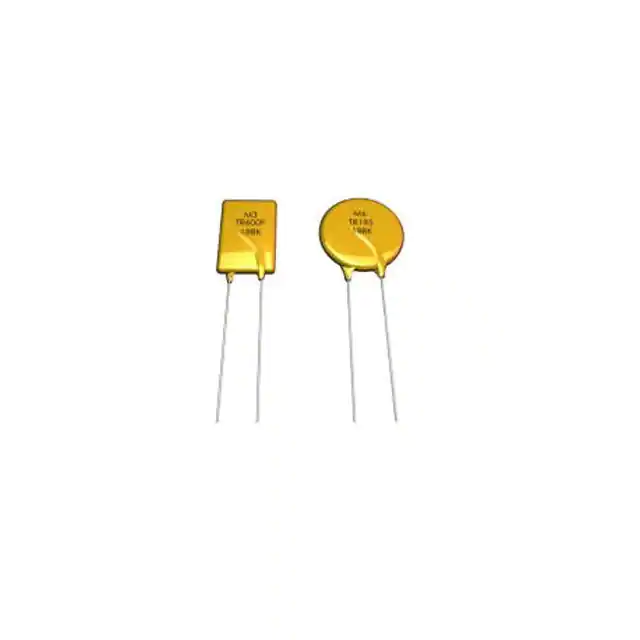

MPTR90V185PTC RESET FUSE 90V 1.85A RADIAL |
45,500 | 0.25 |
|
Datasheet |
Radial, Disc | MPTR | Bulk | Active | Polymeric | 90V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" Dia x 0.122" T (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
FSMD100-0805RRESETTABLE FUSE - SMD, 0805 SIZE |
2,850 | 0.27 |
|
Datasheet |
0805 (2012 Metric), Concave | FSMD0805 | Tape & Reel (TR) | Active | - | 6V | 1 A | 1.95 A | 100 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.071" (1.80mm) | - |
|
R0603-010-RPTC RESET FUSE 15V 100MA 0603 |
4,000 | 0.20 |
|
Datasheet |
0603 (1608 Metric), Concave | R0603 | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 250 mA | 40 A | 100 ms | 900 mOhms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.030" (0.75mm) | - |
|
R1206-005-RPTC RESET FUSE 60V 50MA 1206 |
3,000 | 0.20 |
|
Datasheet |
1206 (3216 Metric), Concave | R1206 | Tape & Reel (TR) | Active | Polymeric | 60V | 50 mA | 150 mA | 100 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
FSMD075-60-2920-RRESETTABLE FUSE - SMD, 2920 SIZE |
1,800 | 0.28 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 60V | 750 mA | 1.5 A | 100 A | 300 ms | 180 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
|
FSMD260-2920-RRESETTABLE FUSE - SMD, 2920 SIZE |
1,950 | 0.24 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 6V | 2.6 A | 5.2 A | 100 A | 20 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
TRF250-120USPTC RESET FUSE 60V 120MA RADIAL |
1,500 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
PTR030V0090-TR1PTC RESET FUSE 30V 900MA RADIAL |
6,413 | 0.29 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.197" (5.00mm) |
|
MF-RX135/72-0-14FUSE PTC RESETTABLE |
6,537 | 0.71 |
|
Datasheet |
Radial, Disc | MF-RX/72 | Bulk | Active | - | 72V | 1.35 A | 2.7 A | 40 A | 9.6 s | - | - | - | - | - | - | - | Through Hole | 0.483" L x 0.122" W (12.26mm x 3.10mm) | 0.718" (18.26mm) | - | 0.201" (5.10mm) |
|
TRF250-145-RA-B0.5-2PTC RESET FUSE 60V 145MA RADIAL |
2,824 | 0.83 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Obsolete | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.200" (5.08mm) |
|

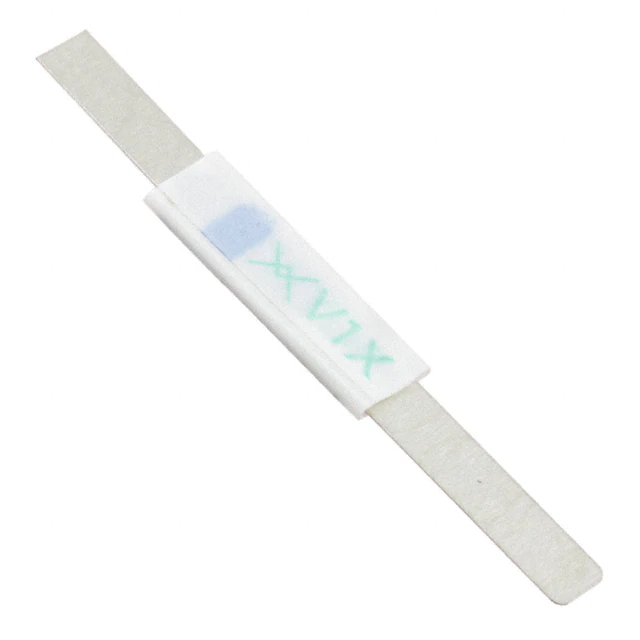

VTP175LFPTC RESET FUSE 16V 1.75A STRAP |
3,000 | 0.91 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.75 A | 3.6 A | 100 A | 5 s | 29 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.063" L x 0.146" W (27.00mm x 3.70mm) | - | 0.032" (0.80mm) | - |
|
|
FSMD300-24-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
3,950 | 0.34 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 24V | 3 A | 5.2 A | 100 A | 20 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
MF-R010-0-99PTC RESET FUSE 60V 100MA RADIAL |
3,445 | 0.32 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
FSMD300-15-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
1,750 | 0.34 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 15V | 3 A | 5.2 A | 100 A | 20 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
