PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS30-800PTC RESET FUSE 30V 8A RADIAL |
446 | 0.92 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 8 A | 16 A | 100 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.150" (29.20mm) | - | 0.402" (10.20mm) |
|
0603L175SLYRTPTC 6V POLYFUSE SMT 0603 SL 1.75 |
4,950 | 2.19 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 6 A | 600 ms | 5 mOhms | 60 MOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.040" (1.02mm) | - |
|
FSMD260-16RRESETTABLE FUSE - SMD, 1812 SIZE |
10,250 | 0.35 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 16V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
FSMD200-16RRESETTABLE FUSE - SMD, 1812 SIZE |
3,000 | 0.23 |
|
Datasheet |
1812 (4532 Metric), Concave | FSMD1812 | Tape & Reel (TR) | Active | - | 16V | 2 A | 3.5 A | 100 A | 5 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|

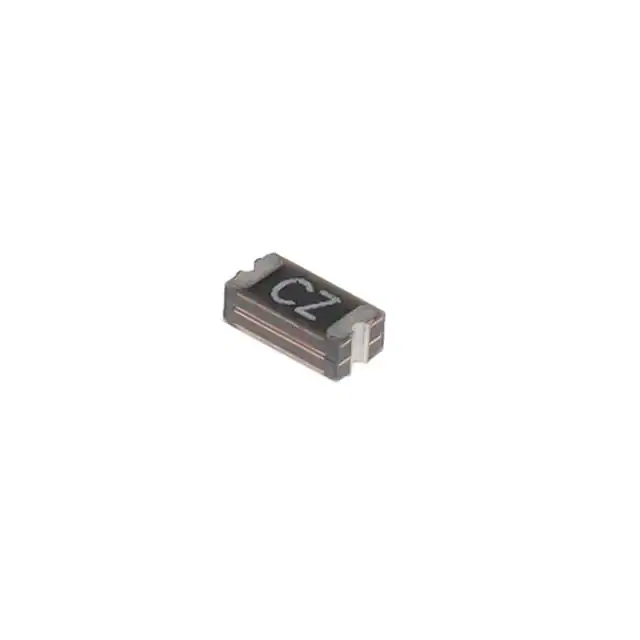

1206L450/12SLWRPTC 12V POLYFUSE SMT 1206 SL 4.5 |
3,834 | 2.19 |
|
Datasheet |
1206 (3216 Metric), Concave | Lo Rho | Tape & Reel (TR) | Active | Polymeric | 12V | 4.5 A | 9 A | 50 A | 2 s | 3 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.063" (1.60mm) | - |
|

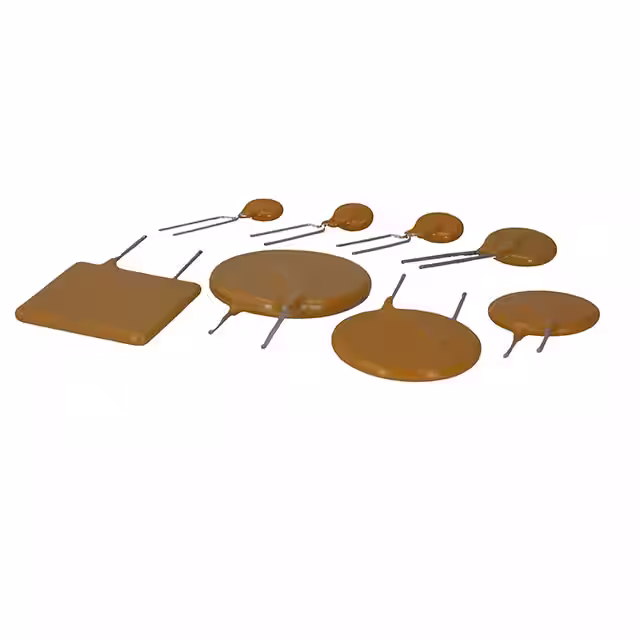

RS120-185PTC RESET FUSE 120V 1.85A RADIAL |
142 | 1.73 |
|
Datasheet |
Radial, Disc | RS120 | Bulk | Active | Polymeric | 120V (135V Int) | 1.85 A | 3.7 A | 12 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.783" Dia x 0.161" T (19.90mm x 4.10mm) | 0.980" (24.90mm) | - | 0.201" (5.10mm) |
|
1210L380SLYRPTC RESET FUSE 6V 3.8A 1210 |
8,000 | 2.05 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3.8 A | 8 A | 50 A | 5 s | 2 mOhms | 16 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
0603L200SLYRPTC RESET FUSE 6V 2A 0603 |
4,000 | 0.68 |
|
Datasheet |
0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 1 s | 5 mOhms | 50 mOhms | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|

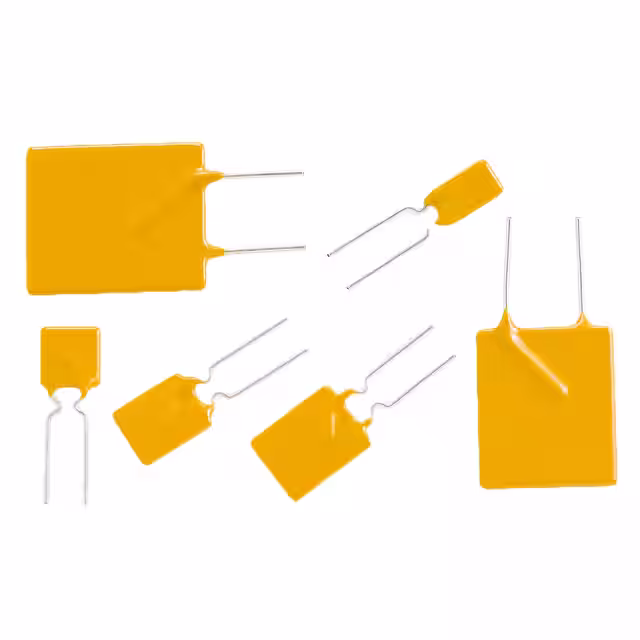

RS30-900PTC RESET FUSE 30V 9A RADIAL |
3,895 | 1.10 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 9 A | 18 A | 100 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.169" (29.70mm) | - | 0.402" (10.20mm) |
.jpg)
|

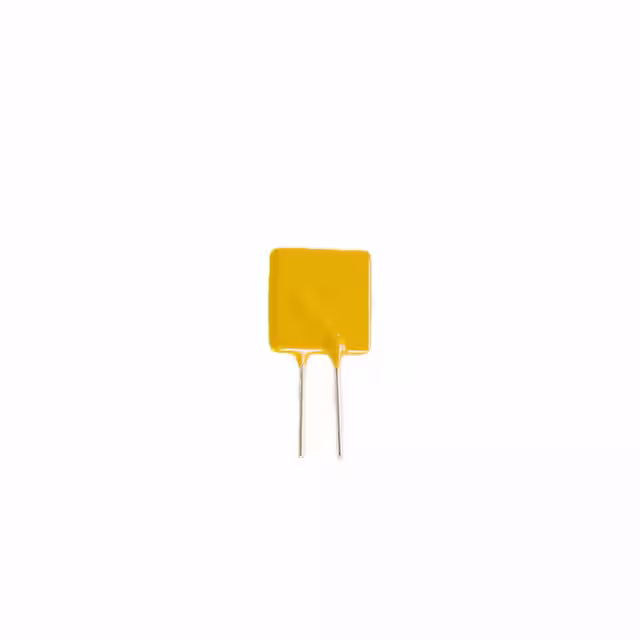

RS120-200PTC RESET FUSE 120V 2A RADIAL |
4,072 | 2.04 |
|
Datasheet |
Radial, Disc | RS120 | Bulk | Active | Polymeric | 120V (135V Int) | 2 A | 4.2 A | 20 A | 36 s | 80 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.161" W (23.50mm x 4.10mm) | 1.098" (27.90mm) | - | 0.201" (5.10mm) |
|
0805L075WR-APTC RESET FUSE 6V 750MA 0805 |
3,000 | 2.70 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
0402L005KRPTC 9V POLYFUSE SMT 0402 .05A |
26,201 | 2.80 |
|
Datasheet |
0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 9V | 50 mA | 200 mA | 40 A | 1.5 s | 1.5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
.jpg)
|
RS120-300PTC RESET FUSE 120V 3A RADIAL |
2,665 | 2.05 |
|
Datasheet |
Radial, Disc | RS120 | Bulk | Active | Polymeric | 120V (135V Int) | 3 A | 6 A | 17 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.886" Dia x 0.161" T (22.50mm x 4.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
|
0805L035YR-APTC RESET FUSE 6V 350MA 0805 |
1,730 | 2.67 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
|
RS120-375PTC RESET FUSE 120V 3.75A RADIAL |
152 | 2.20 |
|
Datasheet |
Radial, Disc | RS120 | Bulk | Active | Polymeric | 120V (135V Int) | 3.75 A | 7.5 A | 20 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.004" Dia x 0.161" T (25.50mm x 4.10mm) | 1.339" (34.00mm) | - | 0.402" (10.20mm) |
|
2920L700SLPRPTC RESET FUSE 6V 7A 2920 |
6,150 | 3.05 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 7 A | 14 A | 50 A | 200 ms | 1 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.026" (0.65mm) | - |
|
PTCTT95R100GTEPTC RESET FUSE 240V 140MA 4SMD |
895 | 4.69 |
|
Datasheet |
4-SMD | - | Tape & Reel (TR) | Active | Ceramic | 240V | 140 mA | 300 mA | 4 A | 4 s | - | - | 10 Ohms | -40°C ~ 85°C | - | - | - | Surface Mount | 0.354" L x 0.283" W (9.00mm x 7.20mm) | - | 0.272" (6.90mm) | - |
|

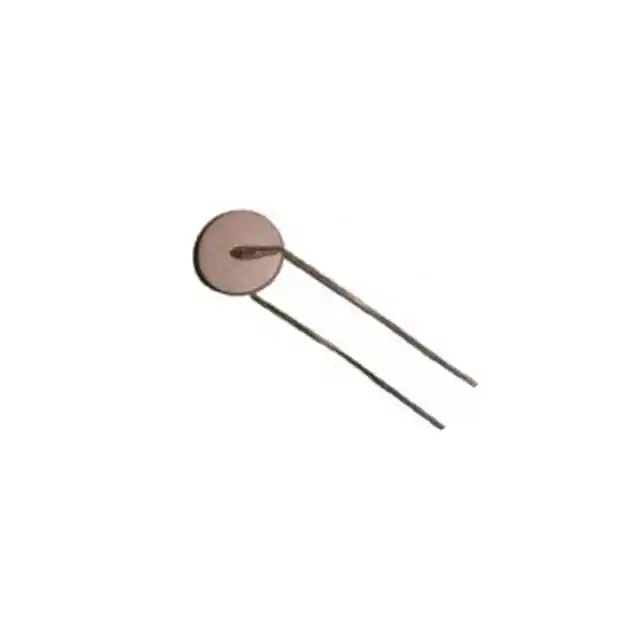

YQS5876PTFPTC RESET FUSE 240V 100MA RADIAL |
912 | 1.89 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Active | Ceramic | 240V | 100 mA | 210 mA | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.650" Dia x 0.272" T (16.50mm x 6.90mm) | 0.650" (16.50mm) | - | 0.331" (8.40mm) |
|
MPTS1812L11016RPTC RESET FUSE 16V 1.1A 1812 |
2,000 | 0.08 |
|
Datasheet |
1812 (4532 Metric), Concave | MPTS | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
|
|
MPTS1812L035PTC RESET FUSE 16V 0.35A 1812 |
14,000 | 0.08 |
|
Datasheet |
1812 (4532 Metric) | MPTS | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 700 mA | 100 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
