Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1576NLPULSE XFMR 230.4UH |
4,775 | 2.00 |
|
Datasheet |
- | Tray | Active | - | 230.4µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
TGAD-290NALFISO MOD DC 1C:3C 14VUS 6P SMD |
4,402 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:3CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG23-0356NSRLTRISO MOD T3 1:2.42C X-TEMP 6P SMD |
2,687 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T3/E3 (Single) | 35µH | - | 1:2.42CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
PA1825NLPULSE XFMR 24.5UH |
3,231 | 2.04 |
|
Datasheet |
- | Tray | Active | - | 24.5µH | - | - | Surface Mount | 0.421" L x 0.525" W (10.70mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 130°C | - | - |
|
|
PA2364NLPULSE XFMR 7:1 25.2UH |
3,091 | 2.04 |
|
Datasheet |
- | Tray | Active | - | 25.2µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA2455NLPULSE XFMR 24UH |
4,765 | 2.04 |
|
Datasheet |
- | Tray | Active | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA1576NLTPULSE XFMR 230.4UH |
1,551 | 2.04 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 230.4µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
TG10-T1L8LFISO MOD 10BASE-T1 SPE 3KV 8P SMD |
4,461 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10 Base-T | - | - | - | Surface Mount | 0.280" L x 0.230" W (7.11mm x 5.84mm) | 0.158" (4.01mm) | -40°C ~ 105°C | - | - |
|
|
TGAD-260NALFTRISO MOD DC 1C:2C 14VUS 6P SMD T/ |
4,652 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:2CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG23-0356NSRLISO MOD T3 1:2.42C X-TEMP 6P SMD |
4,876 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T3/E3 (Single) | 35µH | - | 1:2.42CT | Surface Mount | 0.320" L x 0.280" W (8.13mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|

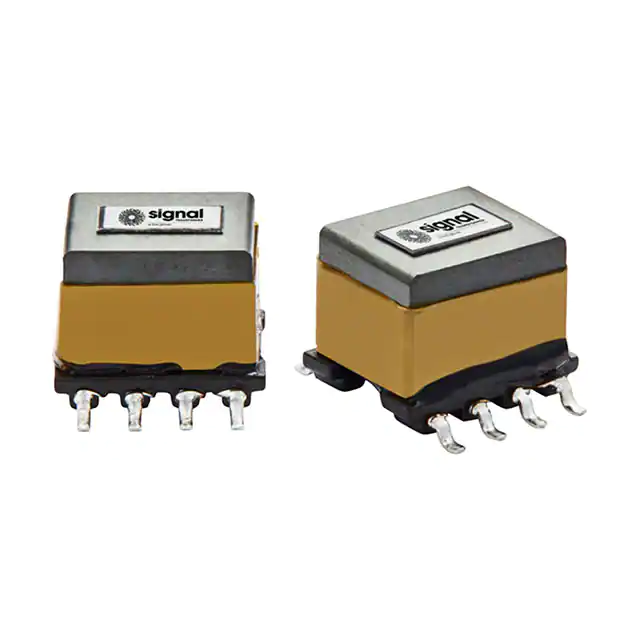

SPOE3-0512POE POWER OVER ETHERNET EP7 CORE |
1,426 | 2.62 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | - | - | - | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|
|
SPOE3-3312POE POWER OVER ETHERNET EP7 CORE |
3,501 | 2.62 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 310µH | - | - | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|

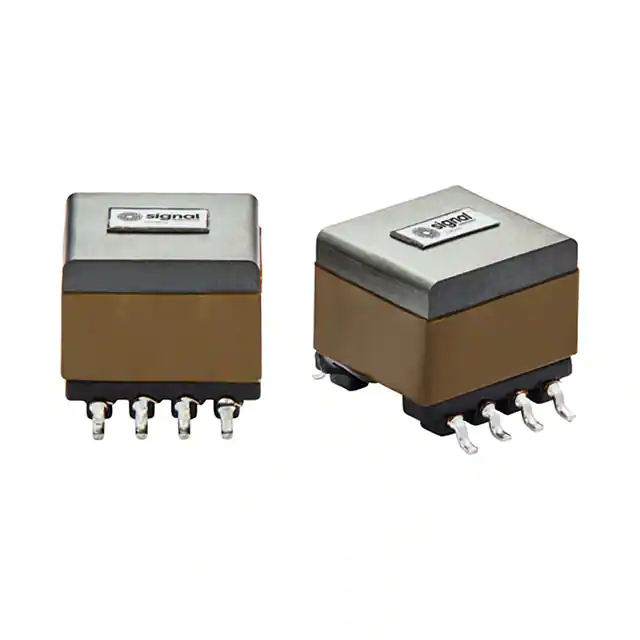

SPOE7-0512POE PWR OVER ETHERNET EP10 CORE |
4,228 | 2.55 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 155µH | - | - | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|
|
PA1370NLPULSE XFMR 20.4UH |
1,638 | 2.05 |
|
Datasheet |
- | Tray | Active | - | 20.4µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
TG110-S177N2LFTRISO MOD 10/100 1.41C:1C 16P SMD |
2,505 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | 1.41CT:1CT Transmitter, 1.41CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG83-2006N2RLTRISO MOD 10BASE-T 1:1/1:2 X-TEMP |
2,610 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH | - | 1:1:1:1:1:1:1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG23-1505NCRLISO MOD T1 1C:2.42C X-TEMP 12P S |
4,539 | 0.00 |
|
- |
- | Tube | Not For New Designs | T1/E1 (Dual) | 1.5mH | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.675" L x 0.455" W (17.15mm x 11.56mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
TS8121A HFMDL SMD 10/100 SINGLE PORT N/A |
1,866 | 2.08 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S177N2LFISO MOD 10/100 1.41C:1C 16P SMD |
2,711 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | 1.41CT:1CT Transmitter, 1.41CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S125N2LFTRISO MOD 10/100 16P SMD T/R |
2,957 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 2CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
