Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGAD-290NARLISO MOD DC 1C:3C 14VUS 6P SMD |
4,768 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:3CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TGAD-260NARLTRISO MOD DC 1C:2C 14VUS 6P SMD T/ |
4,865 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:2CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG110-E050N5LFISO MOD 10/100 X-TEMP 16P SMD |
1,024 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG110-E055N5LFISO MOD 10/100 X-TEMP 16P SMD |
1,524 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG110-S139N2LFTRISO MOD 10/100 1.25C:1C 16P SMD |
3,547 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | 1.25CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S131N2LFTRISO MOD 10/100 1.41C:1C 16P SMD |
4,165 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | 1.41CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
T60403K5032X1145032X114 |
1,185 | 0.00 |
|
- |
- | Box | Active | General Purpose | 950µH | - | 1:1.15 | Surface Mount | 0.551" L x 0.520" W (14.00mm x 13.20mm) | 0.354" (9.00mm) | -40°C ~ 120°C | - | - |
|
|
TGAD-290NALFTRISO MOD DC 1C:3C 14VUS 6P SMD T/ |
4,428 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:3CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PA2417NLTPULSE XFMR 530UH |
1,586 | 2.15 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 530µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
TG110-S177N2RLTRISO MOD 10/100 1.41C:1C 16P SMD |
1,649 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | 1.41CT:1CT Transmitter, 1.41CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TGAD-292NALFISO MOD DC 1C:5C 14VUS 6P SMD |
2,485 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:5CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
T60403K5032X1115032X111 |
2,478 | 0.00 |
|
- |
- | Box | Active | General Purpose | - | - | 1:2 | Surface Mount | 0.551" L x 0.520" W (14.00mm x 13.20mm) | 0.354" (9.00mm) | -40°C ~ 85°C | - | - |
|
|
TD55-1406L1RLISO MOD 10BASE-T 1:1.41 16P THT |
3,938 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 140µH | - | 1:1:1:1.41:1:1.41:1:1.41 | Through Hole | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
|
PA1280NLPULSE XFMR 310UH |
3,255 | 2.15 |
|
Datasheet |
- | Tray | Active | - | 310µH | - | - | Surface Mount | 0.421" L x 0.525" W (10.70mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|

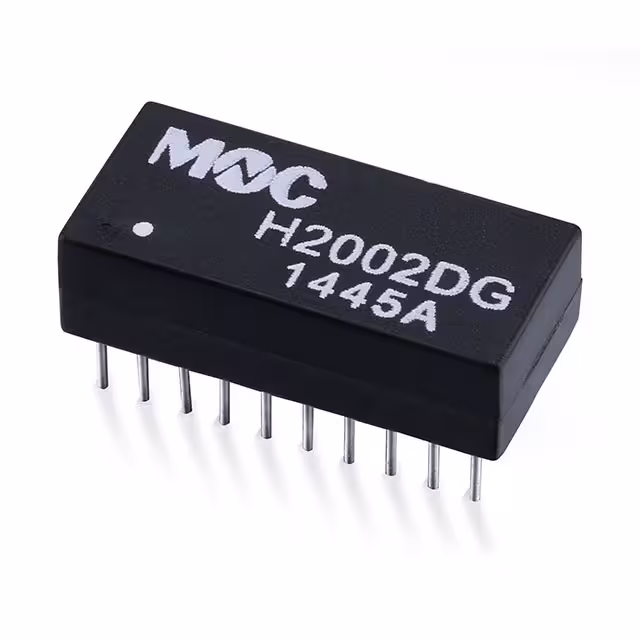

H2002DGDUAL LAN XFMR 10/100 BASE-T |
2,476 | 2.16 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.854" L x 0.413" W (21.70mm x 10.50mm) | 0.266" (6.75mm) | 0°C ~ 70°C | - | - |
|
|
PA2455NLTPULSE XFMR 24UH |
3,463 | 2.11 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA2456NLTPULSE XFMR 24UH |
2,551 | 2.16 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
TG110-S139N2LFISO MOD 10/100 1.25C:1C 16P SMD |
1,367 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | 1.25CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S131N2LFISO MOD 10/100 1.41C:1C 16P SMD |
2,182 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | 1.41CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S125N2RLTRISO MOD 10/100 16P SMD T/R |
1,808 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 2CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
