Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG110-E055N5RLISO MOD 10/100 X-TEMP 16P SMD |
3,894 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
TLA-6T121LFXFRMR FOR AM79C973 CHIPSET 16SOP |
3,836 | 2.17 |
|
Datasheet |
TLA | Tray | Active | LAN | 350µH | - | 1CT:1.41CT, 1CT:1CT | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S139N2RLTRISO MOD 10/100 1.25C:1C 16P SMD |
2,497 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | 1.25CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S131N2RLTRISO MOD 10/100 1.41C:1C 16P SMD |
3,978 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | 1.41CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG01-0456N1LFTRISO MOD T3 2CH 1:1 16P SMD T/R |
3,399 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Dual) | 45µH | - | 1:1, 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG110-RP55N5RLTRISO MOD 10/100 POE 0.35A 16P SMD |
4,061 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TGAD-292NARLISO MOD DC 1C:5C 14VUS 6P SMD |
1,109 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:5CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TGAD-290NARLTRISO MOD DC 1C:3C 14VUS 6P SMD T/ |
4,363 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:3CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TX1315TPULSE XFMR 1CT:1CT 1.2MH |
1,488 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 1.2mH | - | 1CT:1CT | Surface Mount | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PA1721NLTPULSE XFMR 185UH |
1,353 | 2.19 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 185µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA1721NLPULSE XFMR 185UH |
1,301 | 2.22 |
|
Datasheet |
- | Tray | Active | - | 185µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|

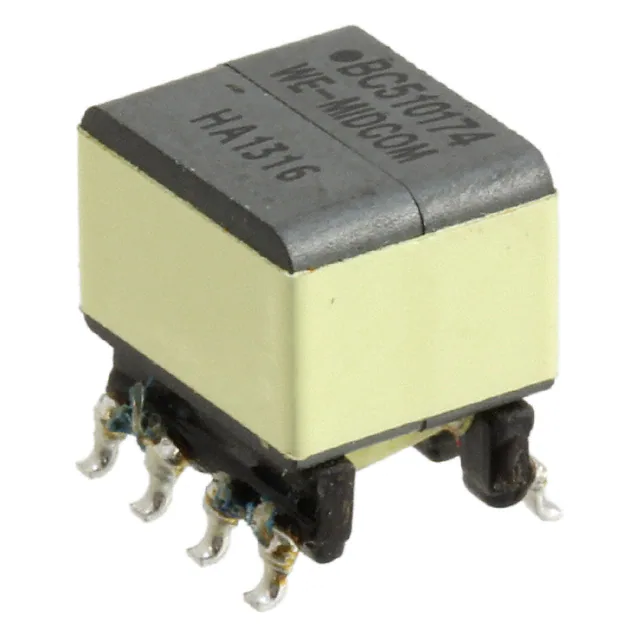

750510174XFRM VX180-IFE6 ISDN DAUGHTERBRD |
1,448 | 0.00 |
|
Datasheet |
MID-DSLIKN | Tape & Reel (TR) | Obsolete | VDSL | 150µH | - | 3.17:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|
|
LG2P109RN LFMDL 1G DIP DUAL PORT N/A |
2,335 | 2.25 |
|
- |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
|
TG57-ABMS3N5LFTRISO MOD BMS AEC-Q 16P SMD T/R |
2,332 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 105°C | - | - |
|
|
TG42-1406P1RLTRISO MOD 10BASE-T 1C:1.41C 16P SM |
3,657 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.088" (2.24mm) | 0°C ~ 70°C | - | - |
|
|
TG74-1406P1RLTRISO MOD 10BASE-T 1C:2C X-TEMP |
2,291 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 25µH | - | 1CT:1CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.088" (2.24mm) | -40°C ~ 85°C | - | - |
|
|
TG110-S139N2RLISO MOD 10/100 1.25C:1C 16P SMD |
3,482 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | 1.25CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG100-MOST15N5LFISO MOD MOST AEC 16P SMD |
1,537 | 0.00 |
|
Datasheet |
- | Tube | Active | General Purpose | 250µH | - | 1CT:1.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 105°C | - | - |
|
|
TG01-0456N1LFISO MOD T3 2CH 1:1 16P SMD |
4,242 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Dual) | 45µH | - | 1:1, 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG110-S131N2RLISO MOD 10/100 1.41C:1C 16P SMD |
3,599 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | 1.41CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
