Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60403D4721X0884721X088 |
2,487 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
T60403D4721X0034721X003 |
2,493 | 0.00 |
|
Datasheet |
- | Box | Active | Gate Drive | 850µH | 250VµS | 1:1 | Through Hole | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.531" (13.50mm) | -25°C ~ 85°C | - | - |
|
|
T60403D4721X0014721X001 |
4,006 | 0.00 |
|
Datasheet |
- | Box | Active | Gate Drive | 28µH | 250VµS | 1:1:1 | Through Hole | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.531" (13.50mm) | -25°C ~ 85°C | - | - |
|
|
T60403D4721X0484721X048 |
3,548 | 0.00 |
|
Datasheet |
- | Box | Active | Gate Drive | 5mH | 600VµS | 1:1 | Through Hole | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.531" (13.50mm) | -40°C ~ 105°C | - | - |
|
|
T60403D4721X0064721X006 |
4,724 | 0.00 |
|
Datasheet |
- | Box | Active | Gate Drive | 3.4mH | 500VµS | 1:1:1 | Through Hole | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.531" (13.50mm) | -25°C ~ 85°C | - | - |
|
|
TG110-AE050N5LFISO MOD 10/100 AEC X-TEMP 16P S |
3,976 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
|
TG57-0406N1LFISO MOD T1 1C:1C 16P SMD |
4,707 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Dual) | 40µH | - | 1:1, 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG74-0406N1LFISO MOD T1 1:1 1:2C 16P SMD |
2,607 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Dual) | 40µH, 19µH | - | 1:1, 1:2CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
TG74-1406P1RLISO MOD 10BASE-T 1C:2C X-TEMP |
1,915 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 25µH | - | 1CT:1CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.088" (2.24mm) | -40°C ~ 85°C | - | - |
|
|
TG01-0456N1RLISO MOD T3 2CH 1:1 16P SMD |
4,756 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T3/E3 (Dual) | 45µH | - | 1:1, 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG42-1406P1RLISO MOD 10BASE-T 1C:1.41C 16P SM |
1,036 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.088" (2.24mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S141N5LFTRISO MOD 10/100 1C:1.41C 16P SMD |
1,912 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

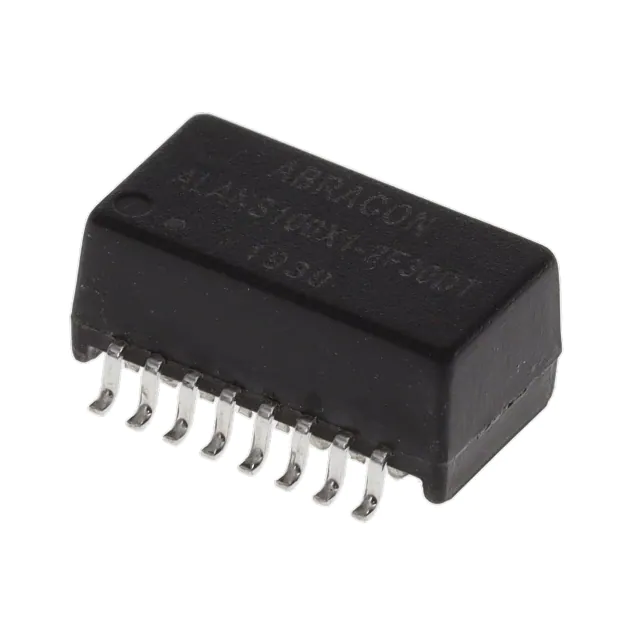

ALANS100X1-2F30DTLAN SGL 100B XFMR&SRDCMC 12PIN |
1,452 | 1.17 |
|
Datasheet |
ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
TLA-3T101LFTRANSFORMR LAN 1:1TR 100UH 16SOP |
4,524 | 2.30 |
|
Datasheet |
TLA | Tray | Active | LAN | 100µH | - | 1:1 | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
|
|
PA2362NLPULSE XFMR 4:1 25.2UH |
1,264 | 2.29 |
|
Datasheet |
- | Tray | Active | - | 25.2µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA2362NLTPULSE XFMR 4:1 25.2UH |
3,748 | 2.38 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 25.2µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PA3171NLTPULSE XFMR 100UH |
1,948 | 2.38 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 100µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA3519NLTPULSE XFMR 73.5UH |
1,496 | 2.38 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 73.5µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
TG110-RPE5N5LFISO MOD 10/100 POE 0.35A X-TEMP |
4,639 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG84-2006P1RLTRISO MOD 10BASE-T 1C:2C LOWPRFL |
1,707 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.088" (2.24mm) | -40°C ~ 85°C | - | - |
