Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T3021NLTTRANSFORMER 1500VRMS DUAL SMD |
4,988 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T3/E3 (Dual) | 40µH | - | 2CT:1 Transmitter, 2CT:1 Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
T1144TPULSE XFMR 1CT:1CT 1CT:2.4CT TX/ |
1,993 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | - | - | 1CT:1CT Transmitter, 1CT:2.4CT Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | - | - | - |
|
|
TG111-S12NYNRLISO MOD 1G POE 0.35A MINI 24P SM |
2,000 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
G2PM109RNS2 LFMDL 1G DIP DUAL PORT POE+ 30W |
3,023 | 2.87 |
|
- |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
TGSAD-290V6LFTRISO MOD DC 1C:3C SUPP 2.5KV SMD |
4,114 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:3CT | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | -40°C ~ 85°C | - | - |
|
|
E2458NLTXFRMR ISOL 10BASE-T 1:1.41 SMD |
2,504 | 2.87 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
|
TG01-FC03N1LFTRISO MOD FBR 2CH 3.75UH 16P SMD T |
3,178 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 3.75µH | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | - | - | - |
|
|
TG83-1505NULFISO MOD T1 8CH 1:2 X-TEMP 32P SM |
3,379 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.5mH | - | 1:1 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|

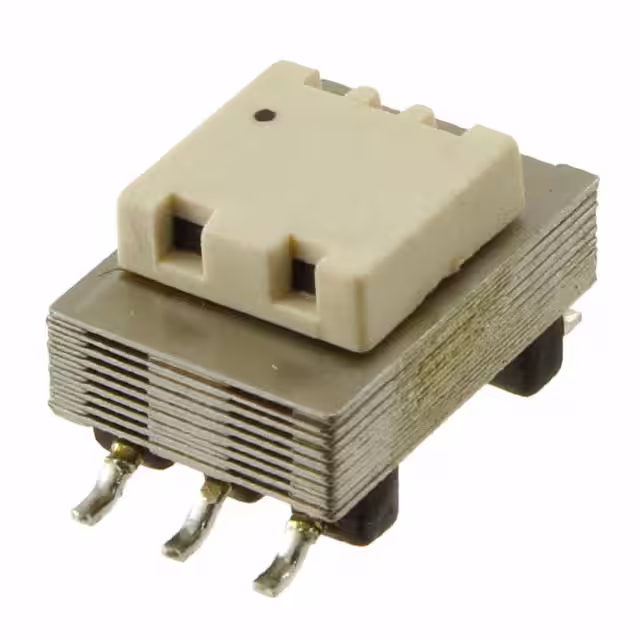

7500718424ANALOG MODEM TRANSFORMER WE-AMT |
2,360 | 0.00 |
|
Datasheet |
MID-AMT | Tape & Reel (TR) | Obsolete | Data/Voice Coupling | 1.5H | - | 1:1 | Surface Mount | 0.360" L x 0.520" W (9.14mm x 13.21mm) | 0.310" (7.87mm) | 0°C ~ 70°C | - | - |
|
IF-18-0269-NII1 PULSE TRANSFORMER THT SPEZ |
4,663 | 2.88 |
|
- |
IF | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG110-3506N6LFTRISO MOD 10/100 POE 0.35A 16P SMD |
3,237 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.280" W (14.73mm x 7.11mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
HX1341NLTMDL SIN 100D 1:1 SMT TR |
1,194 | 2.90 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
TG110-3506N6RLISO MOD 10/100 POE 0.35A 16P SMD |
3,261 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.280" W (14.73mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
BX6153NLTTRANSFORMER 7UH 1:1 4KV SMT |
3,725 | 2.91 |
|
Datasheet |
BX615xNL | Tape & Reel (TR) | Active | - | 7µH | - | 1:1 | Surface Mount | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|
|
BX6152NLTTRANSFORMER 7UH 1:1:2 3KV SMT |
3,843 | 2.91 |
|
Datasheet |
BX615xNL | Tape & Reel (TR) | Active | - | 7µH | - | 1:1:2 | Surface Mount | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|

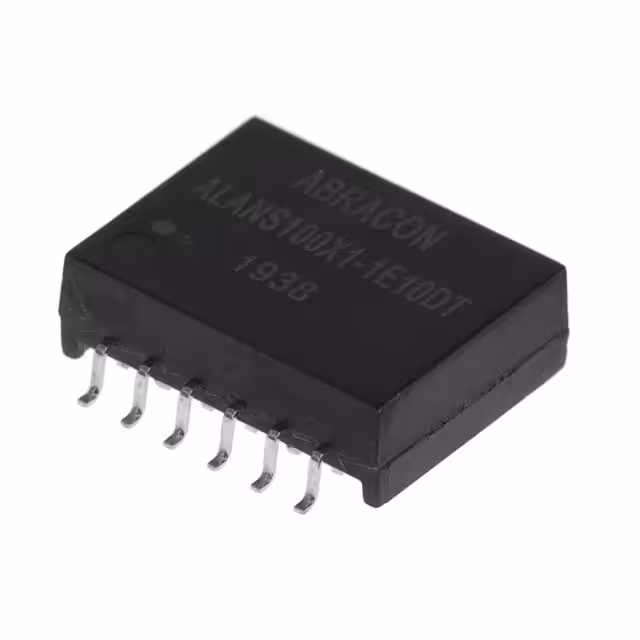

ALANS100X1-1E10DTLAN SGL 100B XFMR&CMC 12PIN |
3,038 | 1.58 |
|
Datasheet |
ALANS100X1-1 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 85°C | - | - |
|
|
ALANS100X1-1E30DTLAN SGL 100B XFMR&SRDCMC 12PIN |
2,662 | 1.58 |
|
Datasheet |
ALANS100X1-1 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 85°C | - | - |
|
|
TG01-FC03N1LFISO MOD FBR 2CH 3.75UH 16P SMD |
3,198 | 0.00 |
|
Datasheet |
- | Tube | Active | General Purpose | 3.75µH | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | - | - | - |
|
|
S558-5999B4710/100 BASE-T LAN MAG QUAD TRANS |
3,006 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.476" W (27.94mm x 12.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
S553-6500-D3-FMODULE XFRMR LAN T1/E1 OCTAL SMD |
4,434 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Octal) | 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.045" L x 0.300" W (26.54mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
