Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG22-3506NLRLISO MOD 10/100 1C:1C 16P SMD |
2,501 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.370" W (25.40mm x 9.40mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|
|
TG110-3506N6RLTRISO MOD 10/100 POE 0.35A 16P SMD |
3,207 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.280" W (14.73mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PE-65363NLXFRMR T1/CEPT/ISDN-PRI 1:4CT T/H |
3,534 | 3.02 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 500µH | - | 1:4CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PE-65415NLXFRMR T1/CEPT/ISDN-PRI 1CT:2CT |
3,047 | 5.20 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
B2064NLTXFRMR FOR ALCATEL ADSL CHIPSET |
3,637 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | ADSL | 480µH | - | 1:1 | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
HCTSM80803AAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
4,043 | 1.73 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 8:3 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
HCTSM80201AAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
4,304 | 1.73 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 2:1 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
HX2260NLXFRMR MODUL 1PORT POE 1:1 10/100 |
4,393 | 3.03 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
TG01-1505NULFTRISO MOD T1 8CH 32P SMD T/R |
4,054 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.5mH | - | 1:1 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
AVP6014SMDL 2.5G 1 PORT 4PAIR POE 60W |
2,091 | 3.04 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
H5004ENLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,292 | 6.97 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
TG01-FC03N1RLISO MOD FBR 2CH 3.75UH 16P SMD |
3,188 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | General Purpose | 3.75µH | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | - | - | - |
|
|
TG74-0456N1LFISO MOD T1 1:1 1:2C X-TEMP 16P S |
3,066 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Dual) | 45µH, 35µH | - | 1:1, 1:2CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG110-S101N6LFISO MOD 10/100 16P SMD |
4,766 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.280" W (14.73mm x 7.11mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

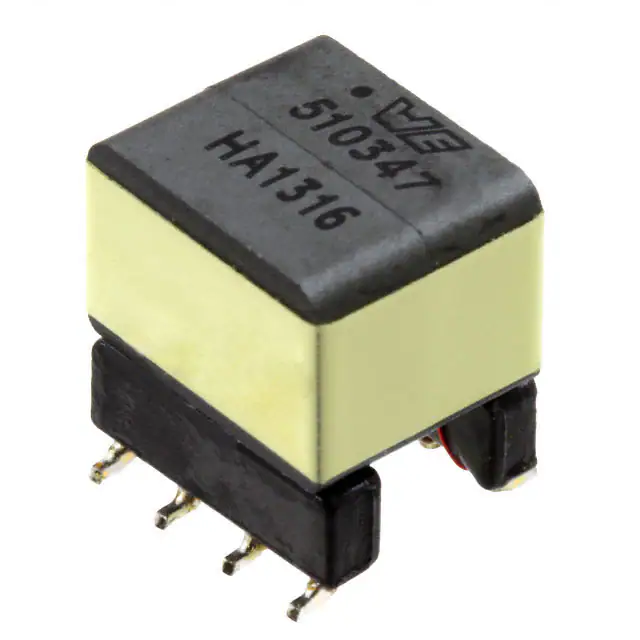

750510347VDSL XFRM WE-DSL IKANOS BOARD |
1,630 | 3.75 |
|
Datasheet |
MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 400µH | - | 1:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.430" (10.92mm) | -40°C ~ 85°C | - | - |
|
750316094GATE DRIVE TRANSFORMER |
4,855 | 2.34 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | 1:1 | Surface Mount | - | 0.212" (5.38mm) | - | - | - |
|
|
H1119NLTXFRMR MODUL 1PORT 1:1.141 10/100 |
2,385 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1.141 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.395" W (25.40mm x 10.03mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H0056NLTXFRMR MODULE 1PORT 1:1 10/100 |
4,362 | 0.00 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 300µH | - | 1:1 | Surface Mount | 0.504" L x 0.280" W (12.80mm x 7.11mm) | 0.088" (2.24mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S050J2RLISO MOD 10/100 LOWPRFL 16P SMD |
1,654 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.148" (3.75mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S055J2RLISO MOD 10/100 LOWPRFL 16P SMD |
2,184 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.148" (3.75mm) | 0°C ~ 70°C | - | - |
