Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG24-S001NCRLISO MOD T1 DUAL 1C:1.36C X-TEMP |
1,872 | 0.00 |
|
- |
- | Tube | Not For New Designs | T1/E1 (Dual) | 1.5mH | - | 1CT:1.36CT | Surface Mount | 0.675" L x 0.455" W (17.15mm x 11.56mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
QVP2014MDL 5G SINGLE PORT N/A |
4,045 | 2.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
|
QVP2014RMMDL 5G SINGLE PORT N/A |
1,610 | 2.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
TG83-1505NULFTRISO MOD T1 8CH 1:2 X-TEMP 32P SM |
2,917 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.5mH | - | 1:1 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
E2467NLXFRMR ISOL 10BASE-T 1:2 SMD |
4,753 | 2.97 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 20µH, 100µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | - | - | - |
|
ALAN-102PULSE XFMR 1CT:1CT 350UH |
2,013 | 3.04 |
|
Datasheet |
ALAN-102 | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
|
|
GS6014 LFMDL 1G 2 PORT 4PAIR POE 60W |
2,809 | 2.99 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S012NZLFISO MOD 1G POE 0.35A 24P SMD |
3,006 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
HX1341NLMDL SIN 100D 1:1 SMT TU |
1,601 | 2.99 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|

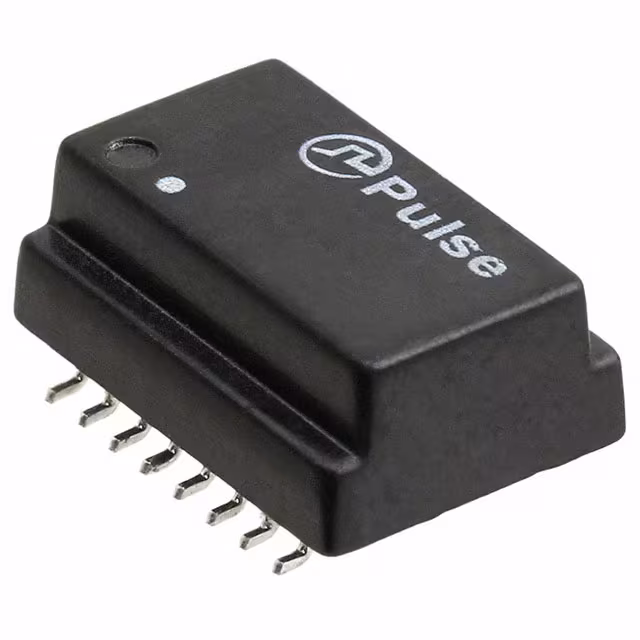

H1100FNLPULSE XFMR 2CT:1CT TX 1CT:1CT RX |
1,991 | 2.99 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 350µH | - | 2CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
H1100FNLTMDL SIN 100D 2:1 SMT TU |
4,150 | 2.99 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 2:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S050J2RLTRISO MOD 10/100 LOWPRFL 16P SMD T |
1,780 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.148" (3.75mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S055J2RLTRISO MOD 10/100 LOWPRFL 16P SMD T |
3,451 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.148" (3.75mm) | 0°C ~ 70°C | - | - |
|
|
24SH10410 HFMDL LAN 1GBT POE+ 30W SMD |
2,915 | 3.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG1G-E010NZLFISO MOD 1G X-TEMP 24P SMD |
3,221 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
LG2P109NAM LFMDL 1G DIP DUAL PORT N/A |
2,363 | 3.00 |
|
- |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | -40°C ~ 85°C | - | - |
|
|
AVP9014RMMDL 2.5G 1 PORT 4PAIR POE 90W |
1,151 | 3.01 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG01-FC03N1RLTRISO MOD FBR 2CH 3.75UH 16P SMD T |
1,668 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | General Purpose | 3.75µH | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | - | - | - |
|
|
TG74-0456N1LFTRISO MOD T1 1:1 1:2C X-TEMP 16P S |
3,887 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Dual) | 45µH, 35µH | - | 1:1, 1:2CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TGSAD-292V6LFISO MOD DC 1C:5C SUPP 2.5KV SMD |
1,432 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 389µH | - | 1CT:5CT | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | -40°C ~ 85°C | - | - |
